RSE
1b
(not included)
4
1
(A)
6
(not included)
2
3
(A)
2
1

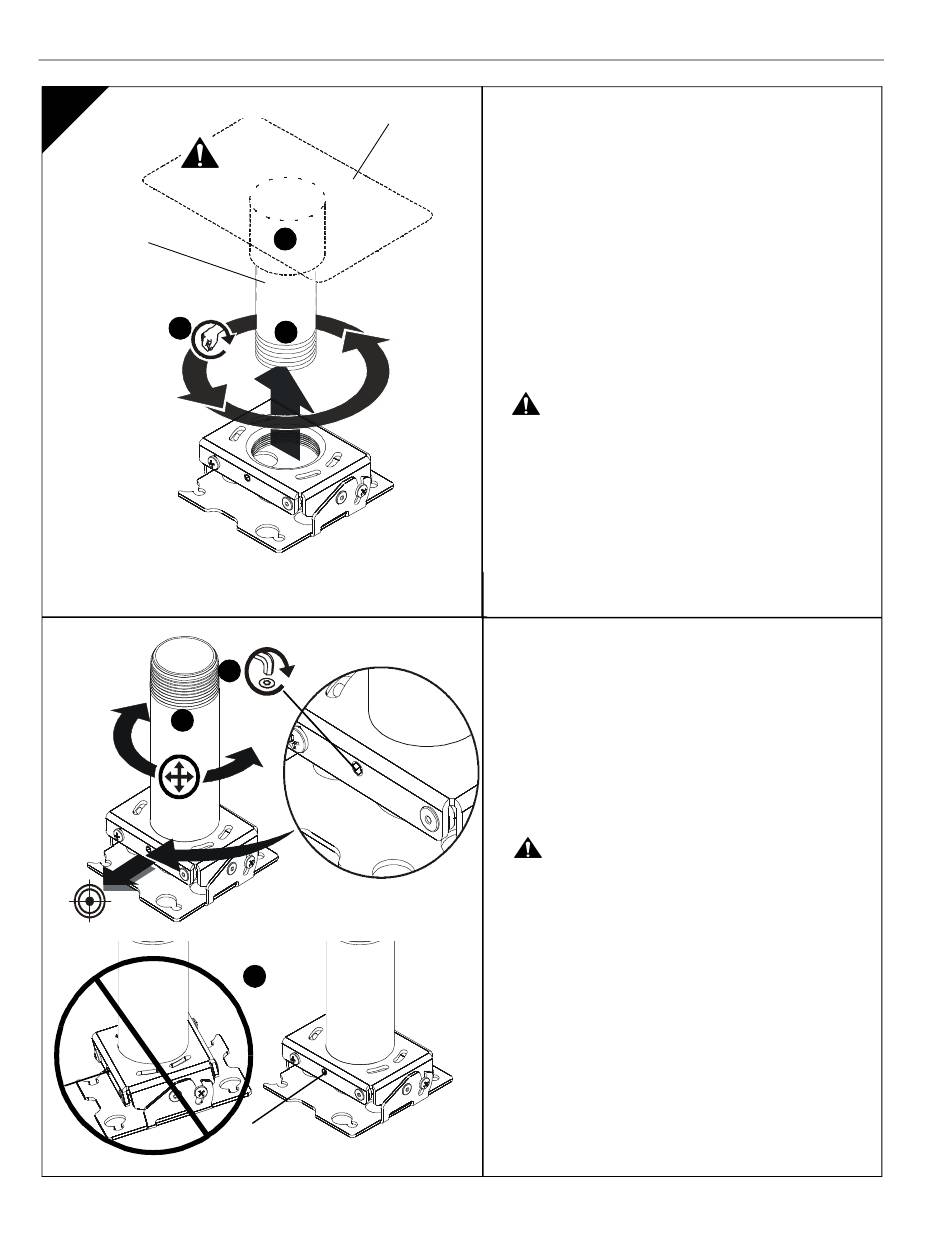

RSE INSTALLATION
Threaded Pipe Installation
NOTE:
CPA adapter must be removed prior to
installing RSE to threaded pipe. See Section
1a for details.
1.
Carefully determine required mounting location.
IMPORTANT ! : This will require knowing the
lens to screen distance. See projector
specifications for details on determining this
distance.
2.
Install 1-1/2" NPT or NPSM steel or aluminum
threaded extension column (not included) into
threaded collar until tight, with a minimum of four
threads engaged.
WARNING:
IMPROPER INSTALLATION CAN
RESULT IN SERIOUS PERSONAL INJURY OR
DAMAGE TO EQUIPMENT! Structural members
MUST be capable of supporting five times the
combined weight of all equipment being mounted.
3.
Align RSE with end of NPT pipe.
4.
Thread RSE up onto pipe by turning counter-
clockwise until hand tight.
Rough Alignment of RSE
1.
Turn RSE clockwise or counter-clockwise until front
of mount is facing target.
IMPORTANT ! : When RSE is properly
positioned, the set screw access hole should be
pointing directly at target.
(see bottom detail in figure at left)
2.
Secure RSE to pipe by turning set screw with a
5/32" hex key until tight.
CAUTION:
DO NOT OVERTIGHTEN!
Overtightening of set screw can damage threads on
pipe.
Installation Instructions
