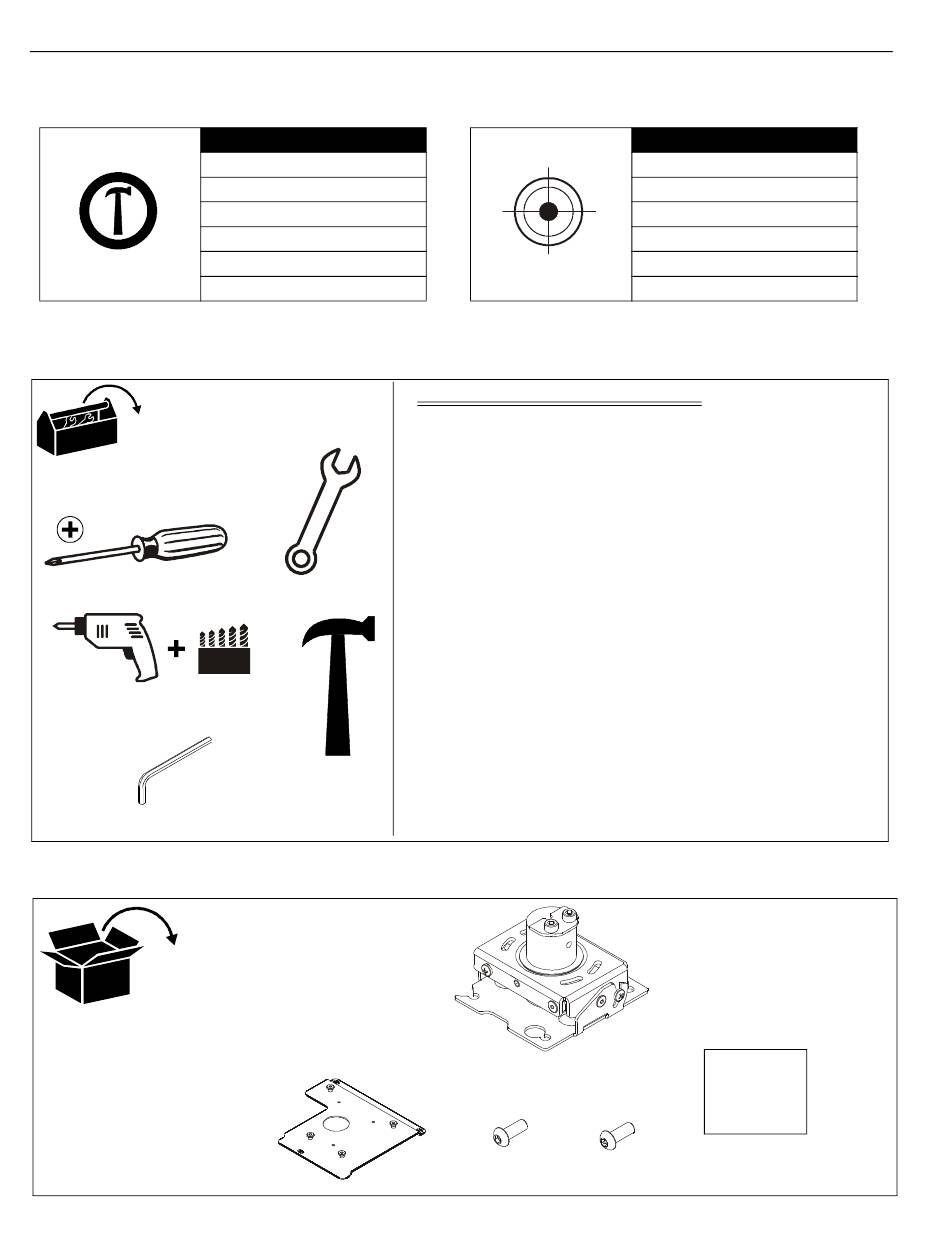

TOOLS REQUIRED FOR INSTALLATION
#2
3/32" (wood)
1/4" (concrete)
PARTS
B (1)
Example Only
(Interface bracket
varies dependent
on projector model)
4
Hardware required - not included
(dependent on installation method)
1.
Install to threaded extension column
•
1-1/2" NPT or NPSM steel or aluminum threaded
extension column rated for 50 lbs or greater
2.
Install to wood ceiling joists
7/16"
•
#10 x 3" Phillips head wood screws (Qty. 4)
•
#10 washers (Qty. 4)
3.
Install to concrete
•
3/8" x 2-1/4" Grade 2 concrete anchors (Qty. 4)
•
#10 washers (Qty. 4)
•
#10 x 3" Phillips head wood screws (Qty. 4)
4.
Install to threaded rod
•
#10-24 steel threaded rods (Qty. 4)
•
#10-24 channel nuts (Qty. 4)
•
#10-24 jam nuts (Qty. 8)
•
#10 washers (Qty. 8)
A (1)
[RSE]
C (2)
M16x6mm
Installation Instructions
Target of Projector
Punto de enfoque del proyector
Ziel des Projektors
Mira do projector
Punto di proiezione
Doel van de projector
Cible du projecteur
All-Points
Security
Kit
D (2)
M16x6mm (security)
(Optional)
