Installation Instructions
INSTALLATION
1c
1
X4
2
X4
45mm
3
(1-3/4")
4

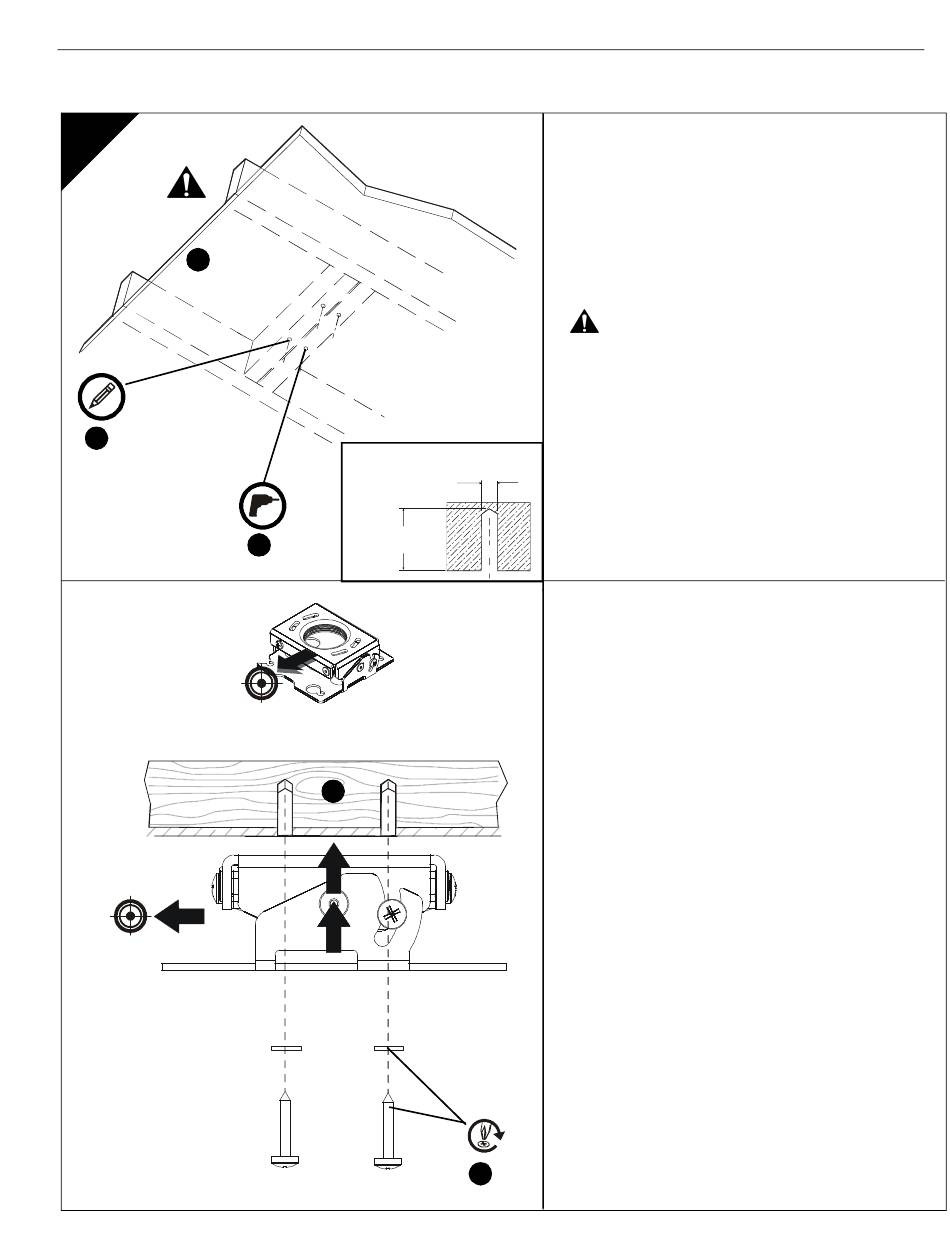

Wood Stud Installation
NOTE:
CPA adapter must be removed prior to
installing RSE to wood studs. See Section 1a
for details.
1.
Carefully determine required mounting location.
IMPORTANT ! : This will require knowing the lens
to screen distance. See projector specifications for
details on determining this distance.
WARNING:
RESULT IN SERIOUS PERSONAL INJURY OR
DAMAGE TO EQUIPMENT! Structural members
MUST be capable of supporting five times the
combined weight of all equipment being mounted.
IMPORTANT ! :
Ø 2.5mm
mounted to double 2" x 4" wood stud cross bracing
(Ø 3/32")
(1-1/2" on center) between two ceiling joists.
2.
Using the RSE as a guide, mark four mounting hole
locations with a pencil or similar tool. Hole locations
must be centered on 2" x 4" cross braces.
3.
Drill four 3/32" (2.5mm) dia. pilot holes to a depth of
1-3/4" (45mm) deep.
4.
Align four mounting holes in RSE with four pilot
holes.
IMPORTANT ! : Make sure mount is properly
oriented towards target before securing to
structure.
5.
Secure RSE to structure using four #10 flat washers
and four #10 x 3" Phillips head wood screws (not
included).
(A)
x 4
5
IMPROPER INSTALLATION CAN
The RSE mounts are designed to be
RSE
7
