Installation Instructions
1
4
CMA pipe
(not included)
2
1a
3
(C) or (D)
adapter
plate
hole on side
of adapter plate
CPA adapter
2
CPA adapter
1
3
RSE INSTALLATION

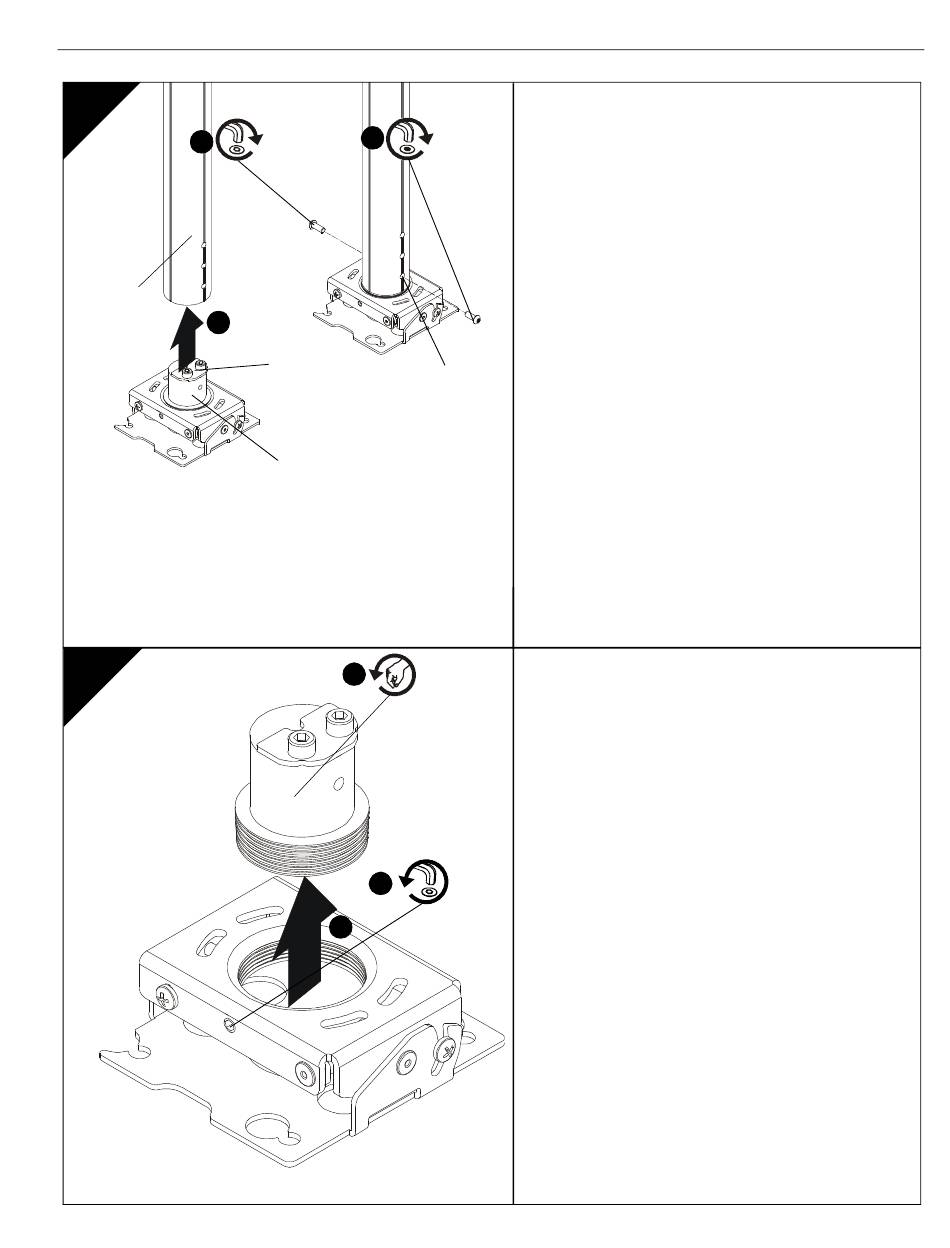

CPA Pipe Installation
(C) or (D)
1.
Carefully determine required mounting location.
IMPORTANT ! : This will require knowing the
lens to screen distance. See projector
specifications for details on determining this
distance.
2.
Making sure holes are aligned on RSE's CPA
adapter and CPA column (not included), lift RSE
into bottom opening of CPA column. (See Figure 1)
3.
Install either one M6x16 button head screw (C) or
security screw (D) into hole on side of CPA pipe
where the adapter plate on CPA adapter is located.
4.
On the opposite side of CPA pipe, use the other
M6x16 button head screw (C) or security screw (D)
to secure RSE (A) to CPA column.
5.
Proceed to "Projector Installation" Section.
CPA Adapter Removal
NOTE:
If installing RSE to anything other than a CPA
column, the CPA adapter portion must be
removed from RSE mount prior to installation.
1.
Loosen set screw holding CPA adapter to RSE
mount.
2.
Turn CPA adapter counter-clockwise until threads
are no longer engaged with RSE.
3.
Remove CPA adapter from RSE.
RSE
5
