3.8 Mounting the discharge gas temperature sensor
After mounting new components such as discharge gas
temperature sensor, pressure transmitter, injection
nozzle or injection valve:
3.9 Mounting the oil monitoring
Information
A prerequisite for mounting the oil monitoring is
a bearing cover with the respective connection
(M20x1.5).
Information
For further details, see Technical Information
KT-180.
8

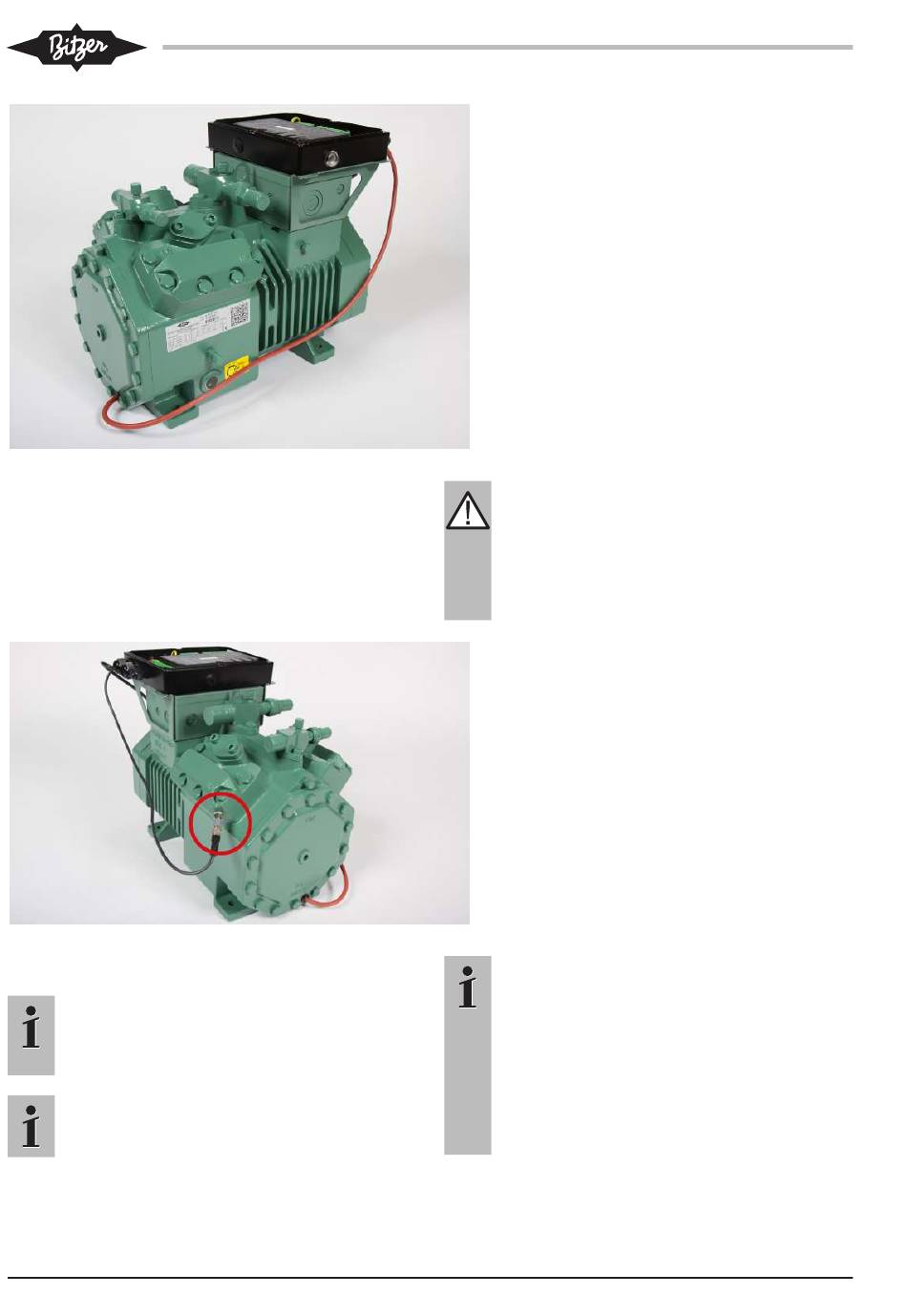

• Guide the oil heater cable to the compressor
module as shown in the figure.
WARNING
Serious injuries are possible. New component
may suddenly become detached.
Check the thread.
Carefully screw in the new component. Observe
the tightening torques!
Perform a tightness test before commissioning!
• Remove the sealing plug from the connector
on the cylinder head marked by a circle and
clean the threaded bore.
• Then screw the discharge gas temperature
sensor in (tightening torque 35-40 Nm) and
tighten the connector by hand.
Information
Delivery in a pre-setup state:
If the prism unit of the oil monitoring has been
ordered pre-assembled, the compressor will
have already been tested as a whole in the fact-
ory for pressure strength and tightness. In this
case, it will only be necessary to screw on the
opto-electronic unit and to connect it electrically.
Subsequent tightness testing will not be re-
quired in this case.
