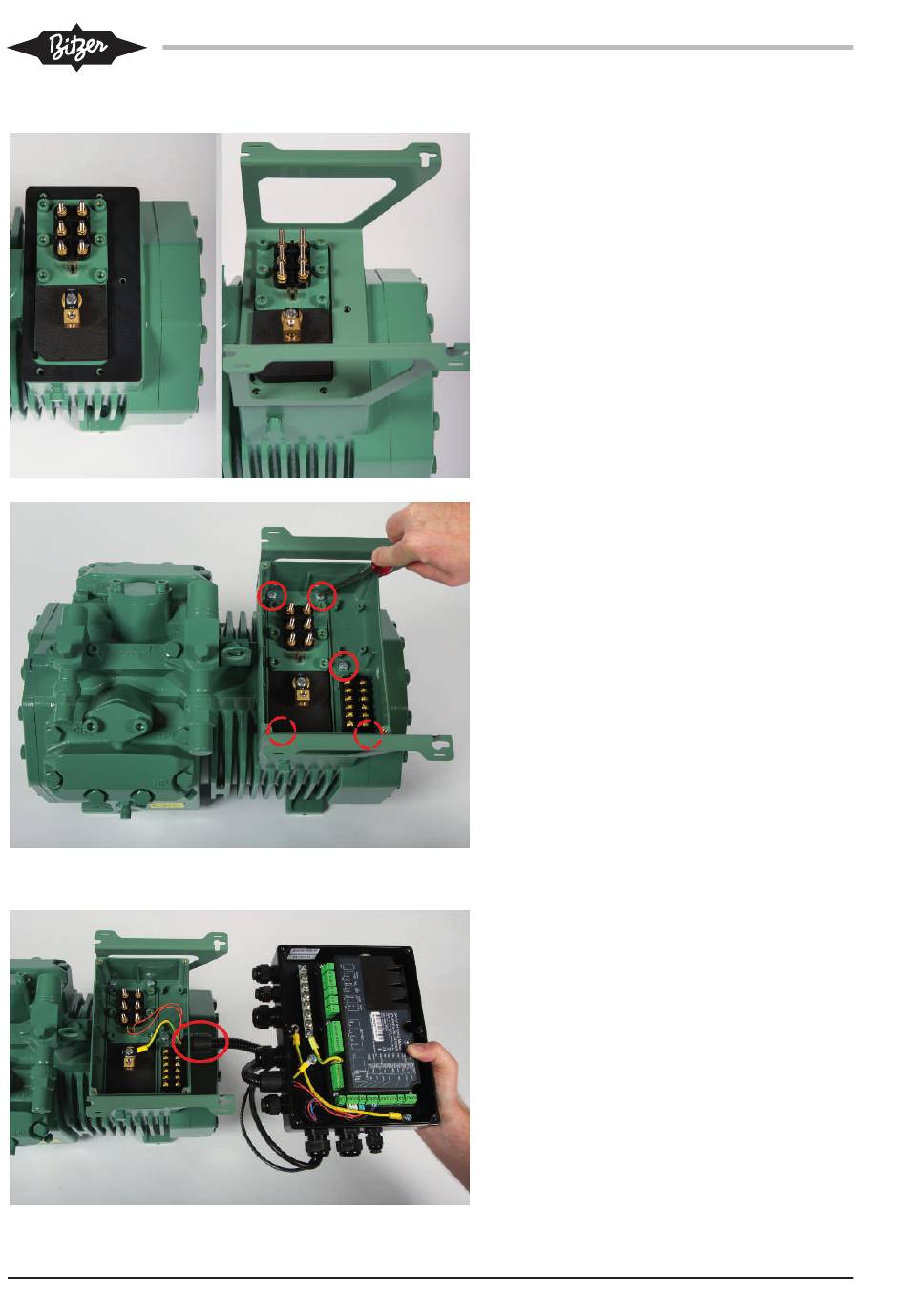

3.4 Mounting the fixture of the compressor module
3.5 Fastening the cable conduit to the terminal box
6
• Position the seal (left figure), then put the fix-
ture on top (right figure).
• Then put the compressor terminal box onto
the fixture and fasten everything to the com-
pressor using the 5 screws in the terminal
box.
• Fasten the cable conduit pre-mounted to the
compressor module to the open (M16) cable
bushing of the compressor terminal box and
guide the motor PTC cable and the protective
earth conductor into the terminal box.
• Connect the orange motor PTC cable of the
compressor module to the terminal plate of
the compressor.
• Screw the protective earth conductor of the
compressor module onto the earth bolts in the
terminal box.
