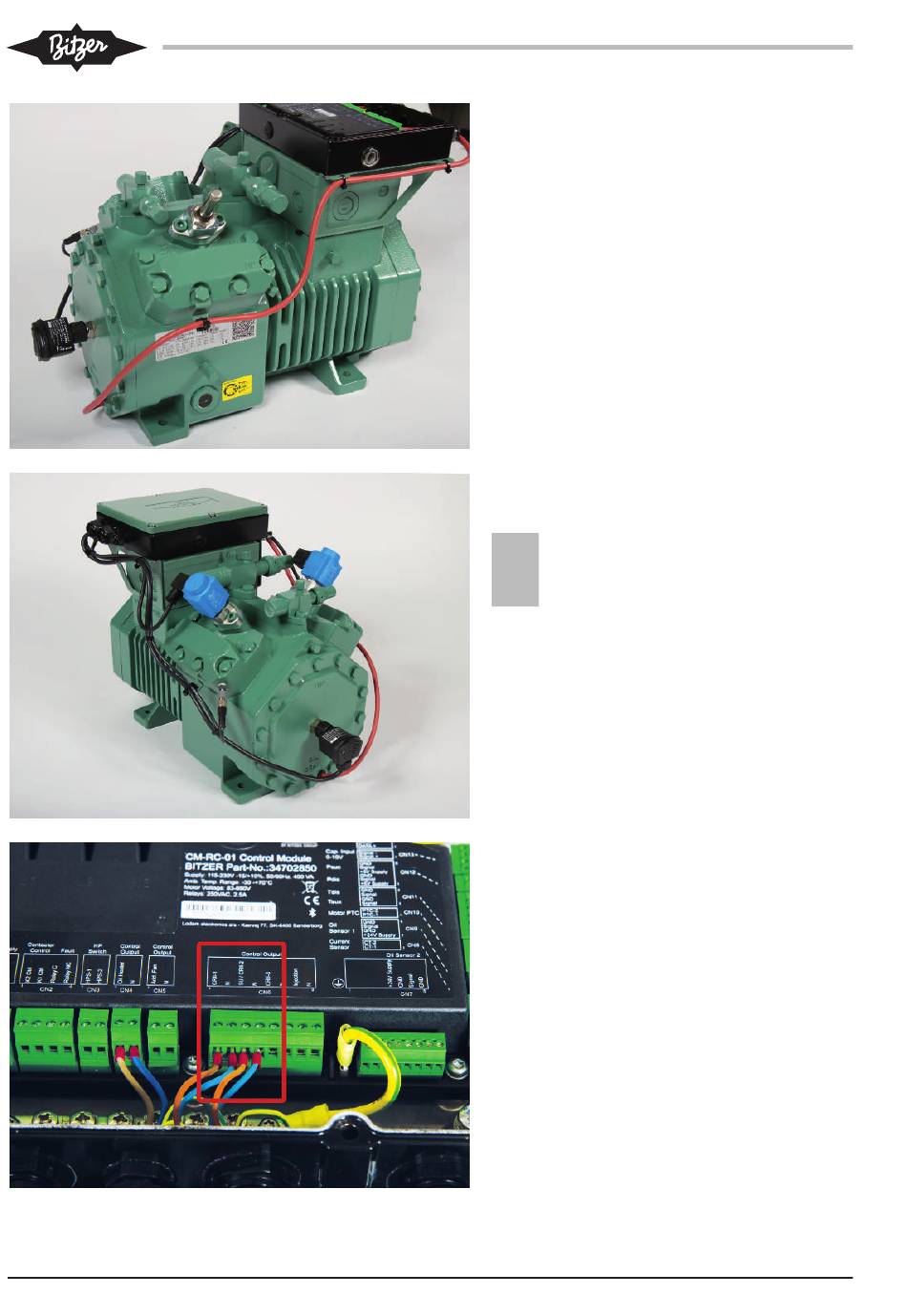

• Remove the oval flange and seal from the
CRII/SU cylinder head and clean the sealing
surface.
• Apply a new seal, paying attention to the
guide pin positions!
• Use new screws to fasten the solenoid valve.
Alternately tighten the screws (tightening
torque 80 Nm).
• Press the solenoid coil onto the armature until
it engages.
NOTICE
!
!
Risk of compressor damage!
Use only suitable original solenoid coils!
• Insert the electric connector of the device and
screw it down (tightening torque 5 Nm).
• Shorten the cables as needed, pass them
through the cable glands on the compressor
module into the module housing and connect
them to the CN6 terminal strip.
