Following this, any optional extension kits can be
mounted (see chapter Mounting the optional CM-RC-01
extension kits, page 11).
3.10 Further electrical connections on the CM-RC-01
• Voltage supply of the compressor module on ter-
minal strip CN1 (115 .. 230 V +10%/-15%, 50/60 Hz
– Terminal 1: L
– Terminal 2: N
3.12 Mounting the cable holders and laying the cables
10
• Command for compressor start (release signal from
system controller).
• Optionally: Analogue signal for capacity control from
the system controller (0 .. 10 V).
Schematic wiring diagram and further information, see
Technical Information KT-230.

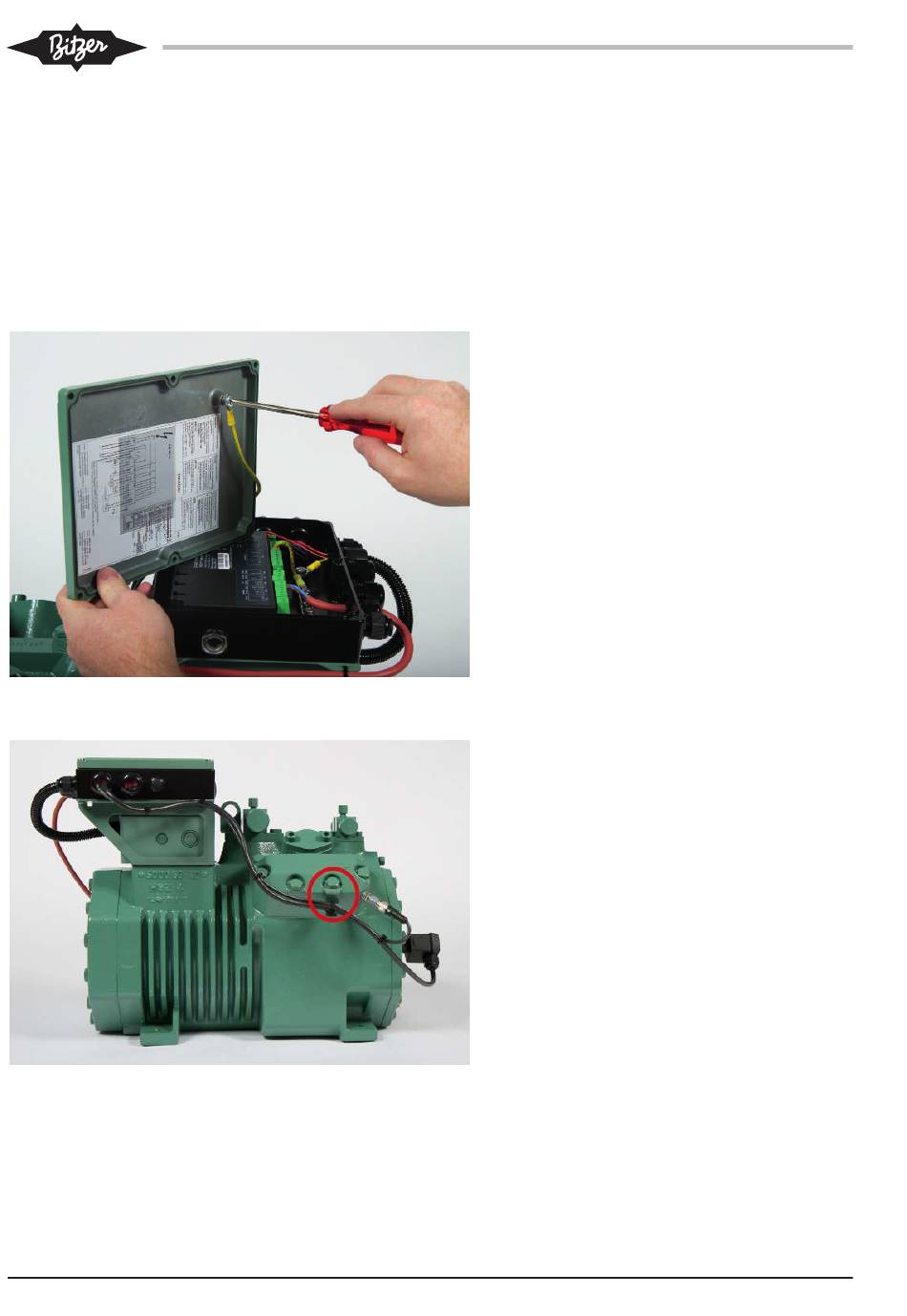

3.11 Closing the module housing
• Screw the protective earth conductor on the
cover contained in the kit.
• Put the cover on the compressor module
housing and fasten it using the 6 enclosed
screws.
• Mount one cable holder each on the outside
of the cylinder head (see red circle).
• To this end, loosen the corresponding screws
on the cylinder head, insert the screws again
with cable holders and tighten them (tighten-
ing torque 80 Nm).
• Fasten the plastic clip to the cable holder and
insert a cable tie.
