If no additional extension kits are mounted:
• Proceed with the other electrical connections on the
CM-RC-01 (see chapter Further electrical connec-
tions on the CM-RC-01, page 10).
• Mount the cable holders, lay the cables and close
the cable ties (see chapter Mounting the cable hold-
ers and laying the cables, page 10).
• Screw the protective earth conductor onto the ter-
minal box cover and attach the cover to the module
housing (see chapter Closing the module housing,
page 10).
5 Communication via BEST SOFTWARE
• PC / mobile device
– equipped with the operating system Windows 7 or
newer
– with Bluetooth interface or USB port
– with BEST SOFTWARE installed
The BEST SOFTWARE can be downloaded for
free from the BITZER website (www.bitzer.de).
• For communication via the USB port:
– Plug the BEST interface converter into the com-
pressor module (CN14) and the PC / mobile
device.
Setting up communication
• Switch the PC / mobile device on and start the
BEST SOFTWARE (1).
• Click the N button (2).
EW
KW-233-1
• Pass the cables through the cable glands on
the compressor module into the module hous-
ing and connect them to the CN5 terminal
strip.
• Select IQ MODULE CM-RC-01 (3).
• Click the C button (4).
ONNECT
The following selection appears: B
or B .
VERTER LUETOOTH
• If you select B
EST INTERFACE CONVERTER
Click the C button.
ONNECT
The compressor module is now connected to the
PC / mobile device.

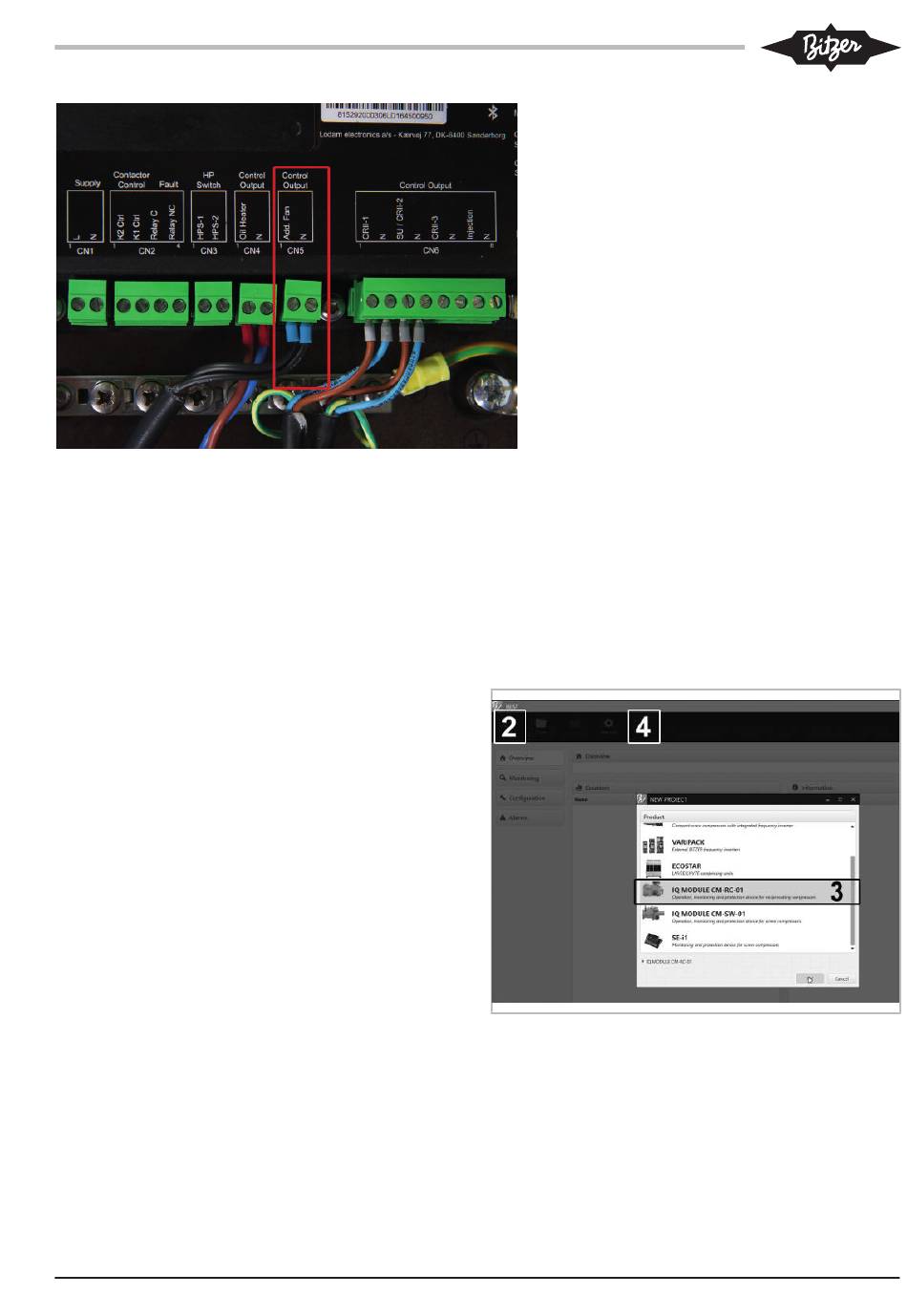

Fig. 2: Connecting the CM-RC-01 to the BEST SOFTWARE
• Select FIRMWARE UPDATE (1) and B
(see figure 3, page 16).
• Browse the folder (...\BEST\Firmware\CM-RC-01) to
find new firmware.
• Start firmware update and wait until successful up-
date is confirmed. Click OK to confirm (3).
-
EST INTERFACE CON
:
(2)
ROWSE
