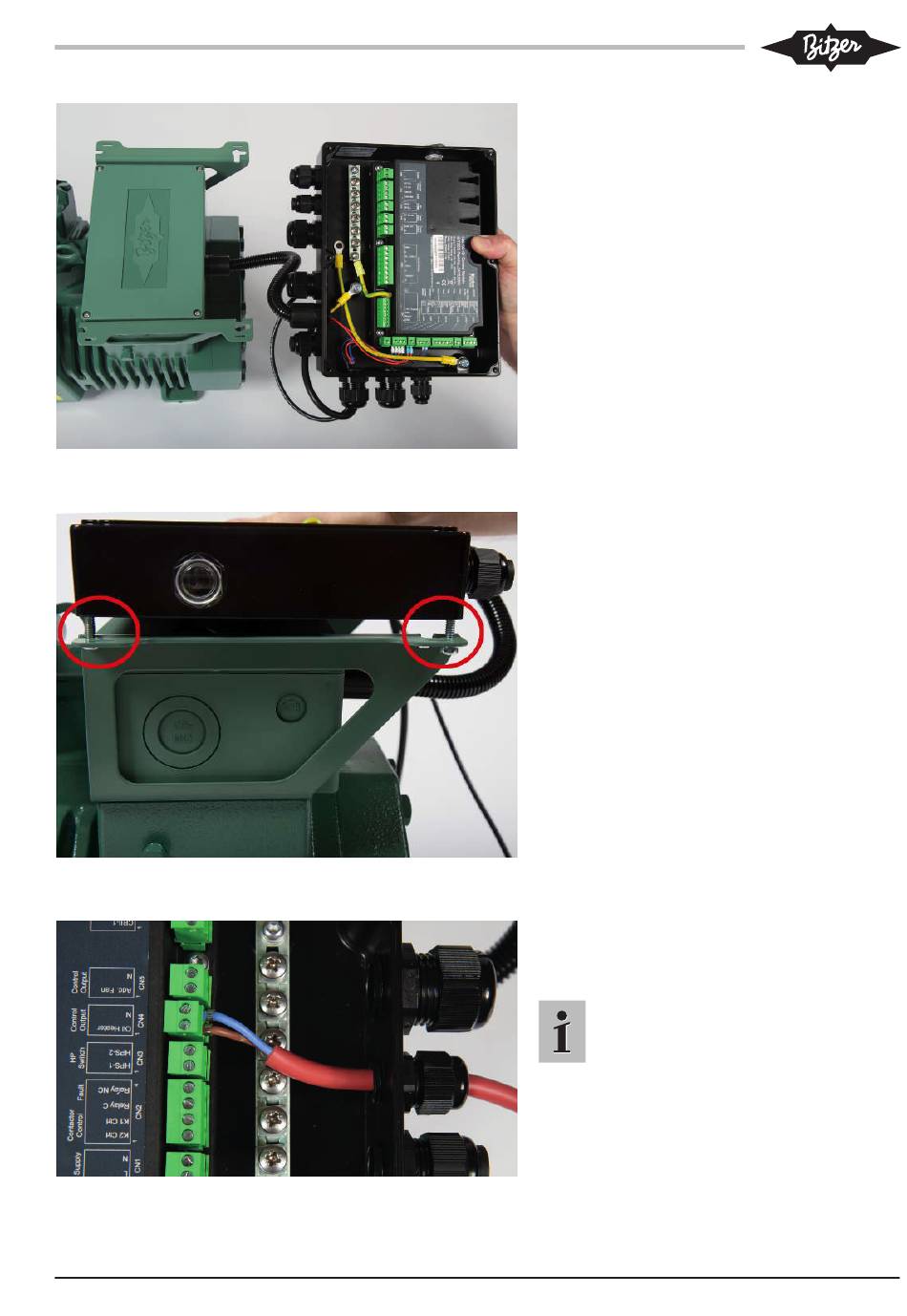

3.6 Screwing the compressor module onto the fixture
3.7 Connecting the oil heater
KW-233-1
• Close the terminal box and screw down the
cover.
• Position the compressor module on the fixture
in such a way that the cable bushings point
towards the motor cover (see figure).
• Screw the compressor module to the fixture
using the 4 enclosed screws. To this end, put
the screws into the guide rails from below.
• Put the oil heater cable through a screwed
cable gland on the compressor module and
connect it to the CN4 terminal strip.
Information
For oil heater mounting, see Technical
Information KT-150.
