Pump Overview
The perfect choice for all types of pools, the VS2 Variable
Speed Pump was specifically designed to be your best
choice for a variety of in-ground pools.
Thick walled body parts, a heavy duty TEFC motor,
and highly engineered hydraulics make this rugged and
tested design perfect for any pool, spa, water feature,
or fountain.
All pumps from Pentair Aquatic Systems incorporate
innovative hydraulic engineering that has been refined for
over 40 years. Compact, rugged, and easy to maintain,
the VS2 pump will deliver years of reliable service.

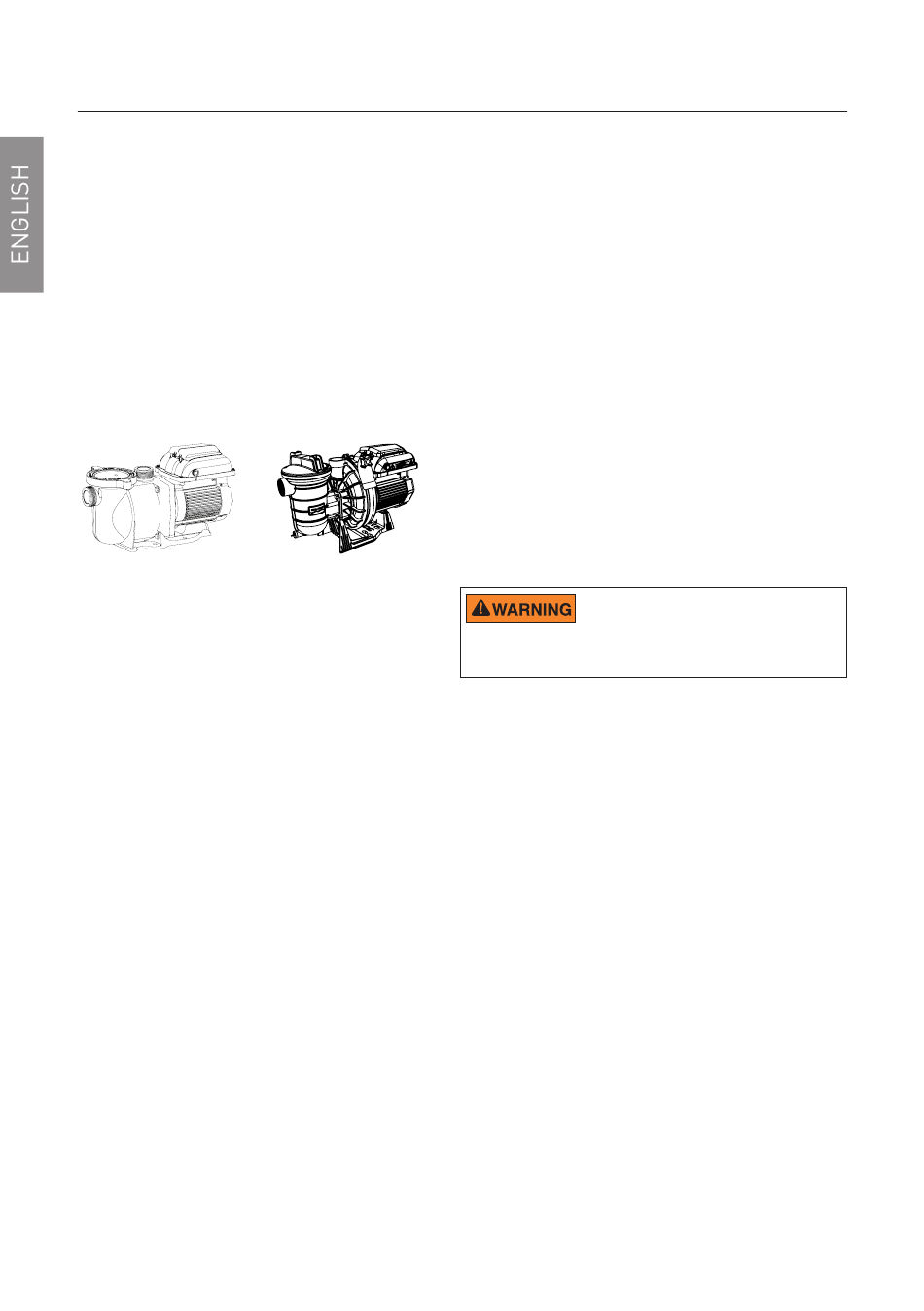

SuperMax VS2 Pump
®
P/N: S5P1R-VS2
General Features
• Extremely quiet operation
• Unionized fittings (1.5" and 2") for simple
replacement
• Cam and Ramp
™
maintenance
• Super-duty totally enclosed fan cooled (TEFC)
motor for long life
• Integral volute and pot reduce hydraulic noise
• See-through lid permits easy inspection of
strainer basket
• Self-priming for quick, easy start-up
• CE/REACH certified
• IPX6 rated
Controller Features
• Simple user interface
• IPX6 certified UV and rain-proof enclosure
• Onboard time of day schedule
• Adjustable priming mode
• Programmable quick clean mode
• Diagnostic alarm display and retention
• Active power factor correction
S5P2R™-VS2 Pump
P/N: S5P2R-VS2
Lid for easy cleaning and
PUMP OVERVIEW
• Accepts 99-253V, 50/60Hz input power
• Auto power limiting protection circuit
• Keypad lockout mode
• Accepts low voltage digital inputs from external
controls
Controller Overview
The VS2 Variable Speed Pump uses a premium efficiency
variable speed motor that provides tremendous program
flexibility in terms of motor speed and duration settings.
The pump is intended to run at the lowest speeds needed
to maintain a sanitary environment, which in turn minimizes
energy consumption. Pool size, the presence of additional water
features, chemicals used to maintain sanitary conditions, and
local environmental factors will impact optimal programming
necessary to maximize energy conservation.
The integrated electronics interface controls the speed settings
as well as the run durations. The pump can operate at speeds
ranging between 300 and 3450 RPM and will operate within
This pump is for use with 115/208-230 Vrms nominal, and
in pool pump applications ONLY. Connection to the wrong
voltage, or use in other application may cause damage to equipment or personal injury.
the voltage range of 99-253 Vrms at either 50 or 60Hz input
frequency. Program customization may require some trial-and-
error to determine the most satisfactory settings as dictated by
the conditions. In most cases, setting the pump at the lowest
speed for the longest duration is the best strategy to minimize
energy consumption. However, conditions may require running
the pump at a higher speed for some duration of time each day
to maintain proper filtration to achieve satisfactory sanitation.
Note: Optimize the pump to suit individual pool conditions.
Specific conditions including pool size, other devices, features
and environmental factors can all impact the optimal settings.
