Setting the control functions

System type

Radiator
Underfloor heating
Ceiling heating
Fan heater
Hydraulic shunt
Heat exchanger

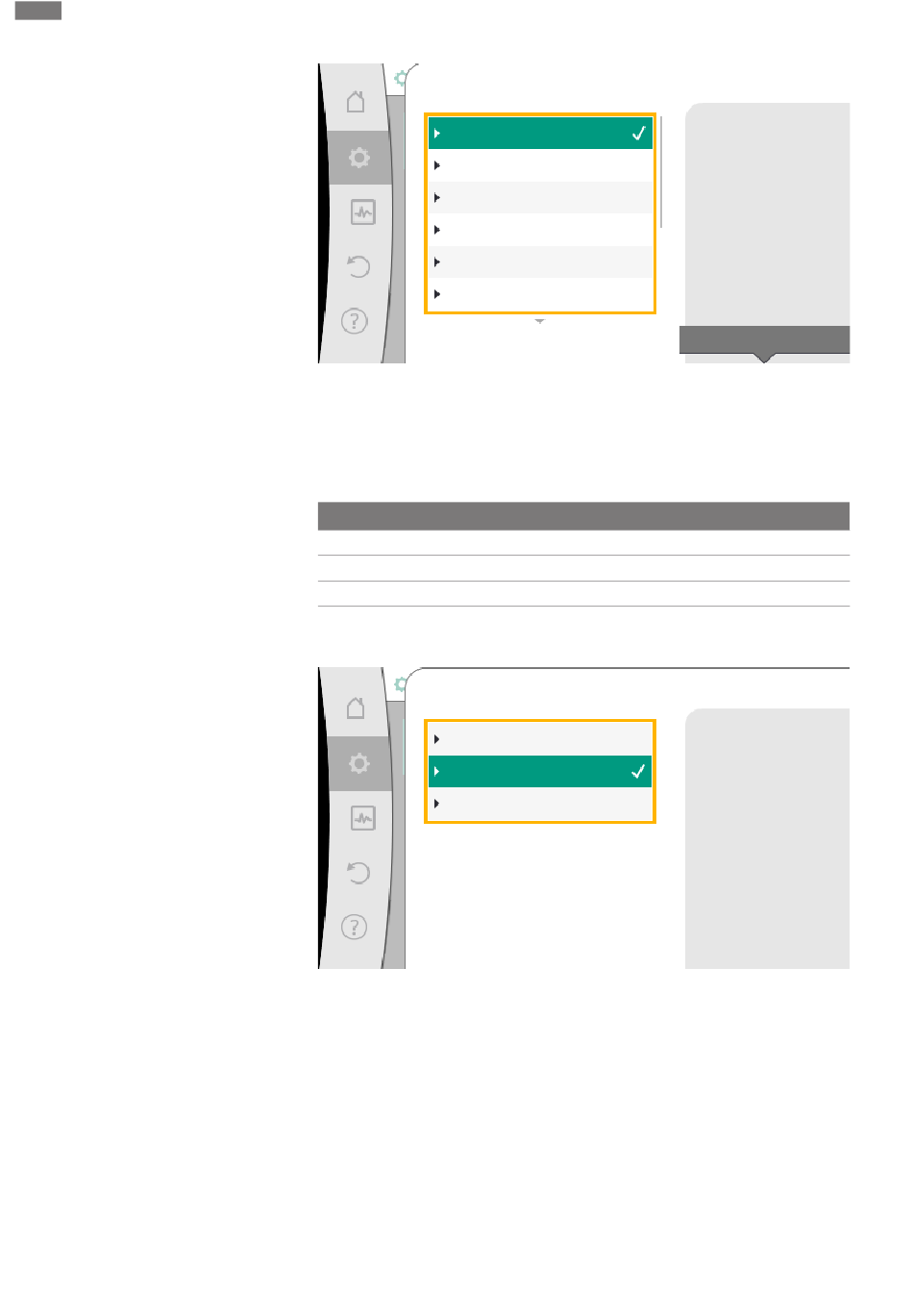

Fig. 47: Example – "Radiator" system type
Select the "Radiator" system type by turning the operating button and press to confirm.
Different control modes are available depending on the system type.
For the "Radiator" system type in the "Heating" application, the following control
modes are available:

Control mode

‣ Differential pressure ∆p-v
‣ Dynamic Adapt plus
‣ Hall temperature T-const
Example: Control mode "Dynamic Adapt plus"
Control mode
Differential pressure Δp-v
Dynamic Adapt plus
Hall temperature T-const
Fig. 48: Example – "Dynamic Adapt plus" control mode
Turn the operating button to select "Dynamic Adapt plus" control mode. Press the op-
erating button to confirm.
No other settings are required in Dynamic Adapt plus.
Once you have confirmed the selection, it is displayed in the "Settings assistant" menu.
Pump supplies
radiators.
Settings help
Pump adjusts its
performance automatically to
the
variable
demand of the
radiators
without the input of a setpoint.
Settings help
