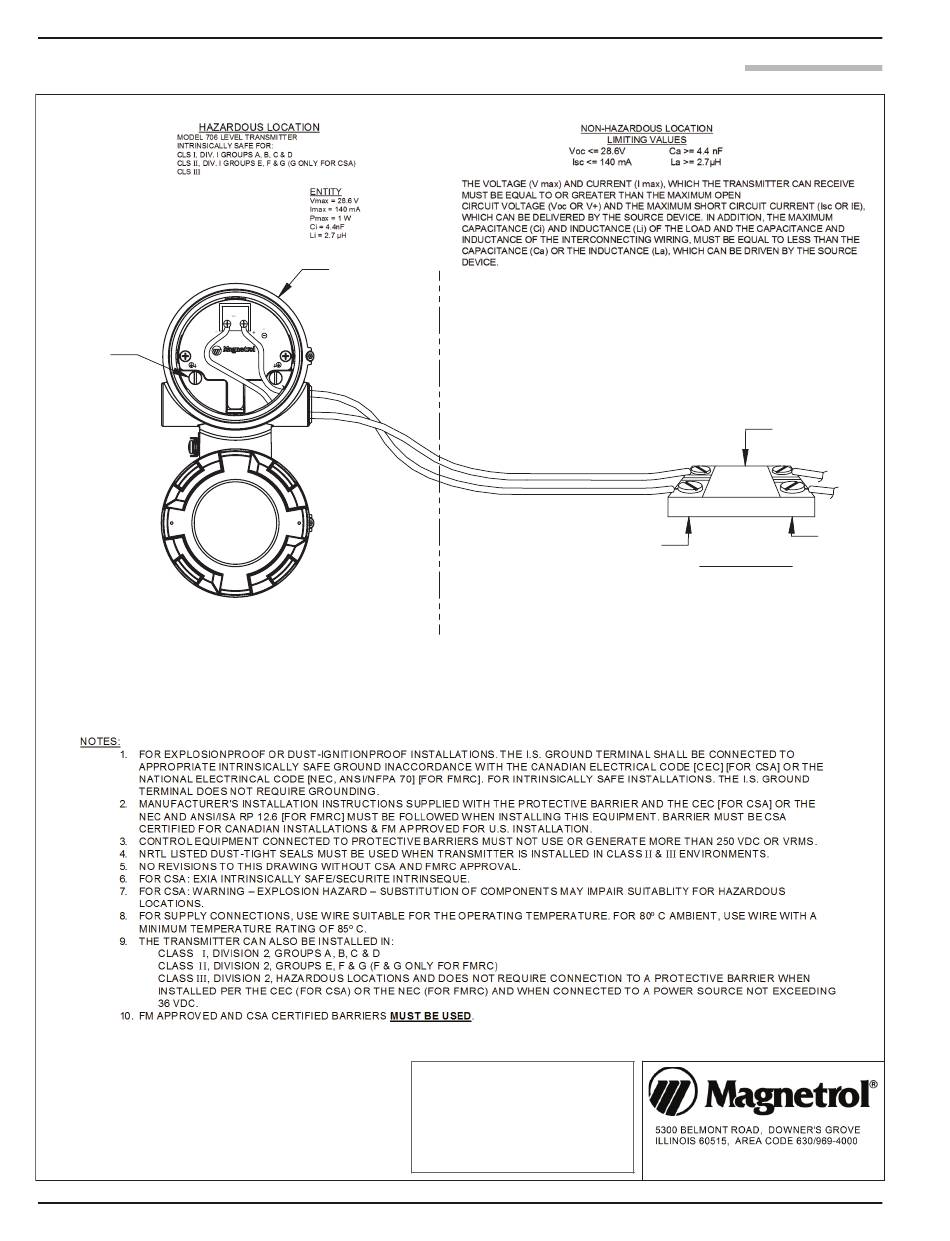

3.5.2 Spécifications d'homologation FM/CSA – Installation à sécurité intrinsèque
SEE NOTE 1
MODEL 706-51XX-XXX
SPECIAL CONDITION OF USE:
1. THE ENCLOSURE CONTAINS ALUMINUM AND IS CONSIDERED TO
PRESENT A POTENTIAL RISK OF IGNITION BY IMPACT OR FRICTION.
CARE MUST BE TAKEN DURING INSTALLATION AND USE TO PREVENT
IMPACT OR FRICTION.
68
TRANSMITTER
INSTRUMENT
CURRENT LOOP
LISTED DRAWING
HAZARDOUS AREA
TERMINALS
AGENCY
ALL REVISIONS
TO THIS DRAWING
REQUIRE QA APPROVAL
57-606 Transmetteur radar à ondes guidées ECLIPSE 706
INSTRINSICALLY
SAFE BARRIER
4
2
3
1
SAFE AREA
TERMINALS
"SEE NOTE 2"
099-5072
SHEET 2 OF 3
