When cutting is completed:
• Release the ON/OFF trigger switch, but keep your hands
in position and allow the blade to completely stop.
• Allow the Cutting Head has to rise to its upper position,
with the lower blade guard completely deployed before
removing yours hand(s).
• Return the Cutting Head to the perpendicular position.
• Return the Right Hand Bevel Access Pin to its original position.
• Tighten the bevel lock lever.

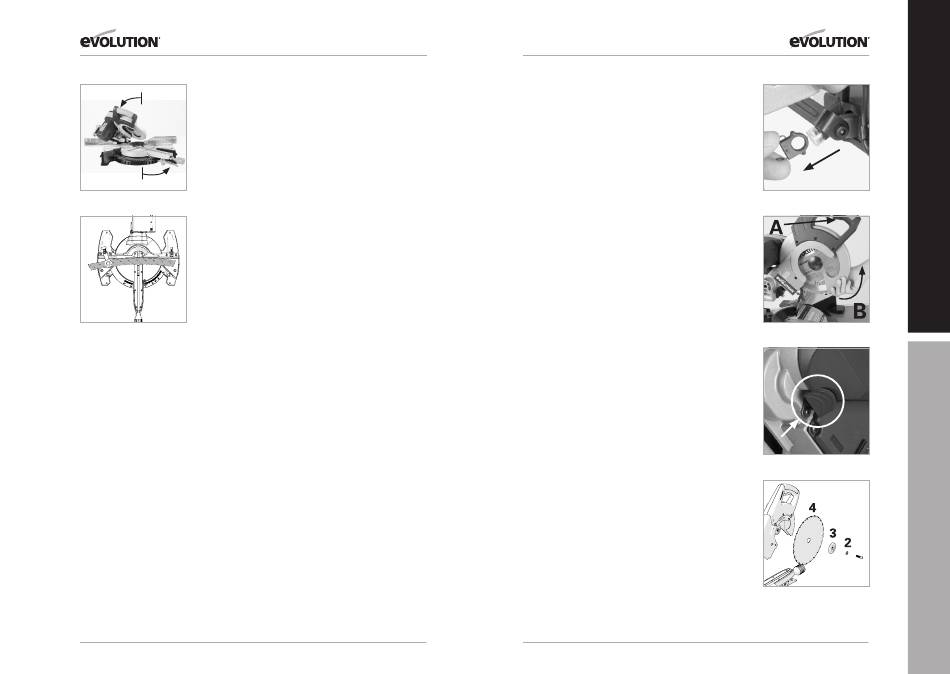

Fig. 35
COMPOUND CUTTING
A compound cut is a combination of a mitre and bevel cut
employed simultaneously.
When a compound cut is required, select the desired bevel and
mitre positions as previously described.
Compound cutting with the sliding carriage system deployed is
possible. Always check that the sliding blade does not interfere
with the machines fence or any other parts of the machine.
Fig. 36
Adjust the upper section(s) of the fence as necessary.
CUTTING BOWED MATERIAL
Before cutting any workpiece, check to see if it is bowed. If it is
bowed the workpiece must be positioned and cut as shown.
Do not position the workpiece incorrectly or cut the workpiece
without the support of the fence.
CLEARING JAMMED MATERIAL
• Turn the mitre saw "OFF" by releasing the trigger switch.
• Allow the blade to come to a complete halt.
• Unplug the mitre saw from the mains supply.
• Carefully remove any jammed material from the machine.
• Check the condition and operation of the safety guard.
• Check for any other damage to any part of the machine e.g.
the blade.
• Have any damaged parts replaced by a competent
technician and a safety inspection carried out before
using the machine again.
28
www.evolutionpowertools.com
(Fig. 35)
(Fig. 36)
www.evolutionpowertools.com
SUPPORTING LONG WORKPIECES
The free end of a long workpiece should be supported at the same
height as the machine table. The operator should consider using a
remote workpiece support in addition to the table extension bars if
thought necessary.
INSTALLING OR REMOVING A BLADE
WARNING: Only carry out this operation with the machine
disconnected from the mains supply.
WARNING: Only use genuine Evolution blades which are
designed for this machine.
Ensure that the maximum speed of the blade is higher than the
speed of the motor.
NOTE: It is recommended that the operator considers wearing
protective gloves when handling the blade during installation
or when changing the blade.
• Ensure the Cutting Head is in its upper position.
• Remove the lower guard operating arm retaining clip.
(Fig. 37) Release the guard operating arm from its pivot.
• Press the lower blade guard locking trigger (A) and rotate
the lower blade guard (B) up and into the upper blade guard.
(Fig. 38)
• Press the black arbor lock button to lock the arbor. (Fig. 39)
• Using the supplied Hex Key, release the arbor screw and
remove the washer and blade flange and the blade from the
arbor. (Fig. 40)
NOTE: The arbor screw has a LH thread. Turn clockwise to loosen.
Turn counterclockwise to tighten.
• Install the new blade. Make sure the rotation arrow on the blade
matches the clockwise rotation arrow on the upper guard.
29
EN
Fig. 37
Fig. 38
Fig. 39
FR
1
Fig. 40 View of
(1) Arbor screw, (2) Washer,
(3) Blade flange, (4) Blade
