WARNING: Never pull the Cutting Head and spinning blade
towards you when making a sliding cut. The blade may try to
climb up on top of the workpiece, causing the Cutting Head to
'Kickback' forcefully.
The Cutting Head should always be positioned as outlined
above before attempting to make a sliding cut. When the
Cutting Head is in the correct position above the workpiece
it can be lowered and pushed rearwards towards the fence to
complete the cut.

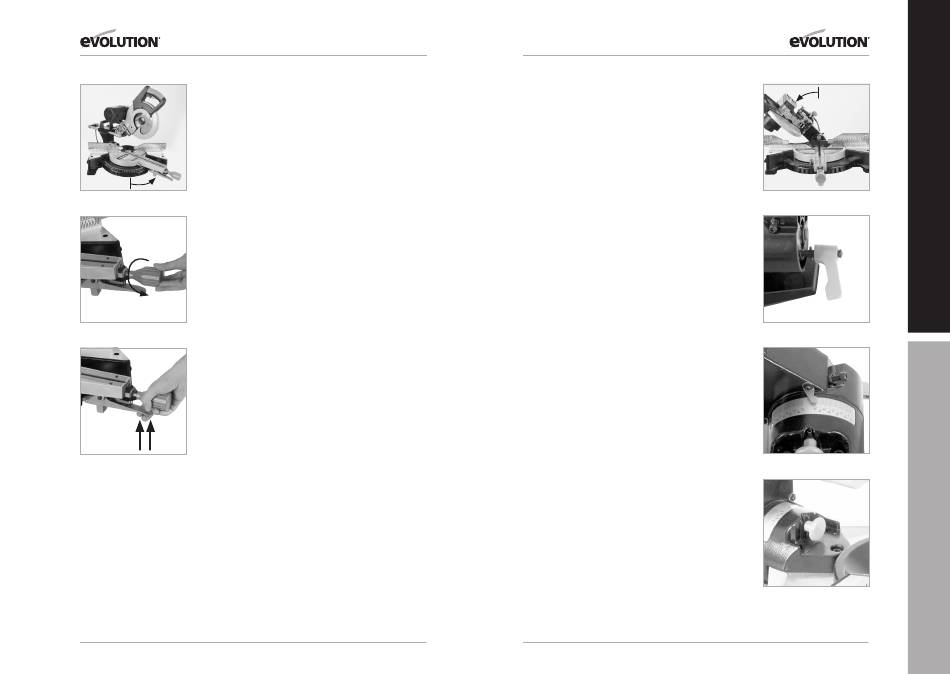

Fig. 28
MITRE CUTTING
The rotary table of this machine can be turned through 55
left or right from the normal cross-cut (0
Positive stops are provided at 45
right hand and left hand sides. Mitre Cutting is possible with or
without the Sliding Carriage system being deployed.
• Loosen the Mitre Lock Handle (Fig. 29) by turning it
anti-clockwise.
Fig. 29
• Pull up the Positive Stop Locking Lever. (Fig. 30)
• Turn the rotary table to the desired angle. A mitre angle
protractor scale is incorporated into the machines base to
aid setting.
• Tighten the Mitre Lock Handle when the
angle is achieved.
NOTE: It is good practice to tighten the Mitre Lock Handle
even if a Positive Stop has been selected and the Positive Stop
Locking Lever is engaged.
Fig. 30
26
www.evolutionpowertools.com
(Fig. 28)
to the
0
0
) position.
, 30
, 22.5
and 15
to both the
0
0
0
0
www.evolutionpowertools.com
BEVEL CUTTING - TILTING THE CUTTING HEAD
A bevel cut (Fig. 31) is made with the rotary table set at 0
NOTE: It may be necessary to adjust the upper section of the
Fence to provide clearance for the moving Cutting Head.
The Cutting Head can be tilted from the normal 0
0
(perpendicular
position) to a maximum angle of 45
0
from the perpendicular to
the left hand and right hand sides. Bevel cutting is possible with
or without the sliding carriage system being deployed.
To tilt the Cutting Head to the left:
• Loosen the bevel lock lever. (Fig. 32)
• Tilt the Cutting Head to the required angle.
A protractor scale is provided as an aid to setting. (Fig 33)
• Tighten the bevel lock lever when the desired angle has
been selected.
NOTE: The bevel lock lever is spring loaded and this enables it
to be repositioned on its operating screw. Repositioning may be
necessary to avoid interference with other parts of the machine
when certain mitre angles are selected.
To reposition:
• Lift up the lever and turn to a convenient position.
• Release the lever.
Stand to the left side of the handle when making a cut.
When cutting is completed:
• Release the ON/OFF trigger switch, but keep your hands in
position and allow the blade to completely stop.
• Allow the Cutting Head has to rise to its upper position,
with the lower blade guard completely deployed before
removing yours hand(s).
• Return the Cutting Head to the perpendicular position.
• Tighten the bevel lock lever.
To tilt the Cutting Head to the right:
• Pull out the Right Hand Bevel Access Pin. (Fig. 34) Twist the
pin ¼ of a turn to keep it in the disengaged (outer) position.
• Loosen the bevel lock lever.
• Tilt the Cutting Head to the required Right Hand angle.
• Tighten the bevel lock lever.
27
0
mitre.
Fig. 31
Fig. 32
Fig. 33
Fig. 34
