LASER ADJUSTMENT

WARNING: At no time during this procedure should the motor
be started.
To check laser alignment:
• Place a piece of cardboard, or similar, onto the rotary table of
the machine.
• With the carriage slide in the rearmost position, lower the Cutting
(a) (b)
Head so that a blade tooth makes a mark in the cardboard.

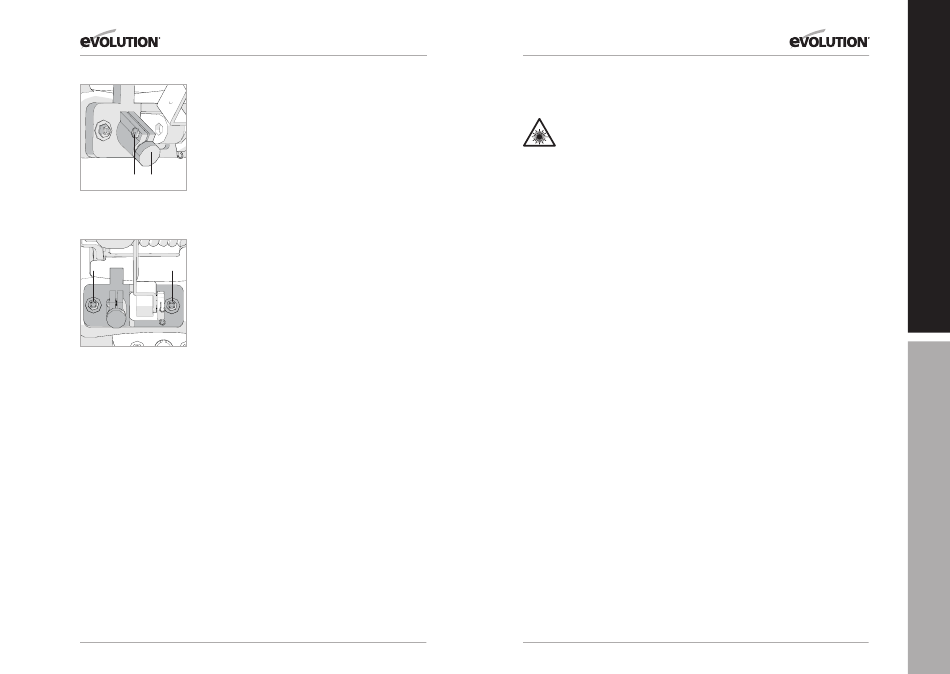

Fig. 6 • Allow the Cutting Head to rise, and then repeat the above
with the carriage slide in an approximate mid- way position.
(a) - Clamping screw
• Again repeat, but with the carriage slide moved to its most
(b) - Laser unit
forward position.
• With the Cutting Head raised, turn on the laser and slide
the Cutting Head backwards and forwards to observe if the
(c) (c)
projected laser beam is in line with the marks previously made:
• Beam is aligned with the marks =
No further action required.
• Beam is not parallel with the marks =
Follow section A
• Beam is parallel but not aligned with the marks =
Proceed to B
Fig. 7
A. If the laser beam is not parallel to the marks proceed as follows:
• Untighten the clamping screw (Fig. 6, a)
• Carefully rotate the laser module, (Fig. 6, b) until the line is
parallel with the marks in the cardboard.
• Re-tighten the clamping screw.
• Recheck the alignment.
B. If the laser beam is parallel with the marks, but not going
through them:
• Slacken the two screws. (Fig. 7, c)
• The laser mounting block can now be moved sideways to
align the laser beam with the marks made in the cardboard.
• When the laser beam is in the correct place,
re-tighten the two screws.
• Repeat procedure 'A' to check alignment.
NOTE: The above adjustments & alignments should be checked
on a regular basis to ensure laser accuracy.
16
www.evolutionpowertools.com www.evolutionpowertools.com
NOTE: The following WARNING labels may be found on this
machine:
LASER RADIATION DO NOT STARE INTO THE
BEAM
CLASS 2 LASER PRODUCT
CLASS 2 LASER PRODUCT LASER RADIATION AVOID
DIRECT EYE CONTACT LASER SAFETY
The Laser guide line used in this product uses a class II Laser
with a maximum power output of 1.5mW at a wave length of
between 635 and 670nm. These lasers do not normally present
an optical hazard, although staring at the beam may cause
temporary flash blindness.
WARNING: Do not stare directly at the Laser beam. The laser
must be used and maintained as detailed in this manual. Never
intentionally aim the laser beam at any person and prevent it
from being directed towards the eye, or an object other than
the workpiece. Always ensure that the laser beam is directed at
the workpiece only when it is located on the mitre saw table.
Never direct the laser beam onto any bright, shiny reflective
surface, as the laser beam could be reflected back towards the
operator. Do not change the laser unit for any other type.
Do not tamper with the laser unit. Only touch the unit when
making adjustments. Repairs to the laser shall only be carried
out by an authorised service centre.
THE LASER GUIDE LINE
The projected laser guide line shows the path of the blade
during a cut.
To use the laser guide for a known angle (e.g. 45
• Mark the cut required on the workpiece using a pencil etc.
• Set the saw to the cutting angle required (45 ) and lock into
0
position using the mitre locking handle and/or the positive
stop locking lever.
• Switch on the laser beam.
• Position the workpiece on the rotary table and against the fence.
• Slide the workpiece into position until the pencil line on the
workpiece and the projected laser line exactly match.
• Clamp the workpiece into position using the hold down clamp.
• Proceed to make the cut.
