VERSION 12/2020
OPERATING MANUAL

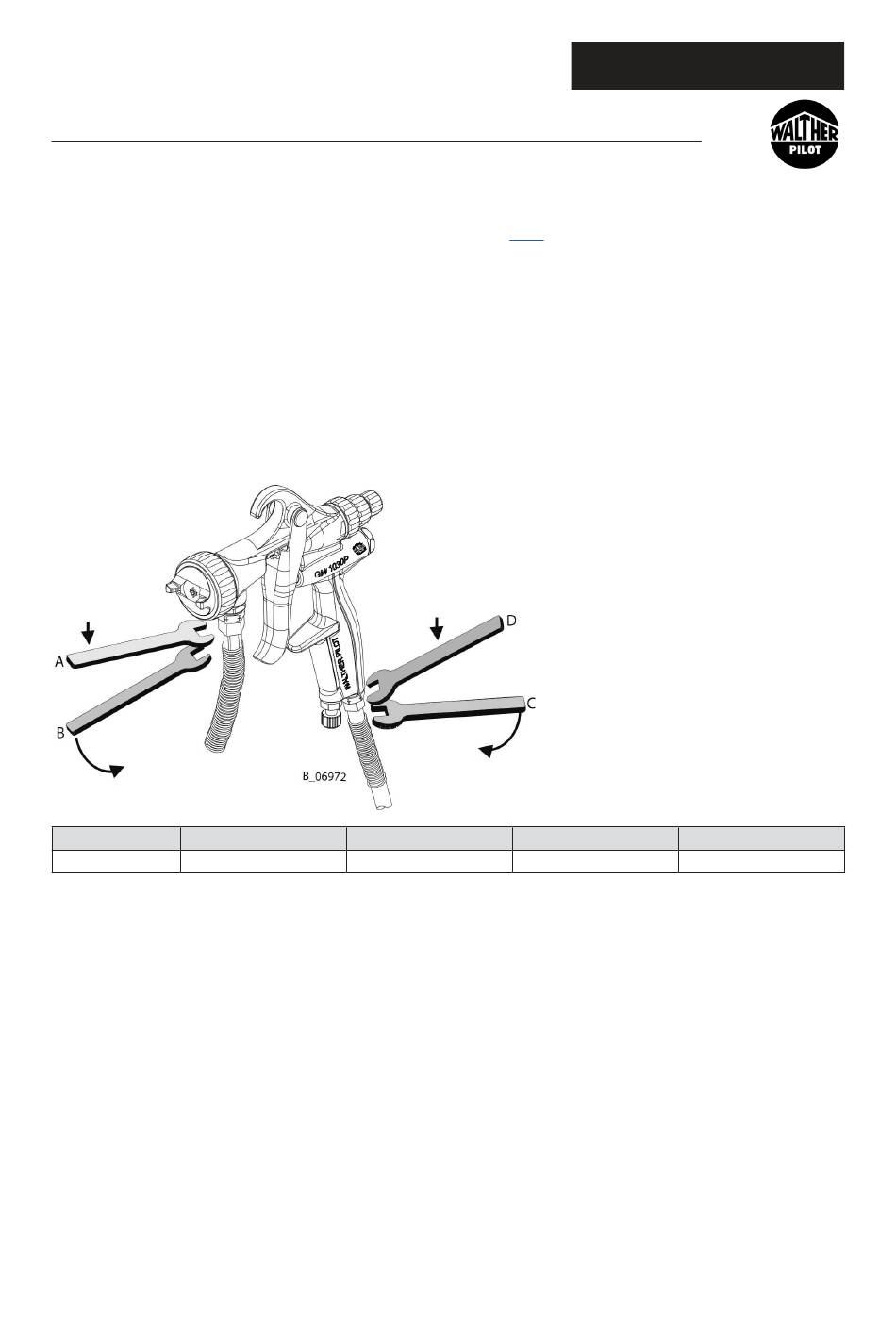

8.2.4 REPLACING THE PRODUCT HOSE OR AIR HOSE

1. Flush and clean the spray gun in accordance with Chapter 8.1.3.
2. Relieve the pressure of the spray gun and device.
Product hose
4. Place the size A wrench on the upper part of the product connection and hold it in
place.
5. Unscrew the product hose nut using the size B wrench.
Air hose
4. Place the size D wrench on the air connection and hold it in place.
5. Unscrew the air hose nut using the size C wrench.
Assembly:
6. Fit product hose and/or air hose by hand and tighten using two wrenches.
Counterhold
Description
Wrench size 16 mm; 0.62 inch
DOC2422648
Counterhold
Wrench A Wrench B
19 mm; 0.75 inch
PILOT GM 1030P
Wrench C
17 mm; 0.67 inch 14 mm; 0.55 inch
Wrench D
31
