VERSION 12/2020
OPERATING MANUAL

10.6 CHANGING SHAPING AIR REGULATOR

1. Flush and clean the spray gun in accordance with Chapter 8.1.3.
2. Relieve the pressure of the product pressure generator and of the spray gun in
accordance with Chapter 7.4.

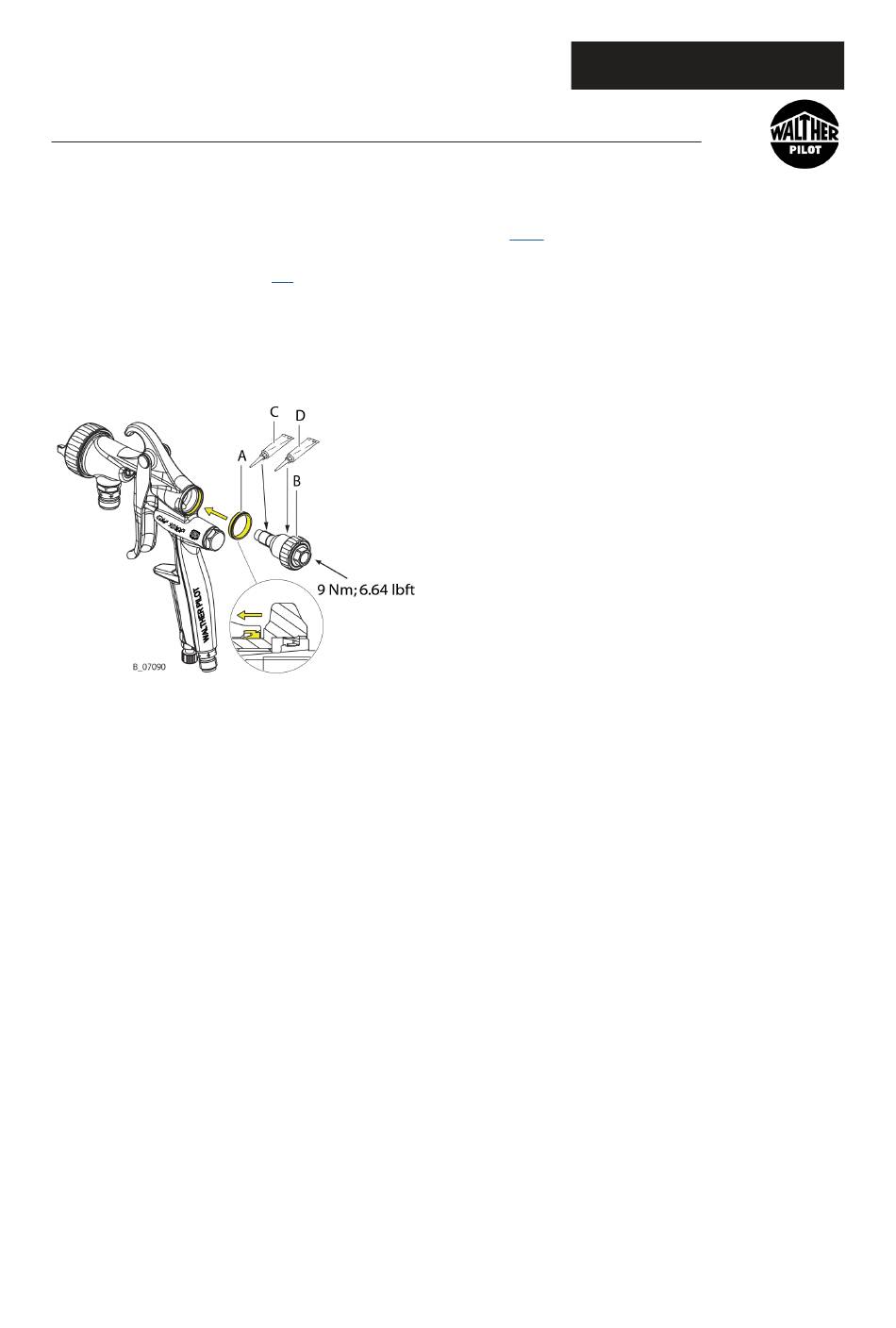

3. Carefully insert rod seal (A) in the foreseen notch on the gun. Ensure that the
installation position is correct (see sectional view). Ideally, place the rod seal (A) on a
flat surface and press gun body onto the seal without tilting it.
4. Completely coat the threaded sleeve (B) with Loctite® 542 (C) and Vaseline (D) and
then tighten it with a size 13 wrench and a torque of 9 Nm; 6.64 lbft.
DOC2422648
PILOT GM 1030P
37
