Connect the flexible hoses as indicated in figure 4.
The 2 flexible hoses with quick coupling connections on both
sides must be connected to the foreseen coil connection (see
figure 4).
The 2 flexible hoses with quick coupling connection on one
side and threaded connection coupling on the other side
must be connected to the hot water outlet and cold water
inlet (they have to be routed out from the rear plate (see
figure 4). Depending on the installation location (left or right
side installation), punch the required right or left knockout
holes out of the rear plate. Apply the grommet to the edges of
the knocked out holes to protect the flexible piping.
If the recirculation connection is used, connect a tube with
threaded connection to this hole and guide it through a hole
in the rear plate too (see figure 4).
1
Hot water out connection (G 3/4" Female)
2
Cold water in connection (G 3/4" Female)
3
Hot water out connection at the bottom of the tank (quick
coupling)
4
Cold water in connection at the bottom of the tank (quick
coupling)
5
Recirculation connection (G 1/2" Male)
6
Flow inlet connection from the main RKHBRD indoor unit
(quick coupling)
7
Return outlet connection to the main RKHBRD indoor unit
(quick coupling)
8
3-way valve
9
Flow inlet connection from the main RKHBRD indoor unit at
the bottom of the tank (quick coupling)
10
Return outlet connection to the main RKHBRD indoor unit at
the bottom of the tank (quick coupling)
7

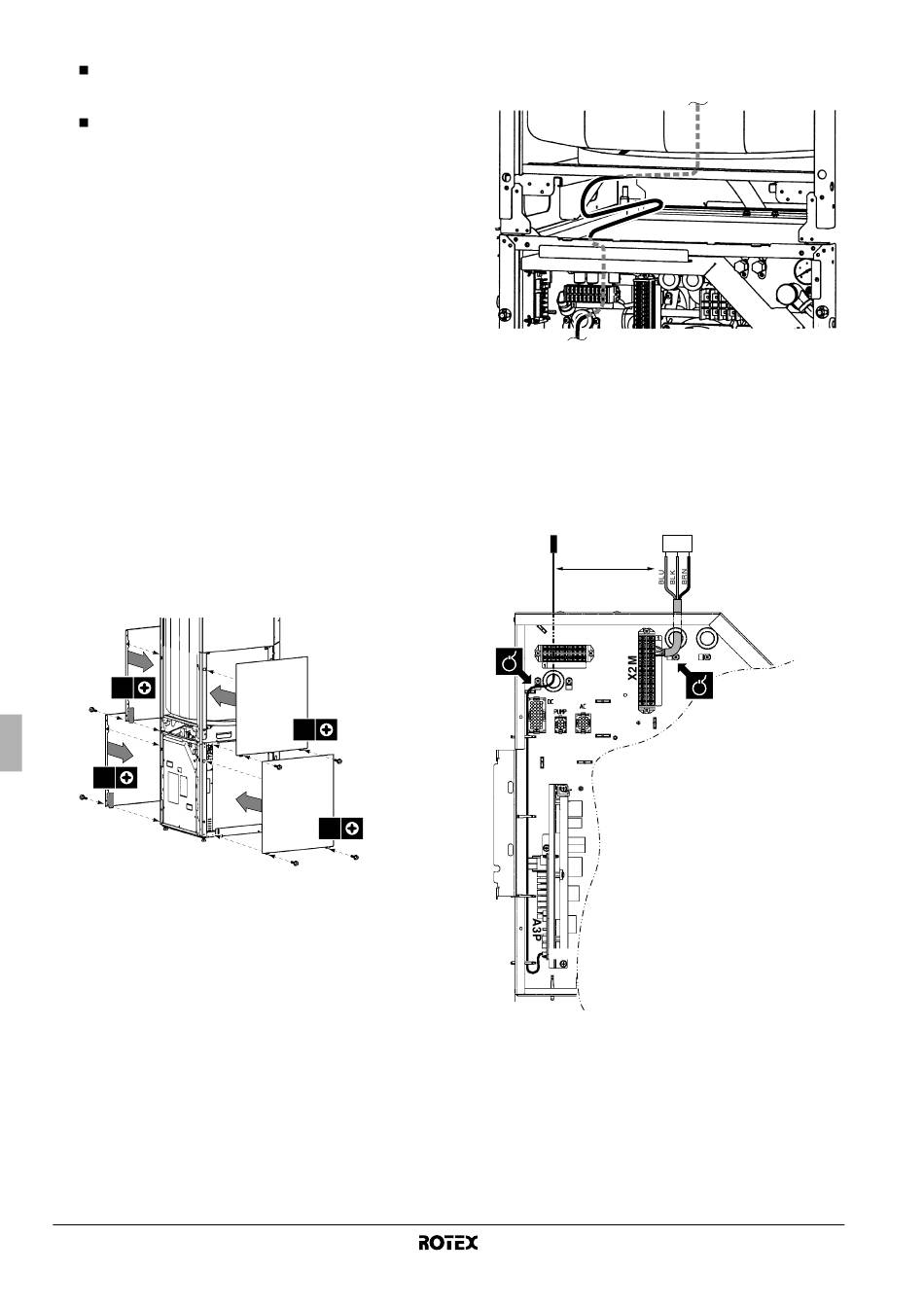

Fix the side bottom decoration panels of the domestic hot water
tank to the indoor unit.
1
2
2
2
2
2x
3
2
2
1
2
2
2x
3
1
Decoration panel
2
Quick fixation hole
3
Fasten with 2 screws
8
Connect the pressure relief valve (field supply, opening pressure
maximum 10 bar) and drain.
Installation manual
5
1
2x
3
1
2x
3
9
Connect the thermistor wire to the indoor unit switch box. Make
sure power supply is switched off. Refer to the wiring diagram
delivered with the indoor unit.
The distance between the thermistor cable and power supply
cable must always be at least 50 mm to prevent electromagnetic
interference on the thermistor cable.
1 Plug the thermistor cable connector in the socket X11A on
the PCB.
2 Fix the cables to the cable tie mountings with cable ties to
ensure strain relief.
3 When routing out cables, make sure that these do not
obstruct mounting of the indoor unit cover.
Note: only relevant field wiring is shown.
>50 mm
X11A
10 Reattach the drain plate on the indoor unit.
Domestic hot water tank for air to water heat pump system
3-way
valve
N Y L
3
3
4
4
5
5
RKHTS200+260A
