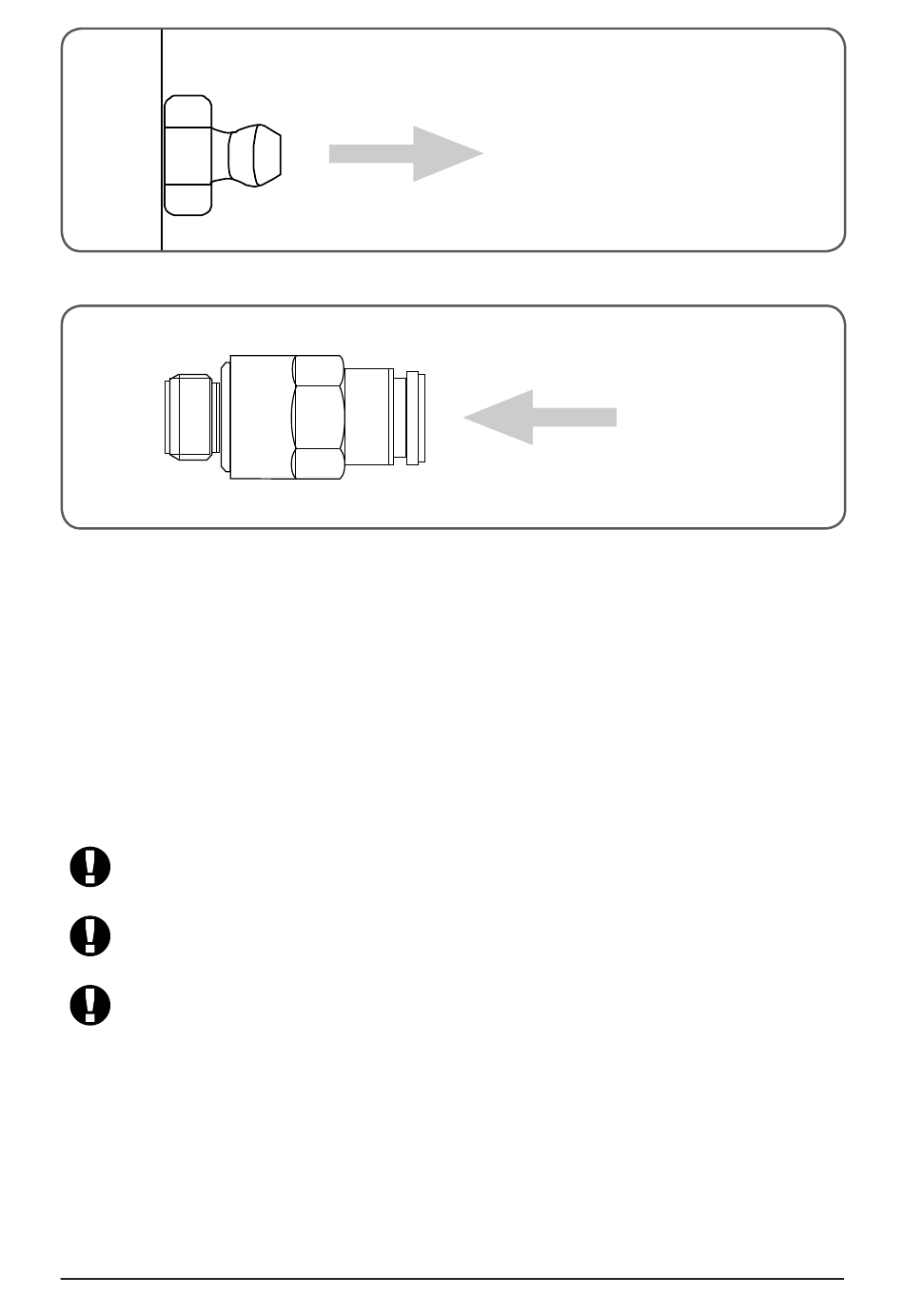

Fig 5 Remove the grease nipples.
Fig 6 Screw in the connector fittings.

2.2 Pump unit preparation

Connection with uneven number of lubricating points If the number of lubricating points
to be supplied is uneven, two of the outputs located at the distributor of the pump unit
have to be connected by means of the enclosed connection bar (Fig 7). This is necessary
for a proper distributor operation. To be able to screw in the connection bar, you first have
to remove two adjacent fittings on the distributor.
Then, screw in the connection bar.
No distributor output must be closed, as this would block the distributor.
When two outlets are connected by means of the connection bar, the
output flow from the connection bar is twice the volume of a single outlet.
Ensure cleanness. Even minor contamination may result in system errors
or bearing damage.
