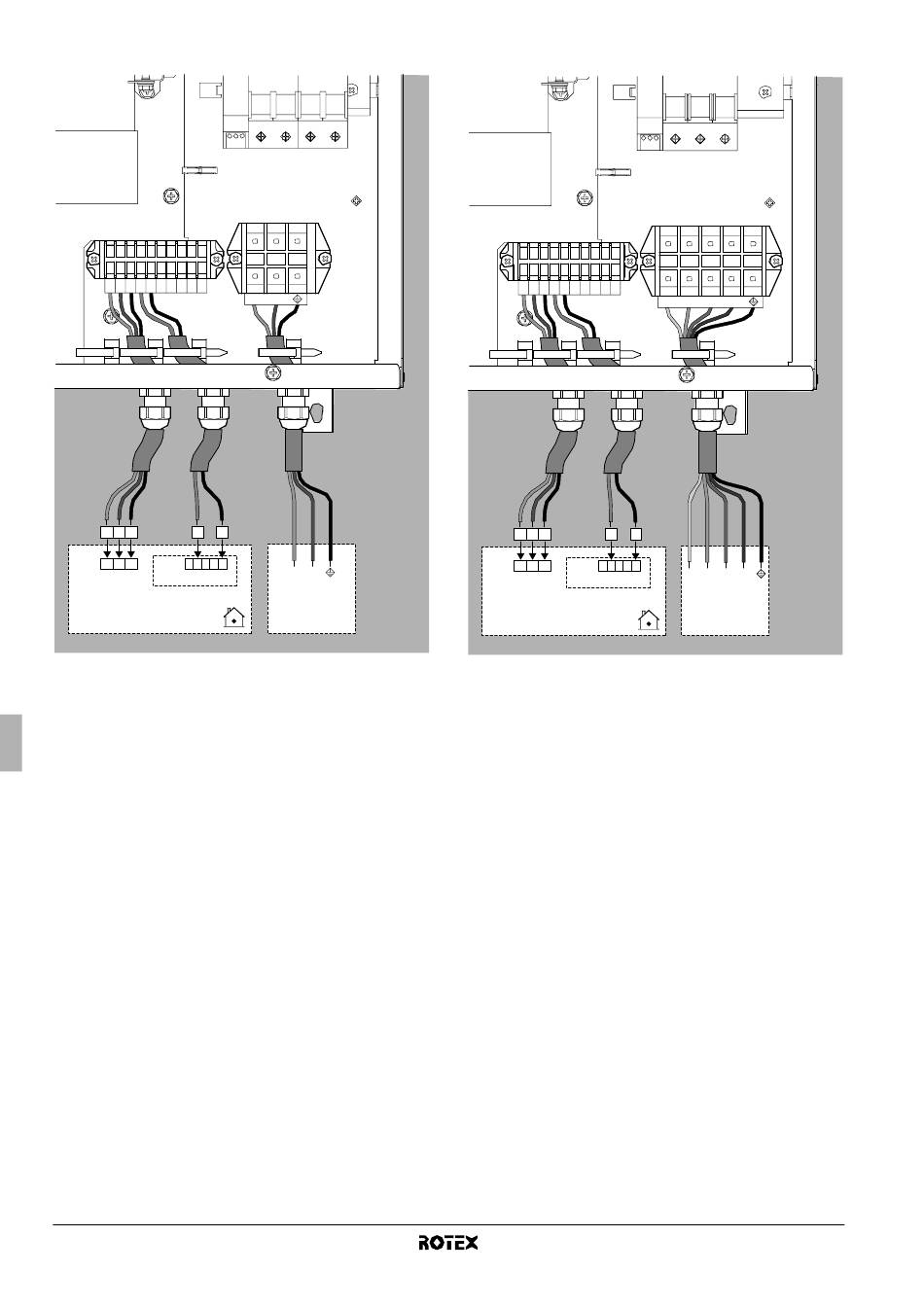

RKBUHAA6V3
X2M
1 2 3 4 5 10 11 12 13 14
1 2 3 4 5
14 15 16
X2M X801M 1 2 3 4 5
A8P
RKRP1AHTA
A8P RKRP1AHTA demand PCB
X2M - 14 Common
X2M - 15 Heater step 1 (3 kW)
X2M - 16 Heater step 2 (6 kW)
X801M - 2 Heater kit error feedback signal
X801M - 5 Heater kit error feedback signal
Installation and operation manual
7
X1M
L N
L N
1~ 230 V 50 Hz
RKBUHAA6W1
X2M
1 2 3 4 5 10 11 12 13 14
1 2 3 4 5
X2M 14 15 16 X801M
1 2 3 4 5
A8P
RKRP1AHTA
A8P RKRP1AHTA demand PCB
X2M - 14 Common
X2M - 15 Heater step 1 (2 kW)
X2M - 16 Heater step 2 (6 kW)
X801M - 2 Heater kit error feedback signal
X801M - 5 Heater kit error feedback signal
Heater kit for air to water heat pump system
X1M
L1 L2 L3 N
L1 L2 L3 N
3N~ 400 V 50 Hz
RKBUHAA6V3+W1
