ASSEMBLY AND PREPARATION
(7.1)

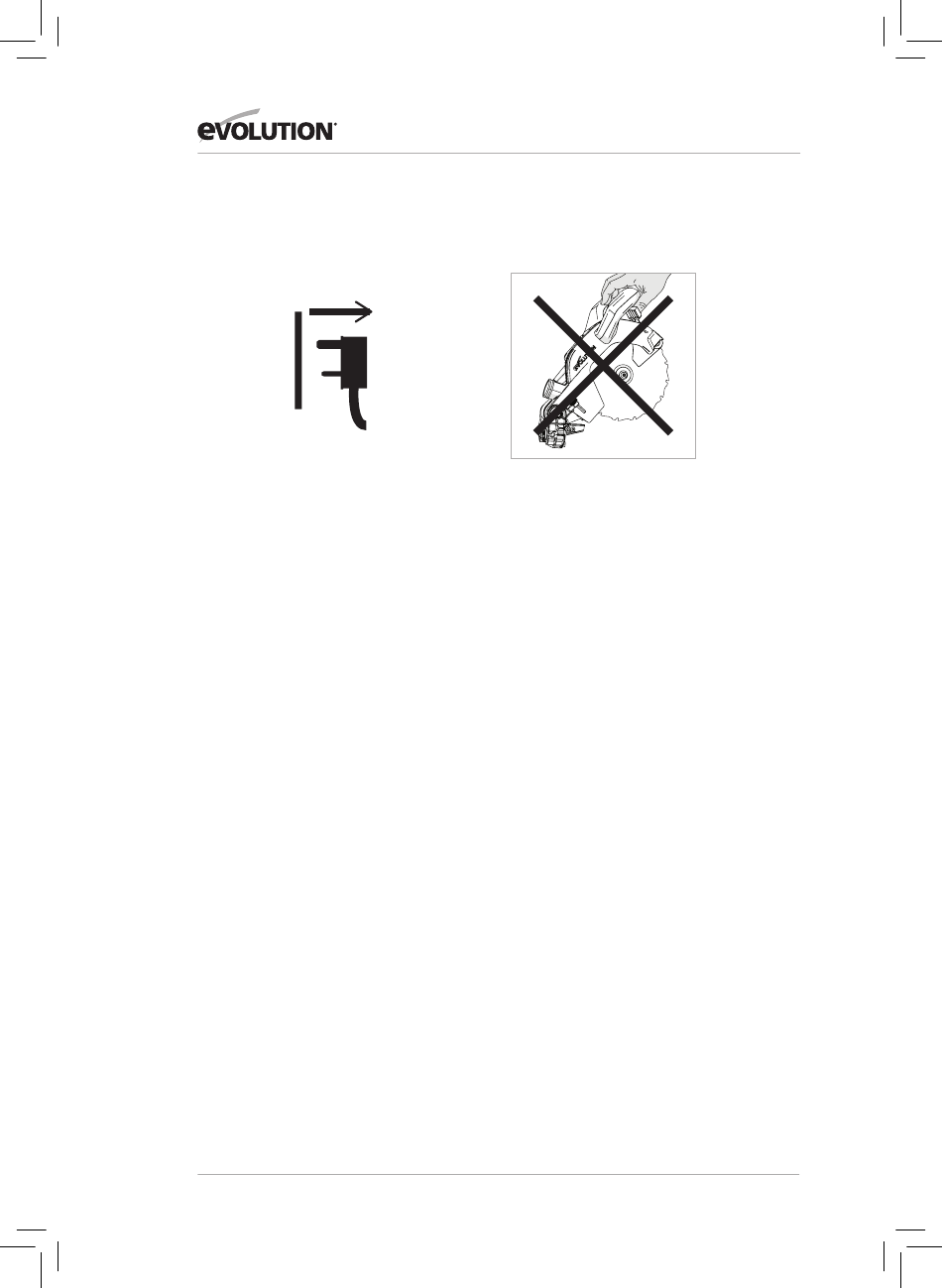

WARNING: Always disconnect the saw
from the power source before making any
adjustments.
Some minor assembly is required to
commission this machine.
By assembling this machine the owner/
operator will gain valuable insight into its
many advanced features. This should enable
the operator to exploit the machines full
potential once it is commissioned.
Note: Study the diagrams showing
the assembled machine. You will gain
valuable insight which will help you with
the assembly process.
TOOLS NEEDED FOR
ASSEMBLY & ADJUSTMENTS
Hex Key – Supplied and located in a dedicated
storage position on the machine. (Fig. 1)
Flat Bladed Screwdriver – Not supplied.
10mm Spanner – Not supplied.
5mm Allen Key – Not supplied.
Note: The assembly process is a 'one
time assembly' .
Once assembly is successfully completed no
attempt to disassemble the machine should
be made.
The blade and some other smaller parts also
need to be fitted by the owner/operator.
Note: A safety check must be carried out
once assembly is completed and before the
machine is used - see page 33.
www.evolutionpowertools.com
WARNING: Do not under any circumstances
plug the cutting head into the power supply
and try to use it as a hand held circular saw.

KNOW THE PARTS

There are four (4) main parts to be assembled
(including the blade), and two (2) other
smaller parts to be connected. Additionally
the blade (supplied) will need to be fitted.
• The rotary base and bevel neck (Fig. 2)
• The carriage slides (Fig. 3)
• The cutting head (In The 'locked down
Position as Removed from the Packaging)
(Fig. 4)
• The Blade (Fig. 5)
Note: The Blade should be the last part to
be fitted. It must only be fitted after the
assemble process is completed and the
machine has been subjected to the Assembly
Safety Checks - see page 33.

THE MITRE LOCKING KNOB

The threaded spigot of the Mitre Locking
Knob slides through a hole in the front of the
Mitre Locking Handle (Fig. 7) and then screws
into an internally threaded boss located in the
base of the machine.

THE BEVEL NECK

Note: The bevel neck is supplied fitted to the
Rotary table. The bevel neck should be adjusted
to the 0˚ position.
• Slacken the Bevel Locking screw using the
Bevel Locking Handle. (Fig. 8)
• Rotate the bevel neck to the vertical position
so that it rests against the 0 degree stop.
• Tighten the Bevel Locking Handle.
22
