ENG
PE
N
L
DA
DA
DA
PS

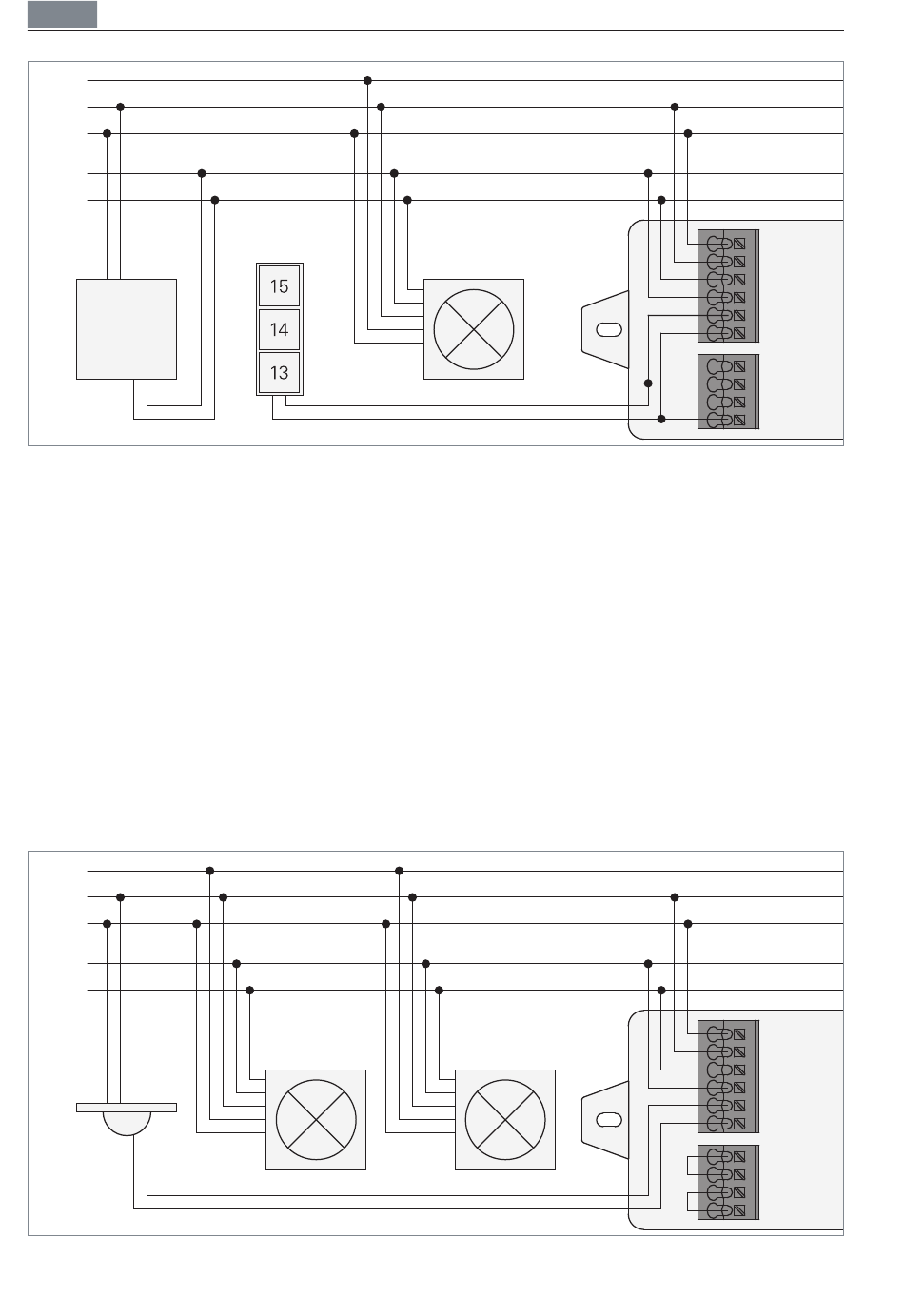

Fig. 9: Connection diagram: Switching VTL On/Off and boost function, external power supply.
6.4

Switching VTL On/Off and daylight and presence sensors

In this application, VTL can be controlled via an external DALI sensor and thus by day-
light and presence.
Components
DALI sensor
ƒ
Luminaires
ƒ
- With internal power supply: max. 16 electronic ballast units (EBU)
- With external DALI power supply: max. 64 EBU
NET module
ƒ
Connection diagram
PE
N
L
DA
DA
Fig. 10: Connection diagram: Switching VTL On/Off and daylight and presence sensors, internal
power supply.
24
Applications
L
N
DA OUT
DA OUT
DA IN
DA IN
DA PS 1
DA PS 2
DA PS 3
DA PS 4
L
N
DA OUT
DA OUT
DA IN
DA IN
DA PS 1
DA PS 2
DA PS 3
DA PS 4
