Applications
6.5 NET module as DALI participant in the building management sys-
tem
In this application, the NET module control is used as a full DALI participant (slave) in
the building management system (master). Thus, every NET module can be addressed
via DALI.
NOTE: The scenes 15 and 14 of the NET modules are permanently defined for "Boost
function" and "Course of the day" and cannot be changed. The scene 13 is defined for
"Off", but it can be changed.
Components
Building management system, for example DALI gateway
ƒ
Luminaires
ƒ
- With internal power supply: max. 16 electronic ballast units (EBU) for each NET
module
- With external DALI power supply: max. 64 EBU for each NET module
NET module(s)
ƒ

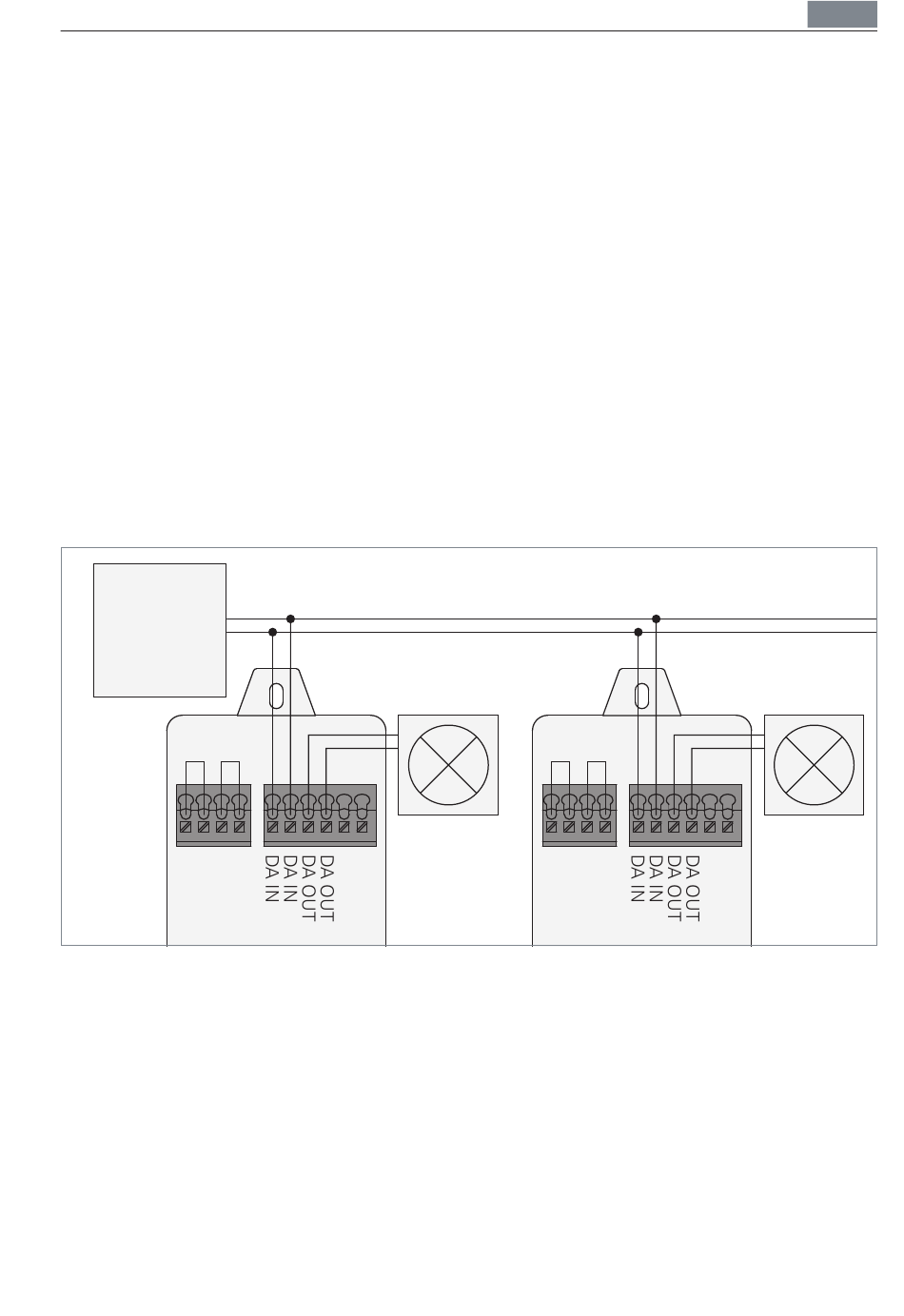

Connection diagram
PE
DALI-
Gateway
Fig. 11: Connection diagram: NET module as DALI participant in the building management system.
