Applications
6.3

Switching VTL On/Off and boosting

In this application, VTL can be operated via an external DALI scene module. The keys can
be programmed with functions, for example with the boost function which is used to
operate the luminaires at the maximum power and approx. 4000 K.
Components
DALI scene module (scenes: 15, 14 ,13 ... 0)
ƒ
NOTE: The scenes 15 and 14 of the NET modules are permanently defined and can-
not be changed. The scene 13 is defined, but it can be changed.
Assignment:
- Scene 15 = Boost function
- Scene 14 = Course of the day
- Scene 13 = Off
DALI power supply
ƒ
Luminaires
ƒ
- With internal power supply: max. 16 electronic ballast units (EBU)
- With external power supply: max. 64 EBU
NET module
ƒ
Connection diagram
PE PE
N
L
DA
DA
DA
PS

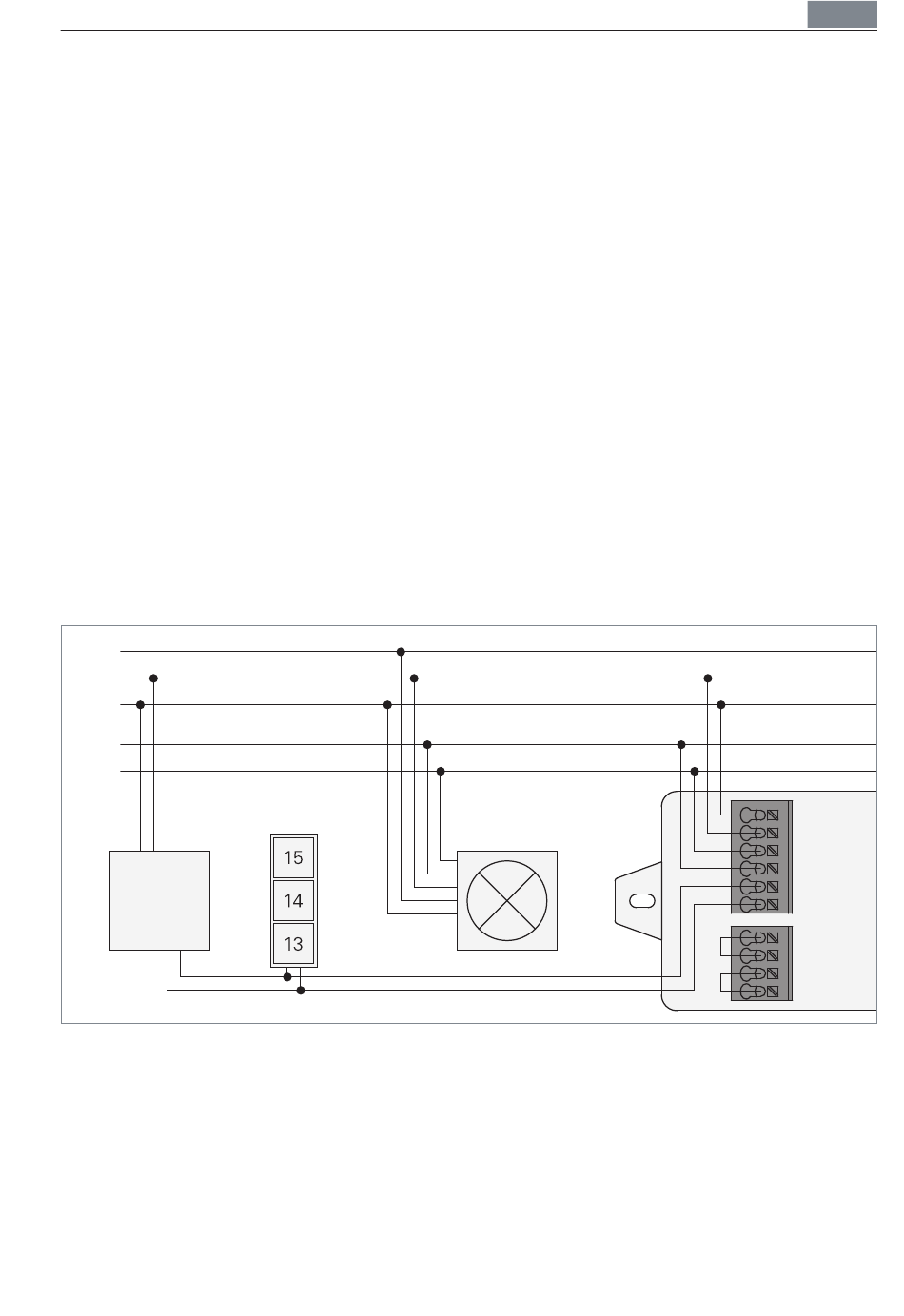

Fig. 8: Connection diagram: Switching VTL On/Off and boost function, internal power supply.
TIP: If the external DALI power supply is used for the DALI cables, the internal power sup-
ply of the NET module can be used for the DALI scene module, see Fig. 9.
ENG
L
N
DA OUT
DA OUT
DA IN
DA IN
DA PS 1
DA PS 2
DA PS 3
DA PS 4
