Connection
4
1
No. Designation
1 DC +
2 FLASH (flashing)
3
DC −
4
DIM (On/Off, Dimming)

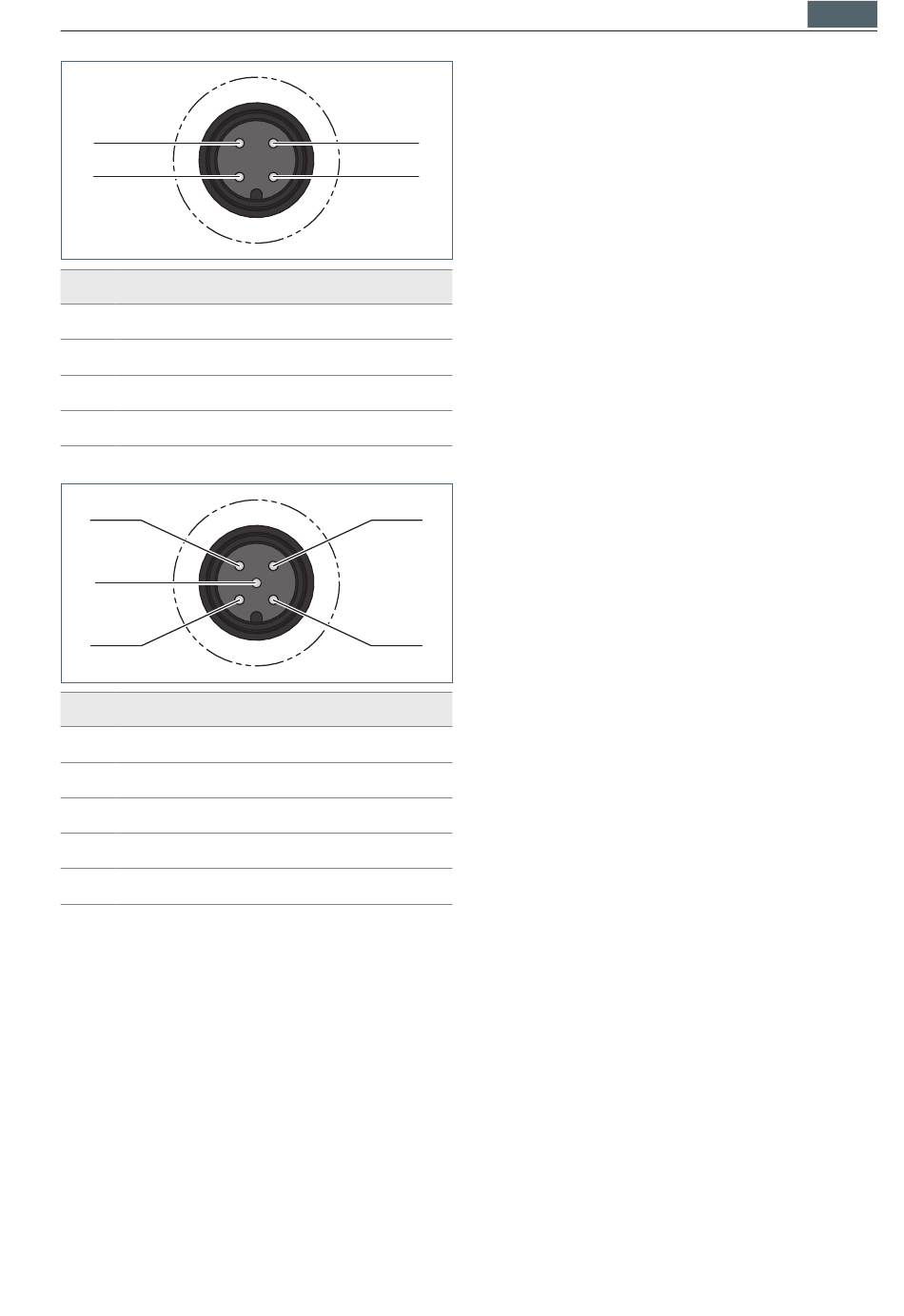

Tab. 5: Plug M12-A-4, pin assignment Type C.
4
5
1
No. Designation
1 DC +
2
Bit 0
3
DC −
4 Bit 1
5 Bit 2
Tab. 6: Plug M12-A-5, pin assignment Type E.
X Connect a suitable socket with the
A-coded plug.
4.2

Through-wiring

Luminaires with through-wiring can be
linked to one another via the pre-mounted
3
plug-in connection. These luminaires are
2
identified by the letter D in the model num-
ber, for example MLAL 12 SD.
To link the luminaires, connecting cables are
recommended, which can be found in the
Waldmann range of accessories.
For more information on the accessories of
this luminaire, please visit the Waldmann
home page at: www.waldmann.com
NOTE: In luminaires with through-wiring
connected in series, the total current con-
sumption must not exceed 4 A.
X Link the luminaires with a suitable con-
3
necting cable.
5.

Operation

2
5.1

Switch-on and switch-off

NOTE: The luminaire is not equipped with
a switch of its own.
A luminaire with pin assignment Type A or
Type B is switched on when it is supplied
with voltage.
A luminaire with pin assignment Type C or
Type E is switched digitally, see chapter 6
"Control" , page 24.
