5. TOP / ALARM OUTPUT ('A', 'R' TYPE AND 'G' TYPE)

5.1. Pin-out

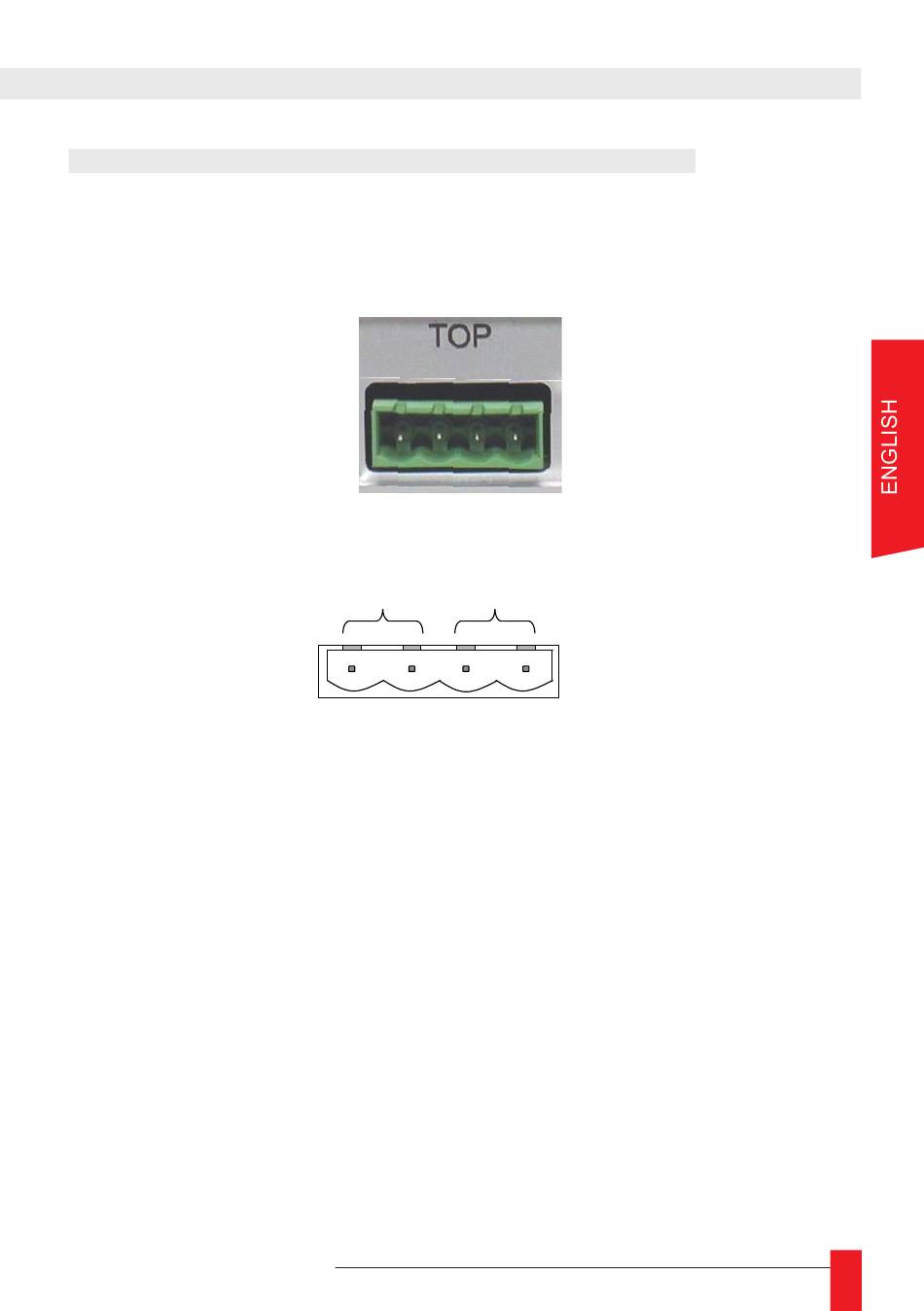

The 4 points plug on the ASCII and ALARM cards can provide a configurable time TOP
or synchro/power alarm TOP.
The 4 points plug has the following pin-out:
Static Relay Outputs 1 and 2 :
►
► Pin 1, Pin 2 : without polarity
► Max. switching voltage
► Max. switching current
► Open Collector output
► Pin 4 : Gnd
► Max. voltage
► Max. curren t : 30 mA
MDE-LEDI-NETWORK-IN-4065V1.0
static relay output 1
1 2
: 350 V AC/DC
: 130 mA
Pin 3 : +
: 45 V
aPPENDIx a – CONNECTIONS
open collector output
3 4
97
