4.2.5. Output and display setup

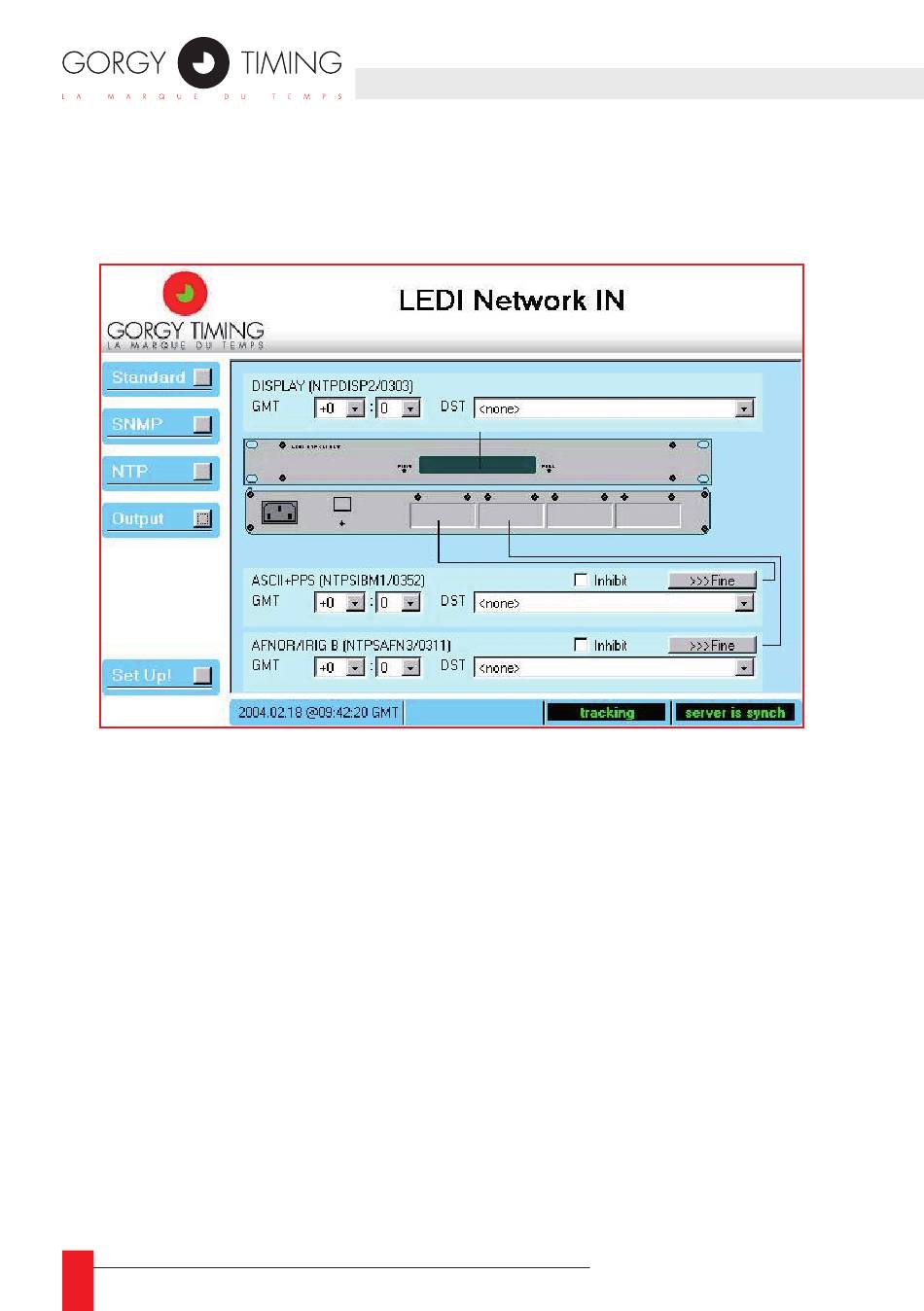

When you click on the Output button, the configuration of the output of the LEDI Network
IN is displayed as shown below:
This panel shows a synthetic view of the outputs of the product. The display is conside-
red as an output and is driven by a display card. A LEDI Network IN can contain up to 4
output cards plus the display card.
The display and each output cards can be configured independently using the right
cyan box. When an output card is not present or in failure, its box doesn't appear.
At this time, there are 6 kinds of output cards:
• ASCII+TOP RS232 ('A' type card).
• ASCII+TOP RS485 ('R' type card).
• AFNOR NFS 87500 / IRIGB ('B' type card).
• AFNOR /IRIGB TTL / RS422 ('T' type card).
• ALARM ('G' type card);
• NTP server ('N' type card).
You can freely use and copy the table Devices configuration in Appendix F – Additional
documents.
76
MDE-LEDI-NETWORK-IN-4065V1.0
