ELECTRIC WORK
Remote controller wiring
• Strip off approx. 14mm cover of the wire to be connected.
• Twist wire of the remote controller to be connected with wire of the remote controller unit (or sensor), and press-fit
them with a wire joint. (Wire joints (White: 2 pieces) are included in the accessory of the main remote controller
(sold separately) or wireless remote controller kit (sold separately).)
• As the remote controller wire has no polarity, there is no problem if connections to indoor unit terminal blocks A
and B are reversed.

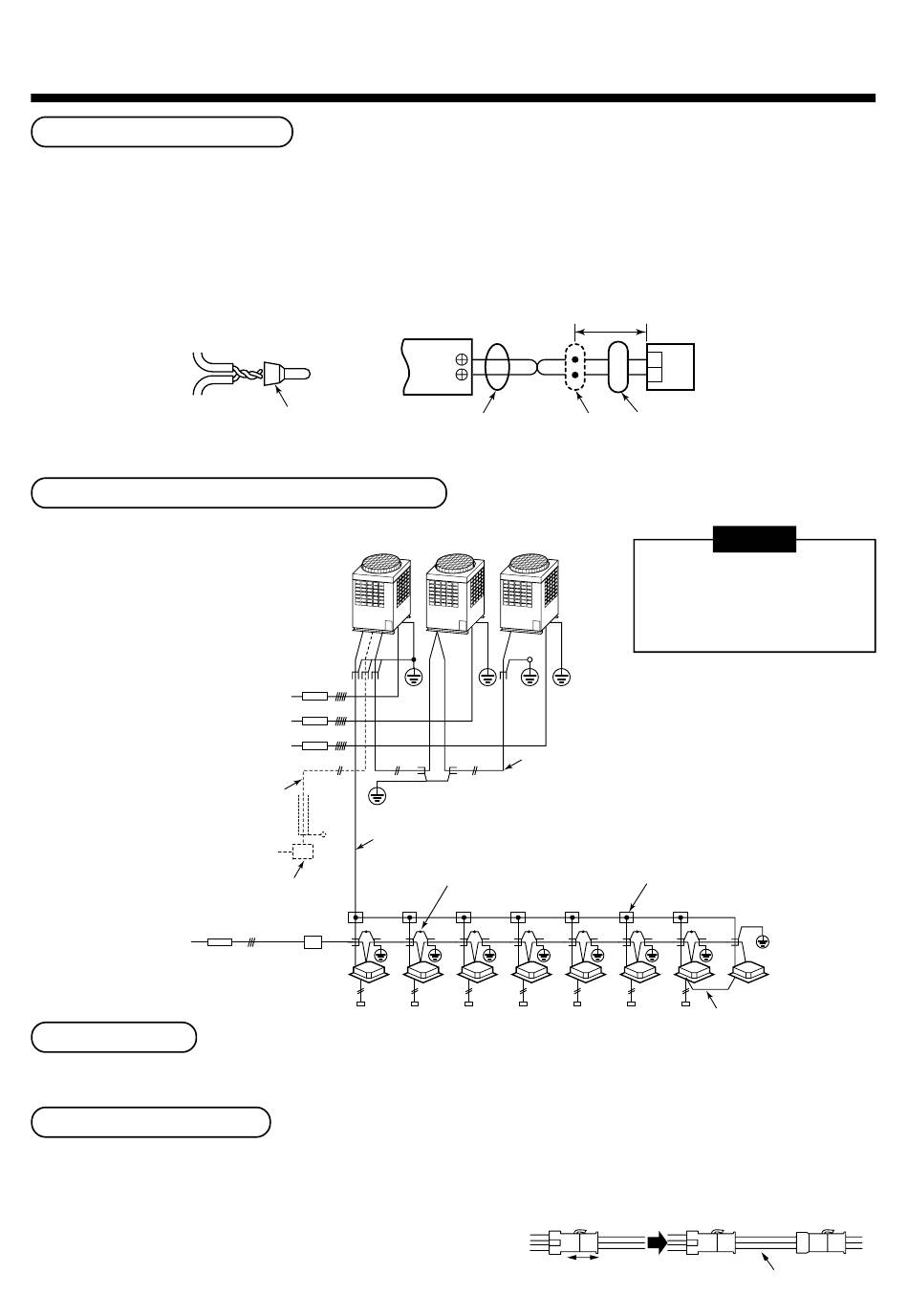

<Wiring diagram>
Remote controller wiring
Wire from remote
controller or sensor
Wiring between indoor and outdoor units
Outdoor power supply
3-phase
380–415V, 50Hz
380V, 60Hz
Central control line wire
Power supply
220–240V
~
220V
Earth leakage breaker
Indoor power supply
~
220–240V
50Hz
~
220V
60Hz
Address setup
Set up the addresses according to the Installation Manual attached to the outdoor unit.
Wiring of ceiling panel
Following to the Installation Manual of the ceiling panel, connect the connector.
<In case of installation to high ceiling>
When installing an indoor unit a high ceiling with height from
3m to 3.8m, remove the connector of the motor lead wire and
connect the motor speed-up connector attached to the air
conditioner to the middle position.
Wire joint
Header unit
Earth leakage breaker
(Open)
~
50Hz
60Hz
Remote controller,
for central control, etc.
Switch
Terminal block
for remote controller
wiring of indoor unit
A
B
Remote controller wire
Connecting
(Local procure)
part
Follower unit
(Earth)
Inter-unit wire between outdoor units
Connection of shield
wire closed terminal
Indoor/Outdoor inter-unit wire
Connection of shield
wire closed terminal
Indoor unit
Electric
parts box side
17
Approx. 200mm
W : White
B : Black
W
Remote
controller unit
B
or sensor part
Wire from remote controller unit
or sensor
An outdoor unit connected
with indoor/outdoor inter-unit
wire becomes automatically
the header unit.
Earth
Pull box
(Remote controller group operation)
Motor side
Remove
Motor speed-up connector
NOTE
(Earth)
