5 Installation
5.1 General installation information
A residual current circuit breaker must be provided as electrical protection for the system.
The system's control unit must be positioned in such a way as to prevent any unauthorised use.
Consequential damage can occur in the building if the system is switched off accidentally.
Assembly sequence
The system is installed and put into operation at different times according to the usual construction phases on a building site.
Installation of the tank with connection of wastewater inlet, ventilation and the pressure pipe via which the wastewater is
pumped see "Fixing the tank", page 27.
Installation of the control unit and connection of the electrical components (see "Installing the control unit", page 29).
Initial commissioning (see "Commissioning the system", page 31).

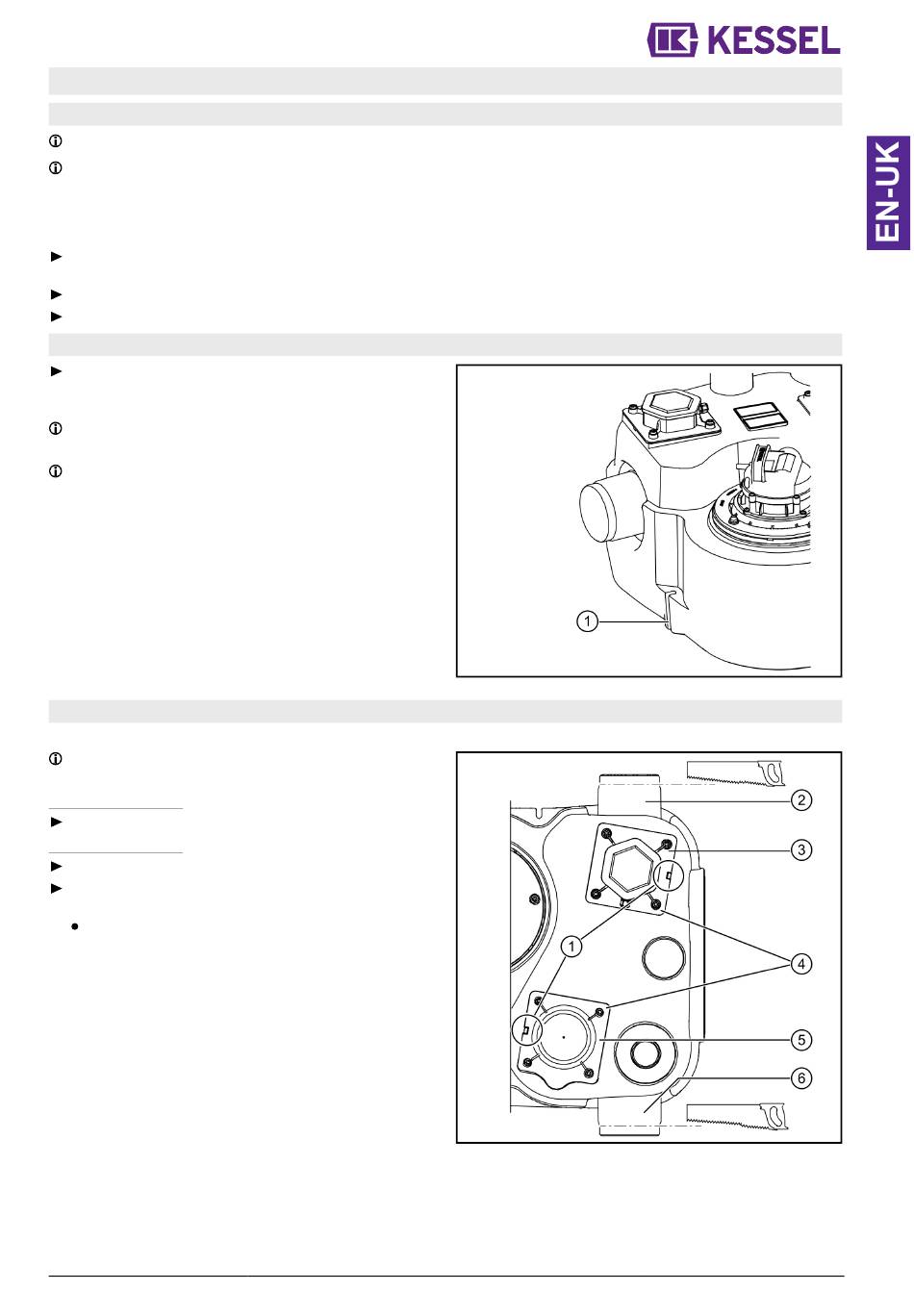

5.2 Fixing the tank
Place the tank in the correct position and screw onto the
floor at the two fastening points (1). Screws maximum
M8.
Choose fasteners capable of bearing a tensile load of at
least 200 N per fastening point.
Use KESSEL sound insulating underlay mat to minimise
sound transfer.
5.3 Mounting the inlet and outlet
Preparation
Risk of functional problems due to suspended matter and
solids deposited on the level sensor.
Inlet at the socket (2)
Saw off the socket at the indicated cutting edge.
Inlet at the socket (6)
Saw off the socket at the indicated cutting edge.
Replace the level sensor (3) with the access cover of the
maintenance opening (5).
Unscrew each of the 4 fastening screws (4) and swap
over the two assemblies accordingly.
Place the anti-rotation device (1) in the correct posi-
tion.
