Fuse Replacement; Battery Pack Replacement - Emerson Appleton Rigmaster Feuille D'instructions

To change the fixture's emergency duration setting from 180 minutes to 90 minutes, follow the steps given below:
1. Make sure power is disconnected before servicing the luminaire.
2. Open luminaire by loosening the eight captive screws. Allow the cover to swing open, enabling access to the wiring compartment.
see Figure 5/Figure 6.
3. Disengage duration (Yellow) wire connected with VBATT- (Black) wire from terminal.
4. Insert and torque VBATT- (Black) wire into the terminal.
5. Disengage VBATT+ (Red) wire from terminal.
6. Insert duration (Yellow) wire with VBATT+ (Red) wire into the terminal and torque it. For details follow Wiring diagram as applicable.
7. Tighten the eight captive screws by applying a torque of 2.25 N.m (20 Lb.in) using the sequence shown as in Figure 11. Make sure
wires do not pinch between cover and wiring compartment when closing.
8. Apply AC power to the unit. LED indicator should flash green.
9. The emergency duration setting of the luminaire has been changed from 180 minutes to 90 minutes.
NOTE:
1. By changing the emergency duration setting from 90 minutes to 180 minutes, lumen output during emergency mode will be
reduced approximately by 0.6 times.

Fuse Replacement

• Replace only with a fuse rating (amps and volts) as specified on the fuse label (located in the luminaire housing).
• The replacement fuse must be non-arcing (filled), non-indicating, and current limiting.
• Fuse replacement must only be done by qualified service personnel.

Battery Pack Replacement

• To replace the battery pack after every four (4) years. Refer battery label on battery pack for commencement date.
• Order a replacement battery kit BPMLLED from Appleton.
• Do not use any other battery packs.
• Follow the instructions given along with the battery replacement kit.
Except as expressly provided by Appleton Grp, LLC (Appleton), Appleton products are intended for ultimate purchase by industrial users and for operation by persons trained and experienced in the use and maintenance of this equipment
and not for consumers or consumer use. Appleton warranties DO NOT extend to, and no reseller is authorized to extend Appleton's warranties to any consumer.
While every precaution has been taken to ensure accuracy and completeness in this manual, Appleton Grp, LLC. assumes no responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or
omissions. Specifications are subject to change without notice. The Appleton and Emerson logos are registered in the U.S. Patent and Trademark Office. All other product or service names are the property of their registered owners.
©2020 Appleton Grp, LLC. All rights reserved.

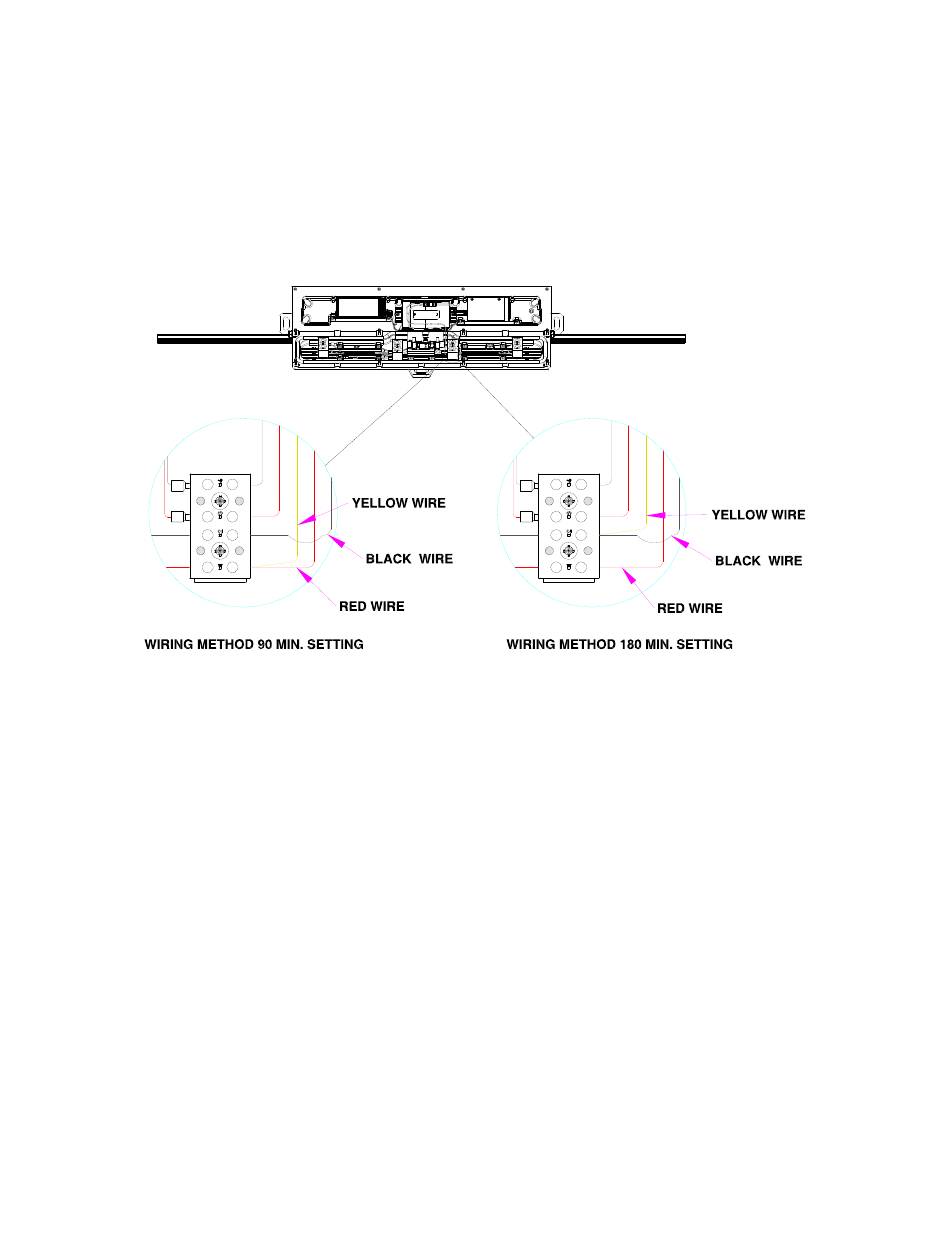

FIGURE 16: WIRING METHOD FOR DURATION SETTING
650610-000 Rev. 03 11/02/20 • Page 21 of 43
