Emerson Appleton Rigmaster Feuille D'instructions page 17

Recommended Appleton™ Cable Connectors
Refer table below:
Appleton Part Number
CG3150
CG6250
CG5075
CG3150S
CG6250S
CG5075S
Appleton Part Number
TC050055
Installation of the Safety Cable
Safety Cable Specification
Cable Diameter
4 mm (5/32 in.) 1219 mm (48 in.)
1. Install luminaire with supplied bracket using desired mounting means.
2. Insert closed loop of safety cable through a minimum of two retention slots on the luminaire. For a more secure installation, it is
recommended to loop the cable through the slots provided on the cover, wiring compartment and baseplate. See Figures 13 & 14.
3. Insert eyelet (carabiner clip) through the center of the closed end loop and pull until the end is tight.
4. Attach safety cable to desired support structure using eyelet (carabiner clip) end.
Appleton • 1.800.621.1506 • www.appletonelec.com

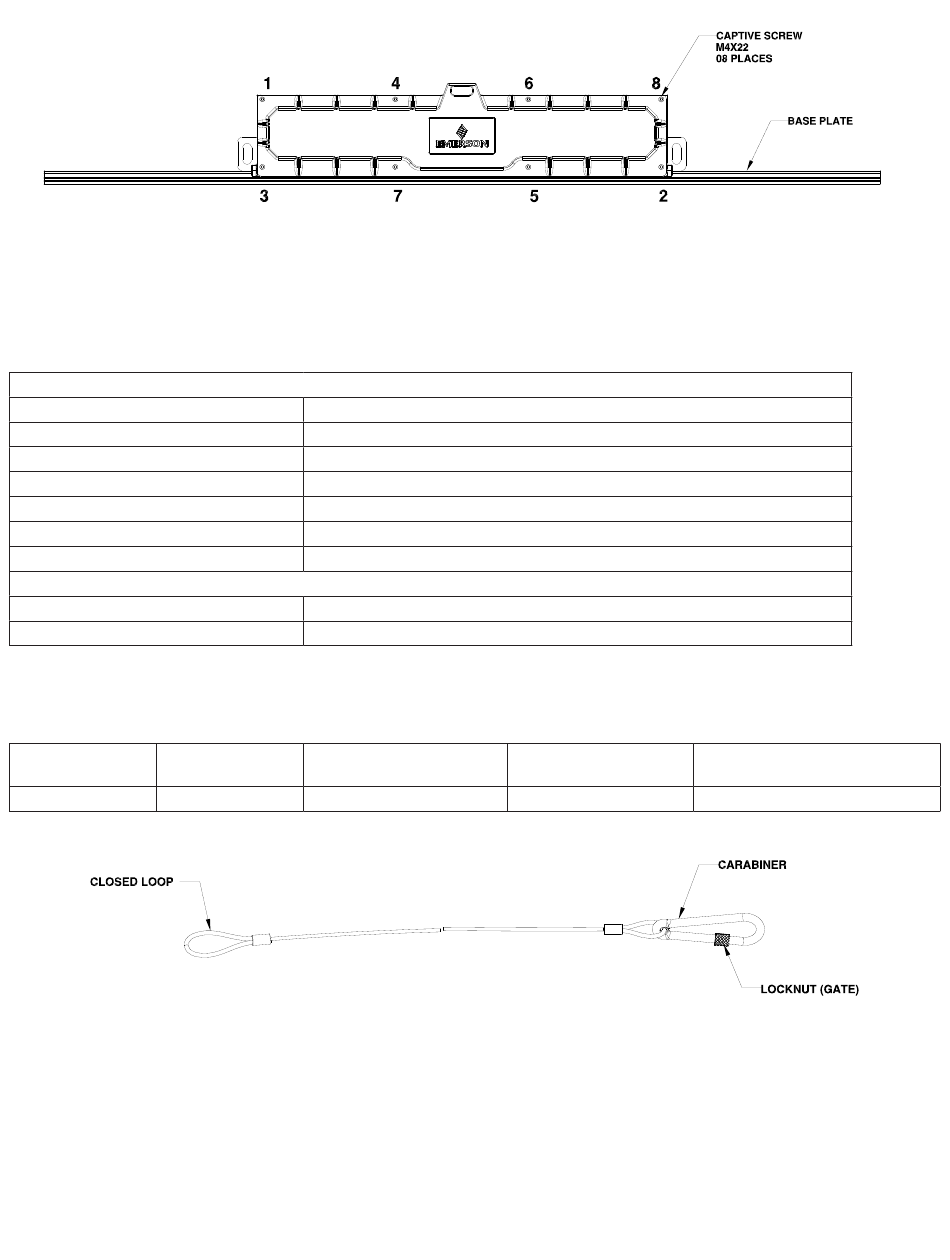

FIGURE 11: SCREW TIGHTENING SEqUENCE
Table 5: Compatible Cord Grips
Recommendation
Suitable for through wiring using either side (2 CG on either side)
Suitable for through wiring using either side (2 CG on either side)
Suitable for through wiring using either side (2 CG on either side)
Suitable for through wiring using either side (2 CG on either side)
Suitable for through wiring using both sides (1 CG on each side)
Suitable for through wiring using both sides (1 CG on each side)
Compatible Tray Cable Connectors
Recommendation
Suitable for through wiring using both sides (1 connector on each side)
Length Tolerance
+50/-25 mm (+2.0/-1.0 in.)
FIGURE 12: SAFETy CABLE
Material Carabiner/
Sleeve/Cable
316 Stainless Steel
650610-000 Rev. 03 11/02/20 • Page 17 of 43
Safe Working Load at
5:1 Safety Factor
113 kg Max. (250 lbs. Max)
