7. Apply AC power to the unit. LED indicator on to the luminaire should begin to flash green. If it flashes red; please refer to the
Troubleshooting/Maintenance section.
8. Battery will be fully charged within 24 hours (maximum). Emergency luminaire may or may not light at this time, depending on
the degree to which battery is charged.

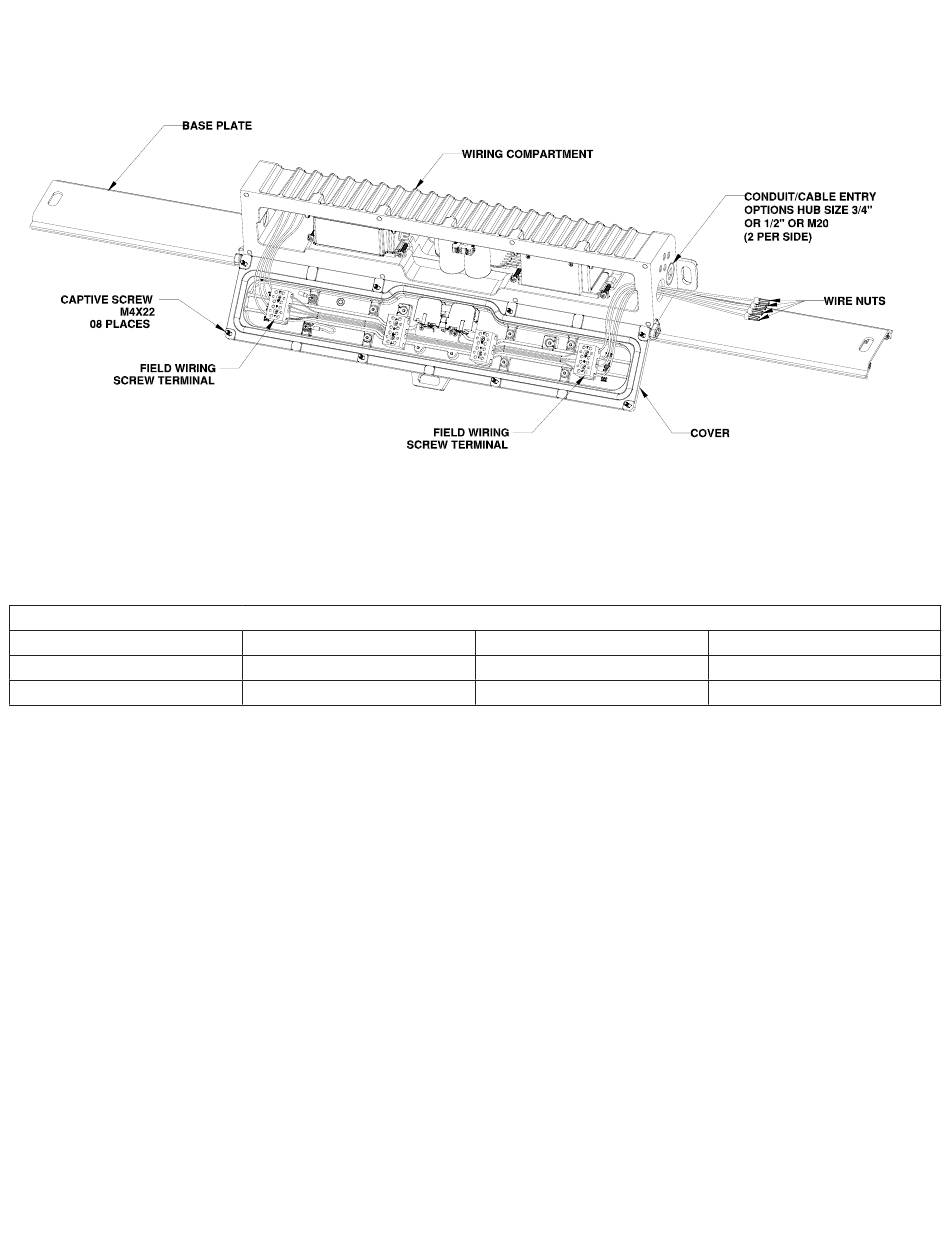

FIGURE 5: RIGMASTER EMERGENCy LUMINAIRE WITH WIRE NUT OPTION
For Luminaire With Fixed Screw Terminal Option
NOTE: See the product nameplate for supply wire requirements. The terminal block can accept 12-22 AWG wire. Use the appropriate
wire gauge based on the application.
POWER SySTEM
L-N AC POWER SYSTEM
L-L AC POWER SYSTEM
1. Make sure power is disconnected before wiring the luminaire.
2. Open the luminaire wiring compartment by loosening the eight captive screws. Allow the cover to swing open, enabling access
to the wiring compartment. see Figure 6.
A. Wiring with Multi-conductor Cable
1. Strip the cable outer jacket as required.
2. Insert the cable through the conduit entry (with appropriate cable fitting attached) to the luminaire
wiring compartment.
B. Wiring with Individual Wires
1. Run conductors down through the conduit to the luminaire wiring compartment.
3. For standard Wiring:
A. Strip the individual wires by approximately 8 mm (0.3 in) and insert them into the proper terminal block connections. The
connection Poles are identified on the Cover as: L' = Line prime, L = Line, N = Neutral, and E = Ground. Tighten down
the terminal block screws onto the wire with torque of 0.75 N.m (6.5 Lb.in). For Wiring diagram refer to one of the figures
from Figure 9A, Figure 9B, Figure 9C, & Figure 9D that fits best as per application requirement in conjunction with section
'Wiring Methods' as applicable.
4. For Through Feed Wiring:
A. Strip the individual wires by approximately 8 mm (0.3 in) and insert them into the proper terminal block connections on
both sides. The connection Poles are identified on the Cover as: L' = Line prime, L = Line, N = Neutral, and E = Ground.
Tighten down the terminal block screws onto the wire with torque of 0.75 N.m (6.5 Lb.in). For Wiring diagram refer one
of the figures from Figure 10A, Figure 10B, Figure 10C, & Figure 10D that fits best as per application requirement in
conjunction with section 'Wiring Methods' as applicable.
5. Connect the battery by plugging in the quick connector.
6. Check all connections for continuity and ground integrity.
7. Once the terminal block is wired to power supply connection, close the luminaire wiring compartment cover.
Appleton • 1.800.621.1506 • www.appletonelec.com
TABLE 4:
L
HOT / LINE
HOT 1 / LINE 1
N
NEUTRAL
HOT 2 / LINE 2
650610-000 Rev. 03 11/02/20 • Page 7 of 43
PE
GROUND
GROUND
