Mounting Brackets

LARGE SWIVEL BRACkET (RMHLSB)
1. Make sure power is disconnected & circuit is de-energized before installing the bracket.
2. Determine appropriate mounting distance between holes on the brackets for your application. Refer to Figure 3(C).
3. Secure RMHLSB bracket to structural support member with appropriate bolts (not supplied) that can handle the weight of luminaire
in accordance with local building code and all other code requirements.
4. Raise luminaire to mounted RMHLSB bracket and secure it using M8 washer and bracket mounting screw (M8 X 18) supplied with
the bracket on both sides.
5. Align the luminaire to the desired aiming position with your free hand and use Locking screw (M8 X 18) supplied with the bracket to
hold at that position. Refer to Figure 3(A).Tighten all the screws to secure the luminaire in place with a torque of 15 N.m (133 Lb.in).
Appleton • 1.800.621.1506 • www.appletonelec.com

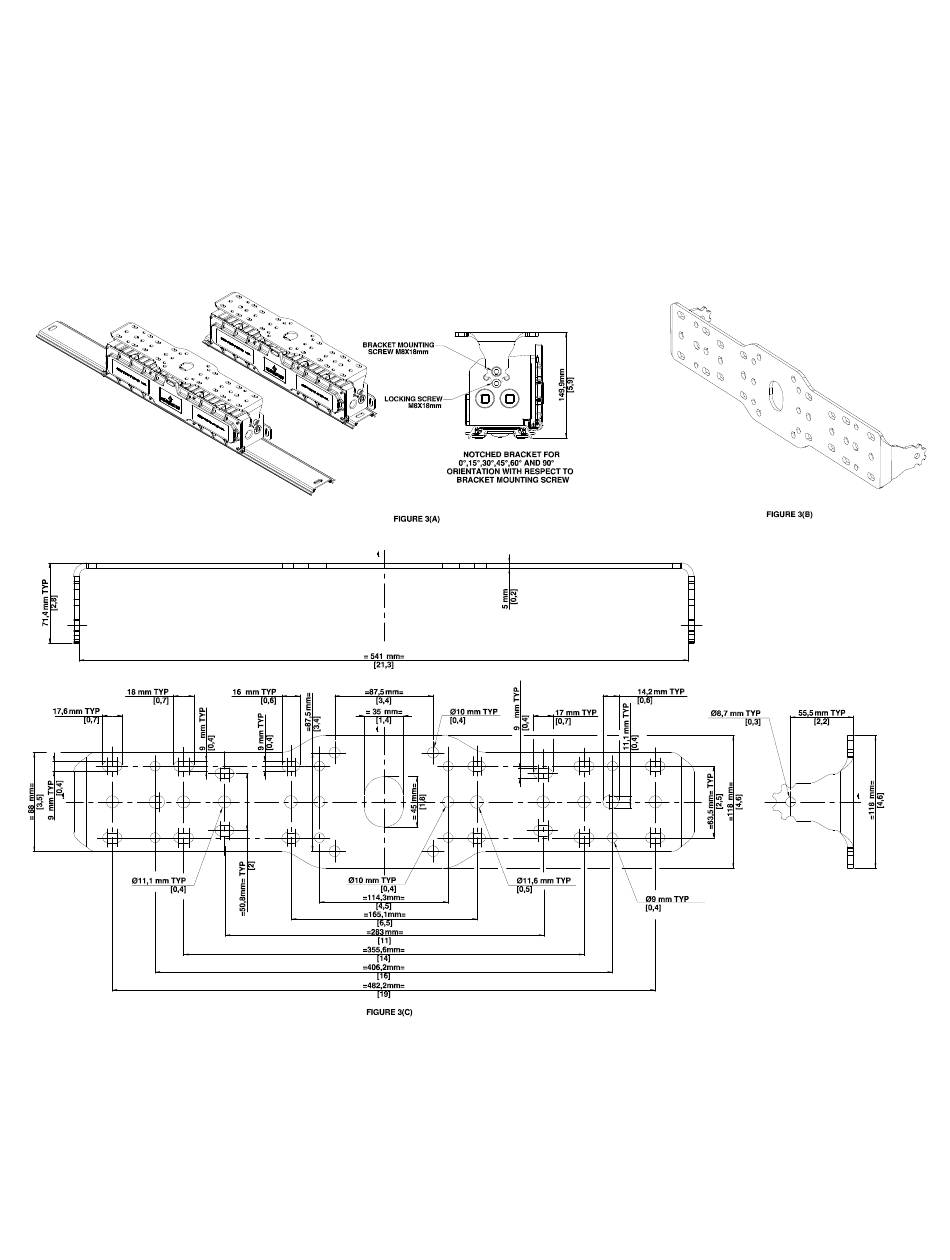

FIGURE 3: MOUNTING BRACkET - RMHLSB BRACkET
