Dimensions/Details

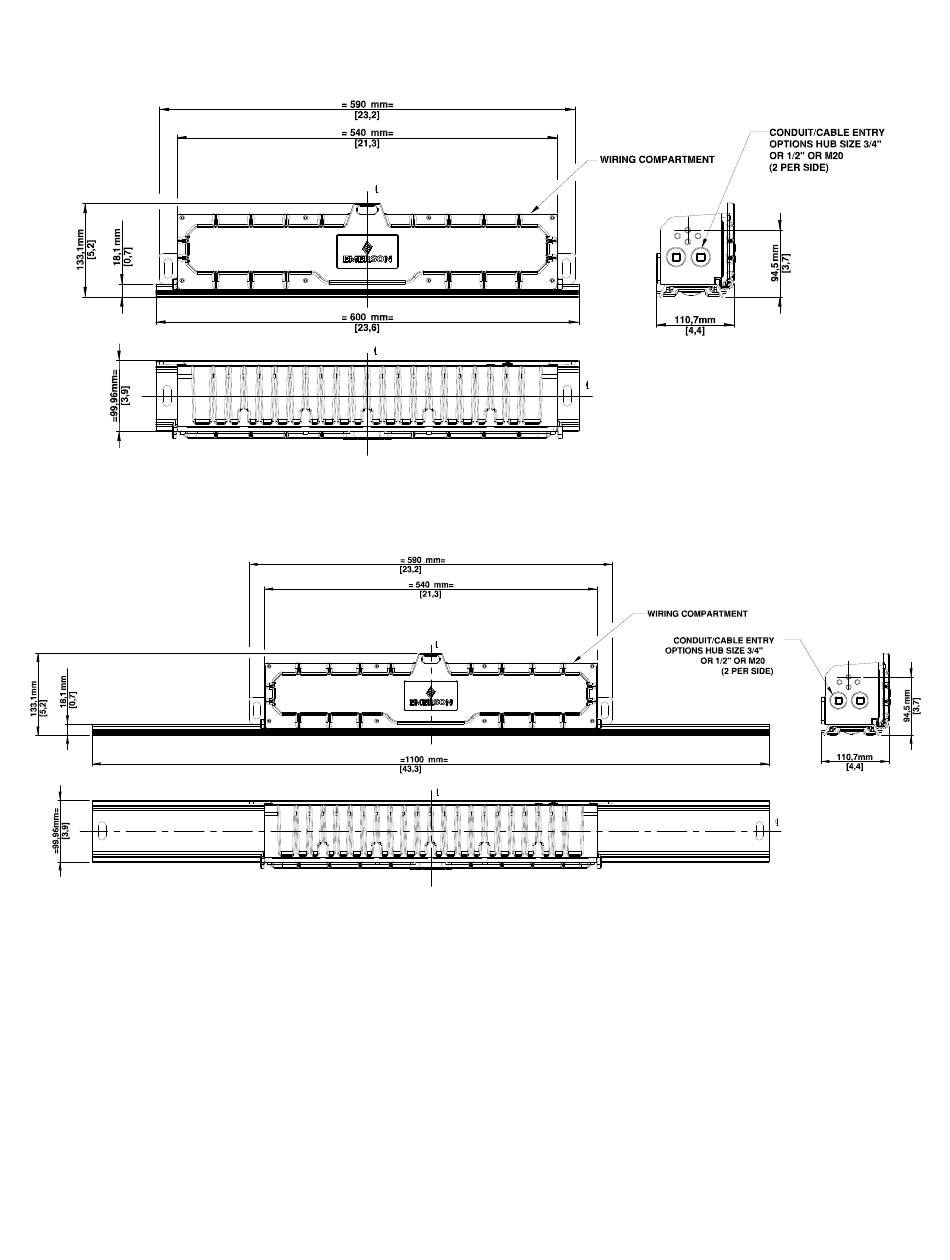

LUMINAIRE DIMENSIONS
FIGURE 1: RIGMASTER 2 FT. LUMINAIRE WITH EMERGENCy BATTERy BACkUP
FIGURE 2: RIGMASTER 4 FT. LUMINAIRE WITH EMERGENCy BATTERy BACkUP
General Mounting Instructions
1. Make sure power is disconnected before installing the luminaire.
2. Determine appropriate mounting distance between mounting holes for your application.
3. Use bolts (not supplied) appropriate for the structural support member.
4. Secure luminaire to structural support element having through holes that can handle the weight of the luminaire in accordance with
local building code and all other code requirements.
5. Tighten the bolts to secure the luminaire in place.
