Emergency Duration Setting
The Rigmaster LED Luminaire with Emergency Battery Backup can be configured for two levels of emergency backup based on the
fixture's duration setting of either 90 minutes or 180 minutes. The default duration setting can be identified by the character on the part
number as show in the example below.
For RM********H*** character H indicates a 90-minute setting.
For RM********E*** character E indicates a 180-minute setting.
To change the fixture's emergency duration setting from 90 minutes to 180 minutes, follow the steps given below:
1. Make sure power is disconnected before servicing the luminaire.
2. Open luminaire by loosening the eight captive screws. Allow the cover to swing open, enabling access to the wiring compartment.
see Figure 5/Figure 6.
3. Disengage duration (Yellow) wire connected with VBATT+ (Red) wire from terminal.
4. Insert and torque VBATT+ (Red) wire into the terminal.
5. Disengage VBATT- (Black) wire from terminal.
6. Insert duration (Yellow) wire with VBATT- (Black) wire into the terminal and torque it. For details follow Wiring diagram as applicable.
7. Tighten the eight captive screws by applying a torque of 2.25 N.m (20 Lb.in) using the sequence shown as in Figure 11. Make sure
wires do not pinch between cover and wiring compartment when closing.
8. Apply AC power to the unit. LED indicator should flash green.
9. The emergency duration setting of the luminaire has been changed from 90 minutes to 180 minutes.
Appleton • 1.800.621.1506 • www.appletonelec.com

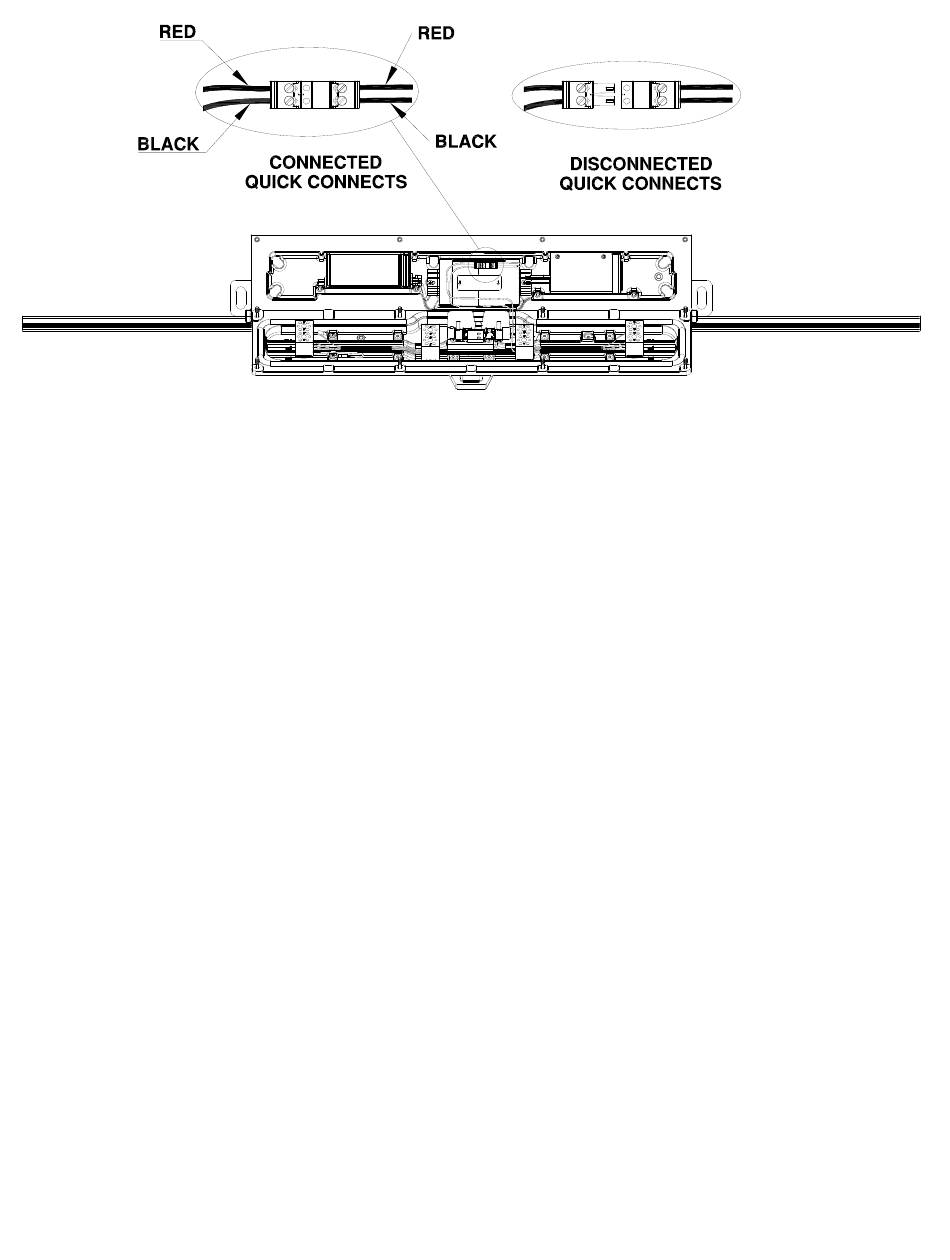

FIGURE 15: LUMINAIRE VIEWS (DISCONNECTION METHOD)
