Description

Pos: 82 /Technische Dokumentation/Betriebsanleitung/Beschreibung/Beschreibung @ 0\mod_1427795115728_370.docx @ 26937 @ 1 @ 1
3
Description
Pos: 83 /Technische Dokumentation/Betriebsanleitung/Beschreibung/Multi/VW61.21.021 @ 4\mod_1449665620869_0.docx @ 58343 @ @ 1
Pos: 84 /Technische Dokumentation/Allgemeine Module/Abbildung @ 1\mod_1430211005604_370.docx @ 29221 @ @ 1

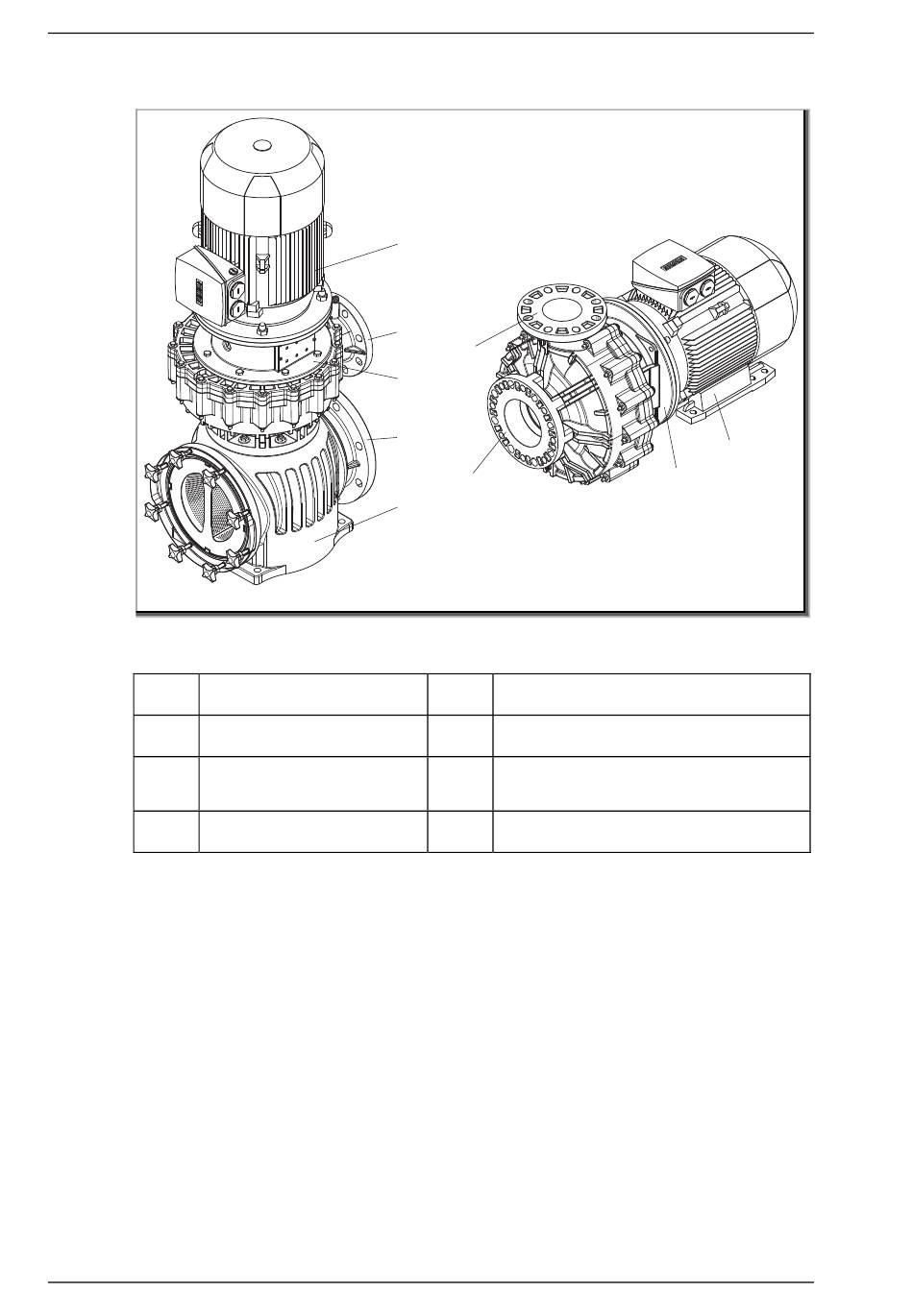

Fig. 1
Pos: 85 /Technische Dokumentation/Betriebsanleitung/Beschreibung/Komponententabelle/Komponententabelle - Multi @ 4\mod_1449223775565_370.docx @ 54483 @ @ 1
A
Normblock Multi
(1)
Suction discharge
(3)
Motor
(5)
Motor lantern
Pos: 86 /Technische Dokumentation/Betriebsanleitung/Beschreibung/Funktion/Funktion - Multi @ 4\mod_1449223843122_370.docx @ 54499 @ 2 @ 1
3.1

Function

The pump draws the swimming pool water in via a shut-off valve
in the suction line and suction discharge (1). A strainer basket is
integrated in the filter housing (4) of the BADU Block Multi which
filters out rough impurities. The water is pumped to the filter unit
via the discharge outlet (2) and a shut-off valve in the pressure
side. The drive shaft in the motor (3) is connected to the pump
shaft. The motor (3) is connected to the pump with the drive
lantern (5).
Pos: 87 /Technische Dokumentation/Allgemeine Module/#### Seitenumbruch #### @ 0\mod_1426069111812_0.docx @ 891 @ @ 1
16 EN
(3)
(2)
(2)
(5)
(1)
(1)
(4)
B
B
(2)
(4)
(5)
A
BADU Block Multi
Pressure discharge
Filter housing with strainer
basket
(3)
VW61.21.021
04/2016
