Chapter 4

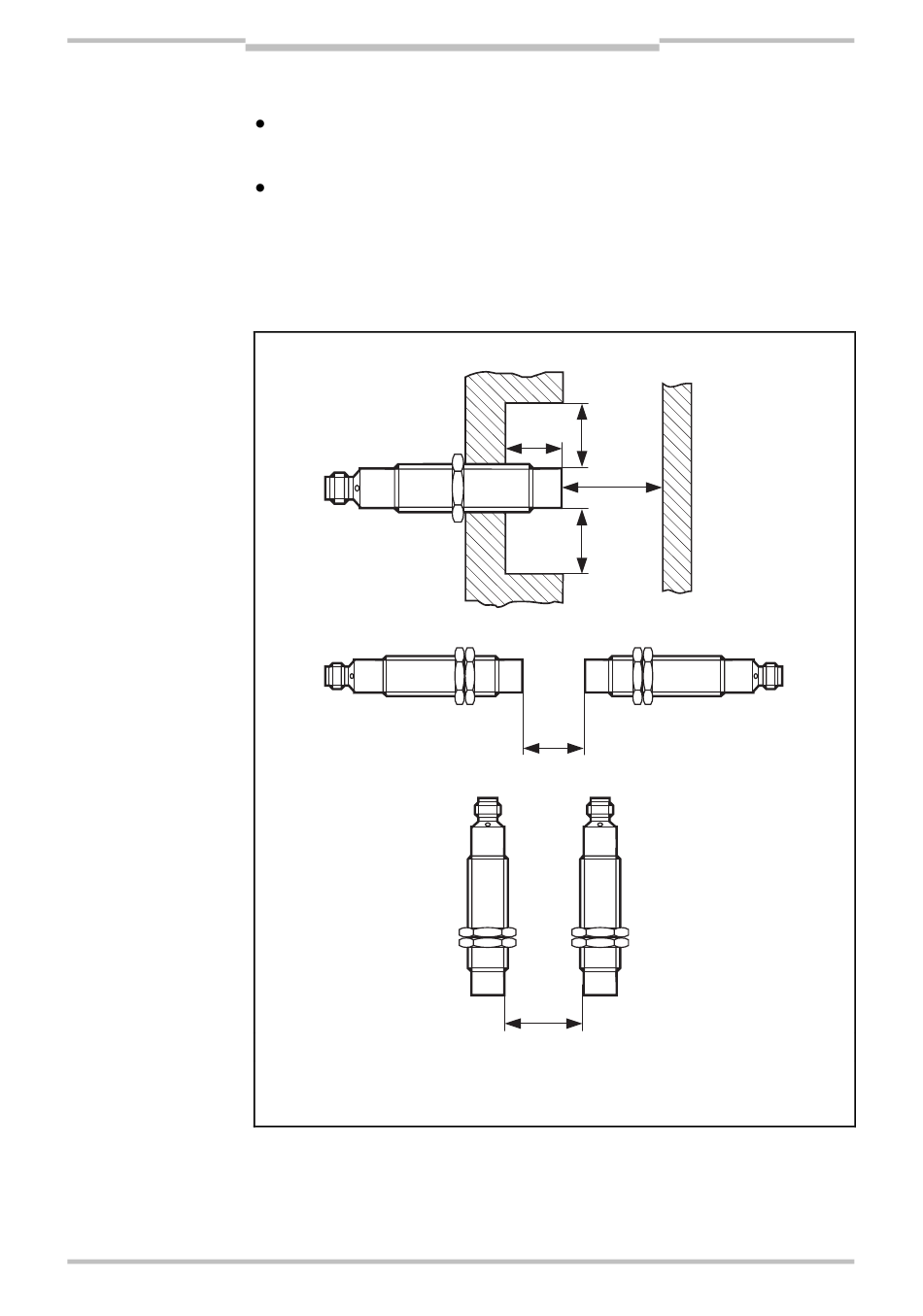

Fig. 3:
Minimum distances
on mounting the
IN30-E0407K
safety switch
68
© SICK AG • Industrial Safety Systems • Germany • All rights reserved
Mounting
Pay attention to safe switch off distance, enable zone
and near range (cf. Tab. 1, Tab. 2, Tab. 3 or Tab. 4).
The minimum distances stated in Fig. 3 to Fig. 6 for
neighboring sensors and sensors mounted opposite
as well as the minimum distances to fixed parts of
the plant and walls must be observed.
12
12
18
12
48
24
All dimensions in mm
8014173/YIJ3/2016-04-18
Subject to change without notice
Operating instructions
IN3000 Direct
