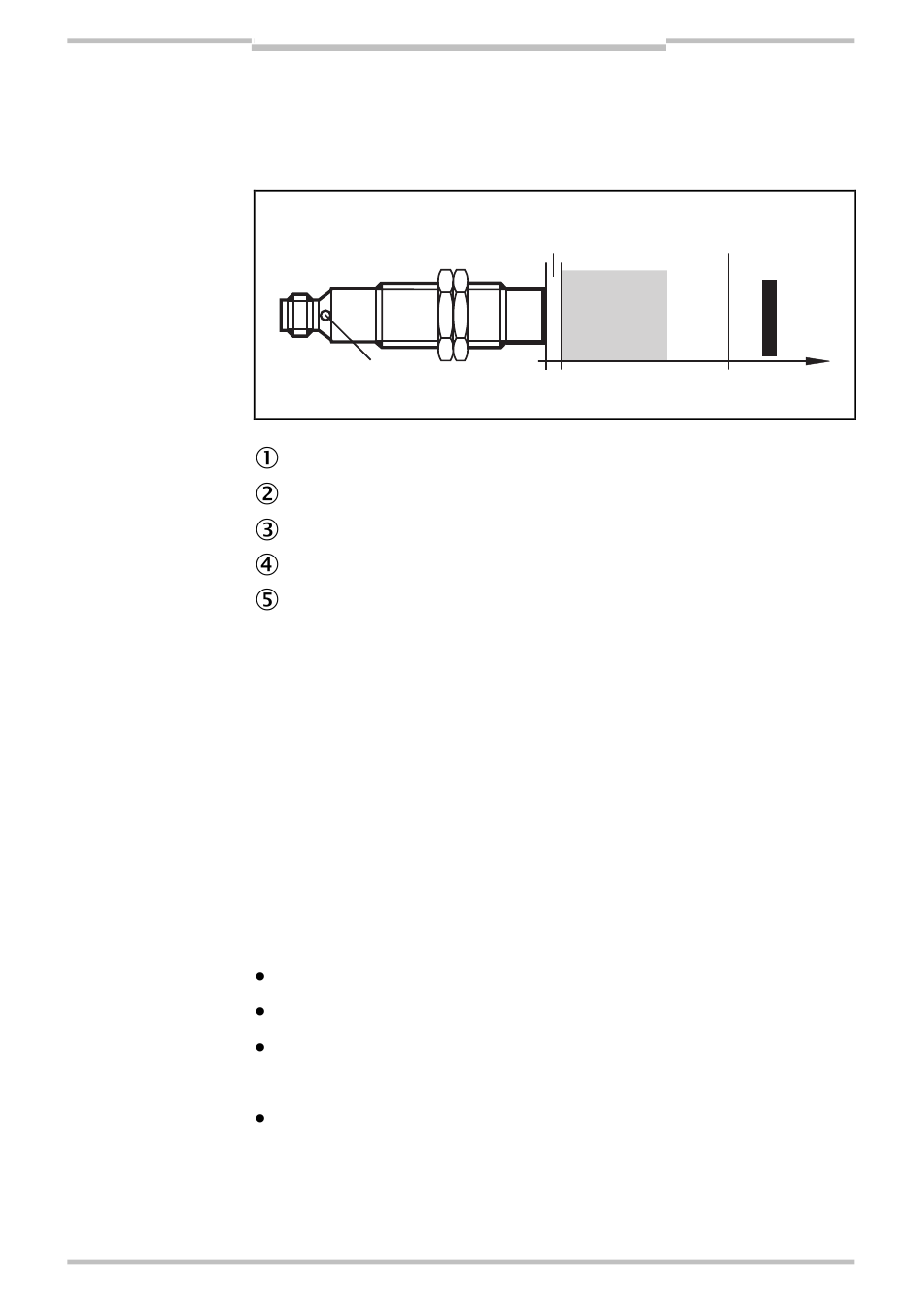

Fig. 1:
Schematic figures
of the zones for the
IN3000 Direct
safety switch
(example
IN30-E0305K)
8014173/YIJ3/2016-04-18
Subject to change without notice
Product description
3.3 Enable zone and safe switch off
distance
1
LEDs
Legend:
Safety switch
Near range zone
Enable zone
Safe switch off distance s
Actuating element (metal)
The outputs of the safety switch are only enabled on
actuation within the enable zone.
The enable zone and the near range zone are depen-
dent on the type of safety switch as well as the mate-
rial and shape of the actuating element. The use of
different actuating elements (material, shape) will
result in different enable zones.
Typically at an ambient temperature of 20 °C with
non-flush mounting of the safety switch using a
standard plate made of FE360 (= ST37K) according to
EN 60947-5-2:
(12 x 12 x 1 mm) for IN30-E0407K,
(24 x 24 x 1 mm) for IN30-E0305K
(45 x 45 x 1 mm) for IN30-E0208K
or, for flush installation of the safety switch:
(18 x 18 x 1 mm) for IN30-E0306K
with different materials the following enable zone is
achieved:
