6.6. Leading/trailing edge phase control

DIP-Bank 4
Function selection switch 4
Setting options:
Leading edge phase control: OFF (standard)
Trailing edge phase control: ON
For activating the leading/trailing edge
phase control, additional settings are
required, see 6.1. Operating mode on page
18.
Function is available in Normal mode.
When the leading edge phase control mode is (see 6.2. Operating type (infrared
heater/infrared plate) on page 19) selected, there is the option of selecting
between leading/trailing edge phase control.

6.7. HV input (enable input)

DIP-Bank 4
Function selection switch 6
Enable input (ON position)
The controller can only be switched on if
230 VAC is applied at the HV input. This
function can be used with a vending ma-
chine for example.
See also 5.4. Connecting the HV input (en-
able input) on page 16.

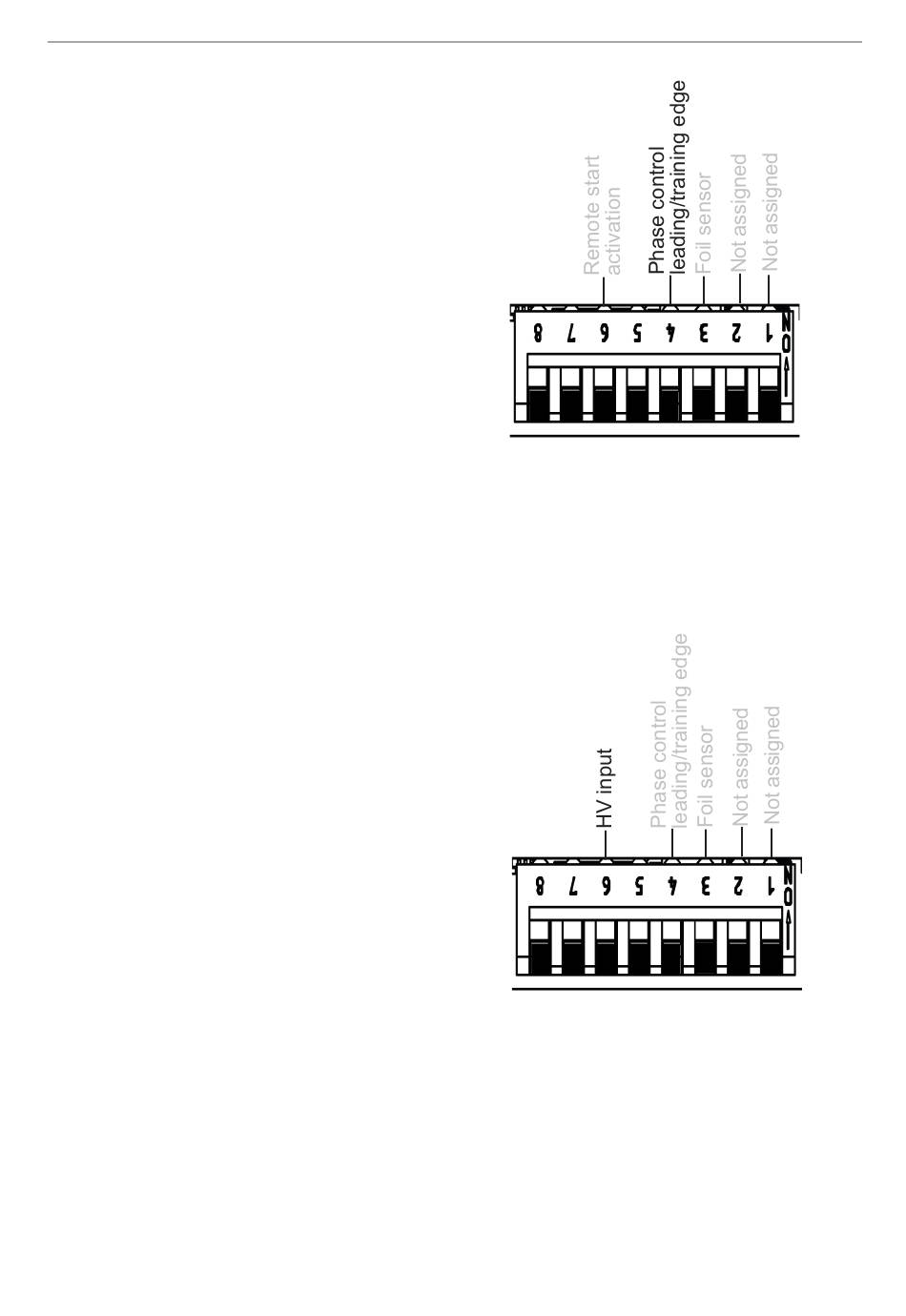

Fig. 16: Leading/trailing edge
phase control
Fig. 17:HV input
