Installation instructions, for professionals only
6.2. Operating type (infrared heater/
infrared plate)
DIP-Bank 1
Function selection switch 3 and 4
The following settings are possible
for the infra-controller:
Function selection
switch
Switch
Leading edge phase
control
Half-wave control
ATTENTION!
The specified output limits may not be exceeded!
To enable optimum functionality, we recommend the leading edge phase control
function for infrared heaters with visible light. The half-wave control function is
suitable for infrared plates and infrared heaters without visible light.
Switching: Switching the infrared heater or infrared plate with a heating capacity
of max. 3.5 kW. No dimming function.
Leading edge phase control: Controlling (dimming) the infrared heater/infrared
plate is possible in 5 levels up to 350 W.
Half-wave control: Controlling (dimming) the infrared heater/infrared plate is
possible in 5 levels up to 1.3 kW.
3
4
OFF
OFF
ON
OFF

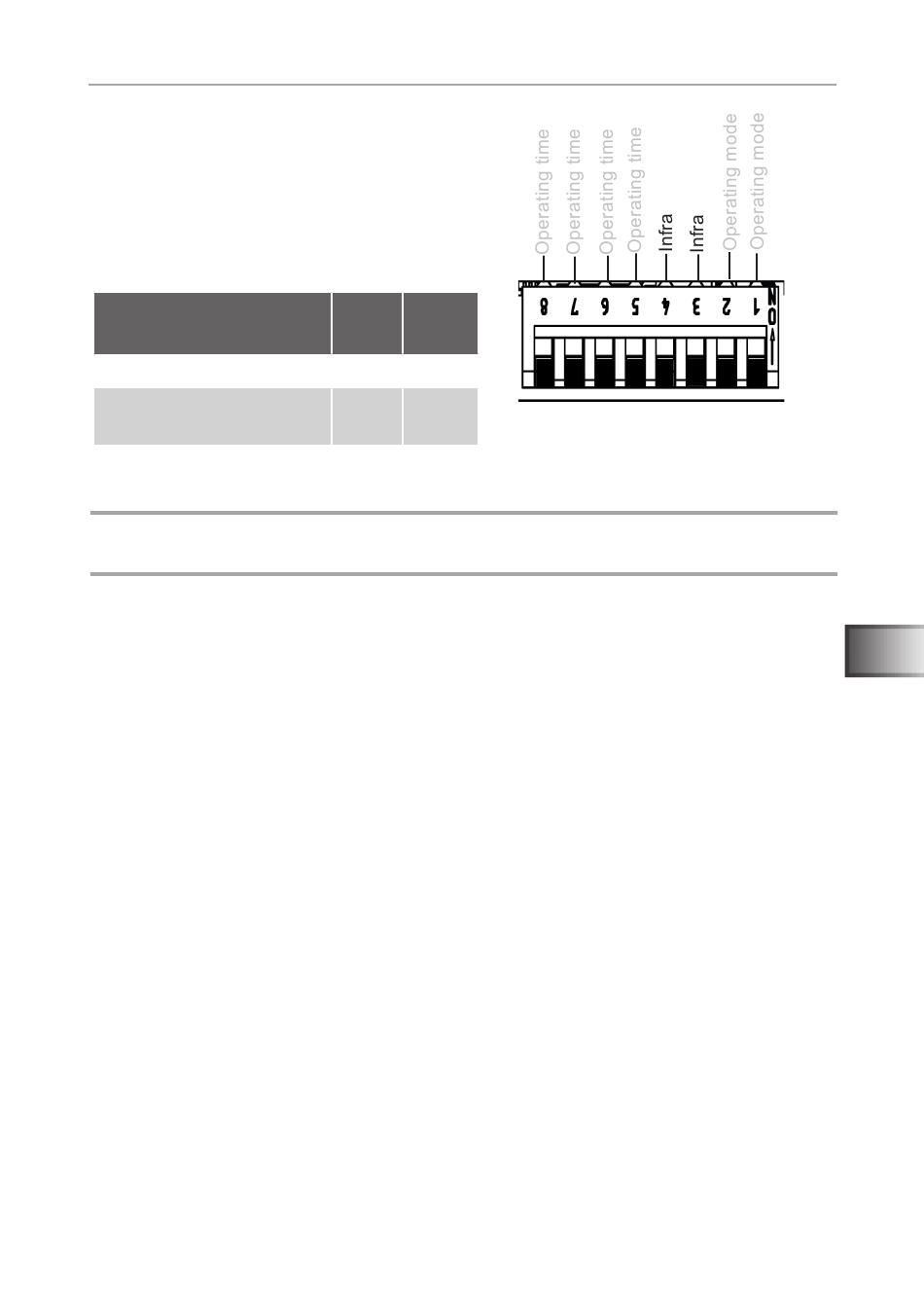

Fig. 10: Infrared operating type
OFF
ON
p. 19/32
ON
OFF
