Installation instructions, for professionals only
Time
2 hours
3 hours
4 hours
5 hours
6 hours
12 hours
18 hours
24 hours

6.4. Foil sensor

DIP-Bank 4
Function selection switch 3
If an infrared plate is connected to the infra-
red output, the WC4-IRF-F foil sensor must
be used. The foil sensor must be activated
according to the adjacent figure by putting
switch 3 to ON.
Function selection switch
5 6
OFF OFF
ON ON
OFF ON
ON OFF
OFF OFF
ON OFF
OFF ON
ON ON

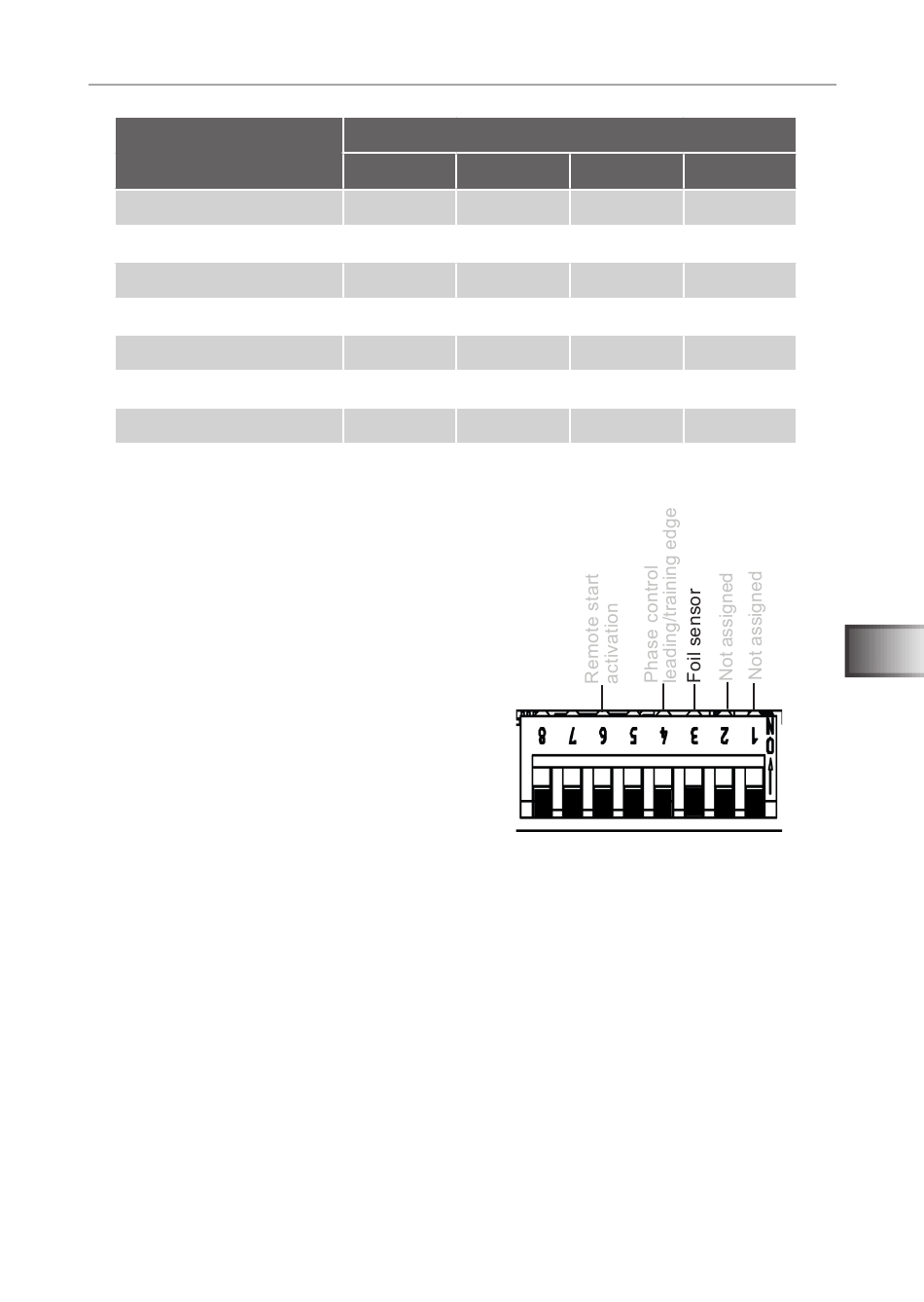

Fig. 12: Foil sensor
p. 21/32
7 8
OFF ON
ON OFF
ON OFF
ON OFF
OFF OFF
OFF OFF
OFF OFF
OFF OFF
EN
ON
OFF
