Main "Controller" Function

Access to all controllers is gained via the main
"Controller" function key in the footer.
After pressing the key an overview menu appears first
that shows the available controllers.
Then open the controller operating images by pressing
the functional element of the individual controller.

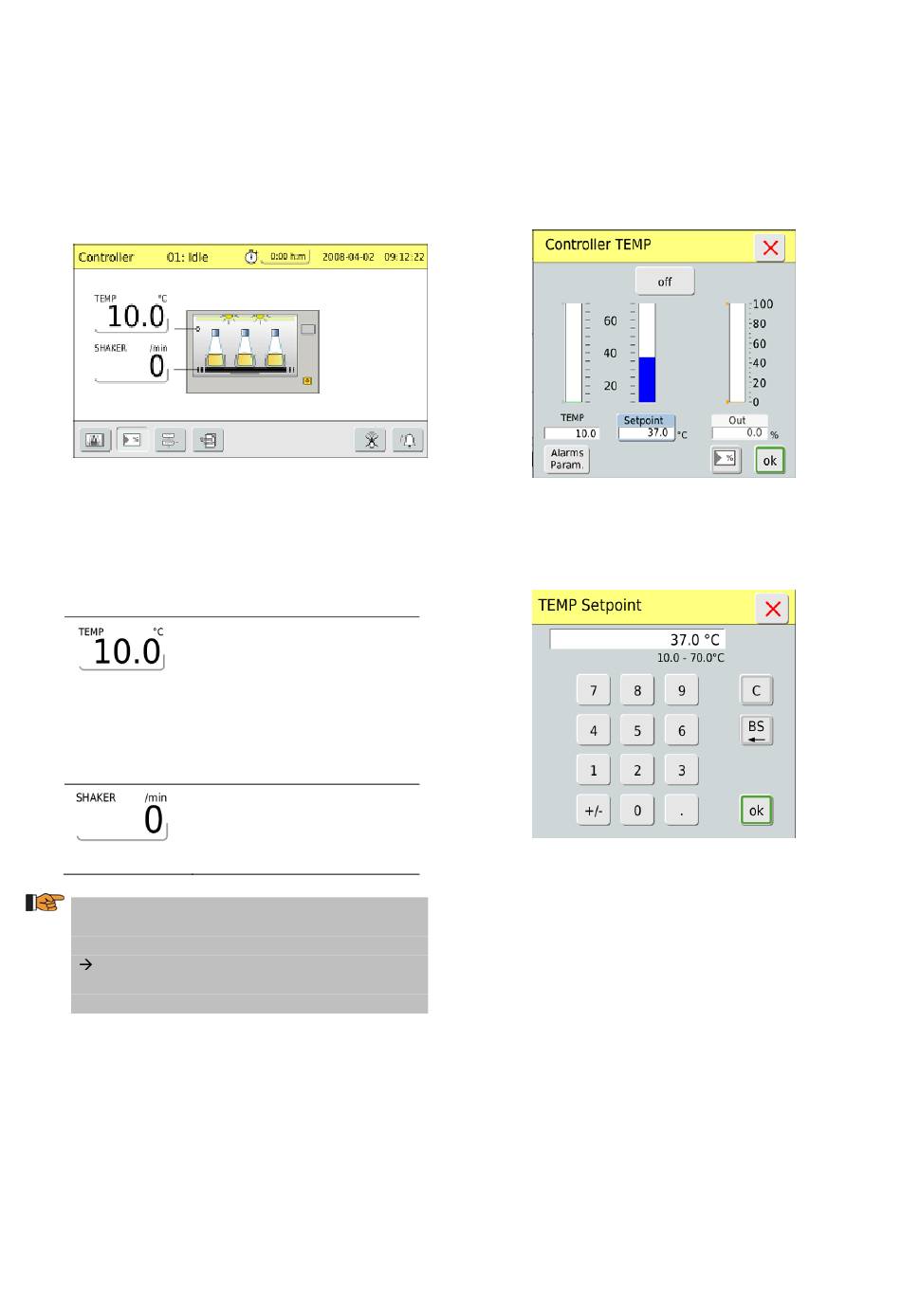

Fig. 26: Main "Controller" menu of the
CERTOMAT® Tplus
6.1 Functional Elements of the Main "Controller"
Menu
Key, Symbol
A system configuration takes into account suitable
operating values and necessary limitations of the
controller for the controlled terminal
[ Configuration documentation]. At the same time
each controller is parameterized in such a way that it
enables stable control.
Meaning, Use
• Set value controller for
temperature in the
CERTOMAT® Tplus
− Works with the temperature
of the CERTOMAT® Tplus as
control input, measured with
the sensor that is mounted in
the air stream
• Set value controller for
CERTOMAT® Tplus
− Controller for shaking speed
of CERTOMAT® Tplus
6.2 Access to the Controller
Example: Temperature Controller

6.2.1 Entering the Set Temperature Value

•
Press the "TEMP" key.
The input menu of the temperature controller appears.
Fig. 27: "Controller TEMP" menu
•
Press the "Setpoint" key.
The "TEMP Setpoint" input menu appears.
Fig. 28: "TEMP Setpoint" menu
•
Enter new set value via the screen keypad and confirm
with "ok".
