Installation instructions, only for experts
Mounting of the bench sensor
The bench sensor (2-wire) is attached to the ceiling above the rear recliner
bench (see Figure 6). Drill through the cabin ceiling with the aid of an 8 mm drill
in accordance with Figure 5. Install the sensor cables through the shaft which
has just been drilled.
TIP!
Ensure that no cable is damaged when feeding in the sensor cables.
Bench sensor
Heater sensor

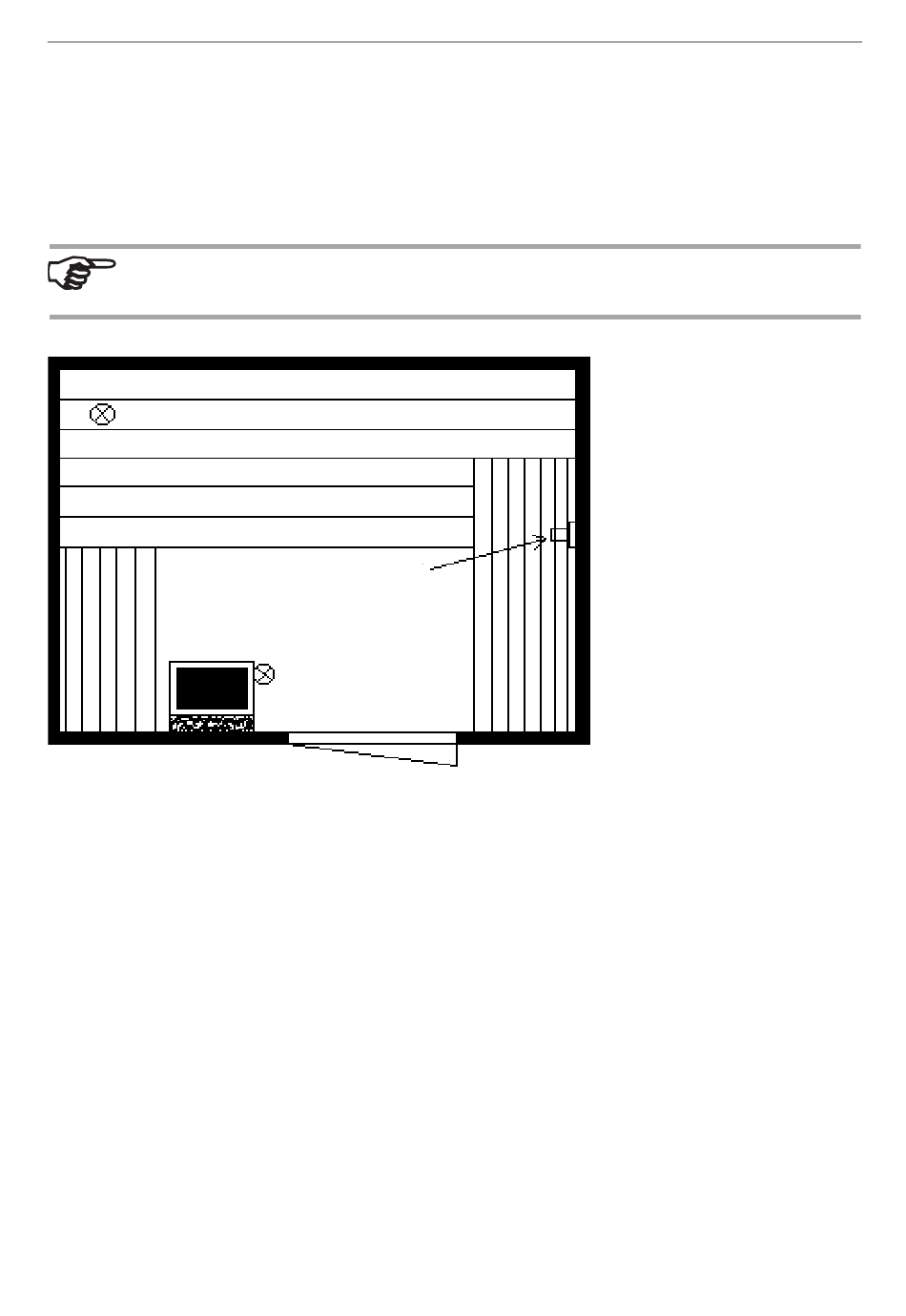

Figure 6: mounting bench sensors
Humidity sensor
