Installation instructions, only for experts

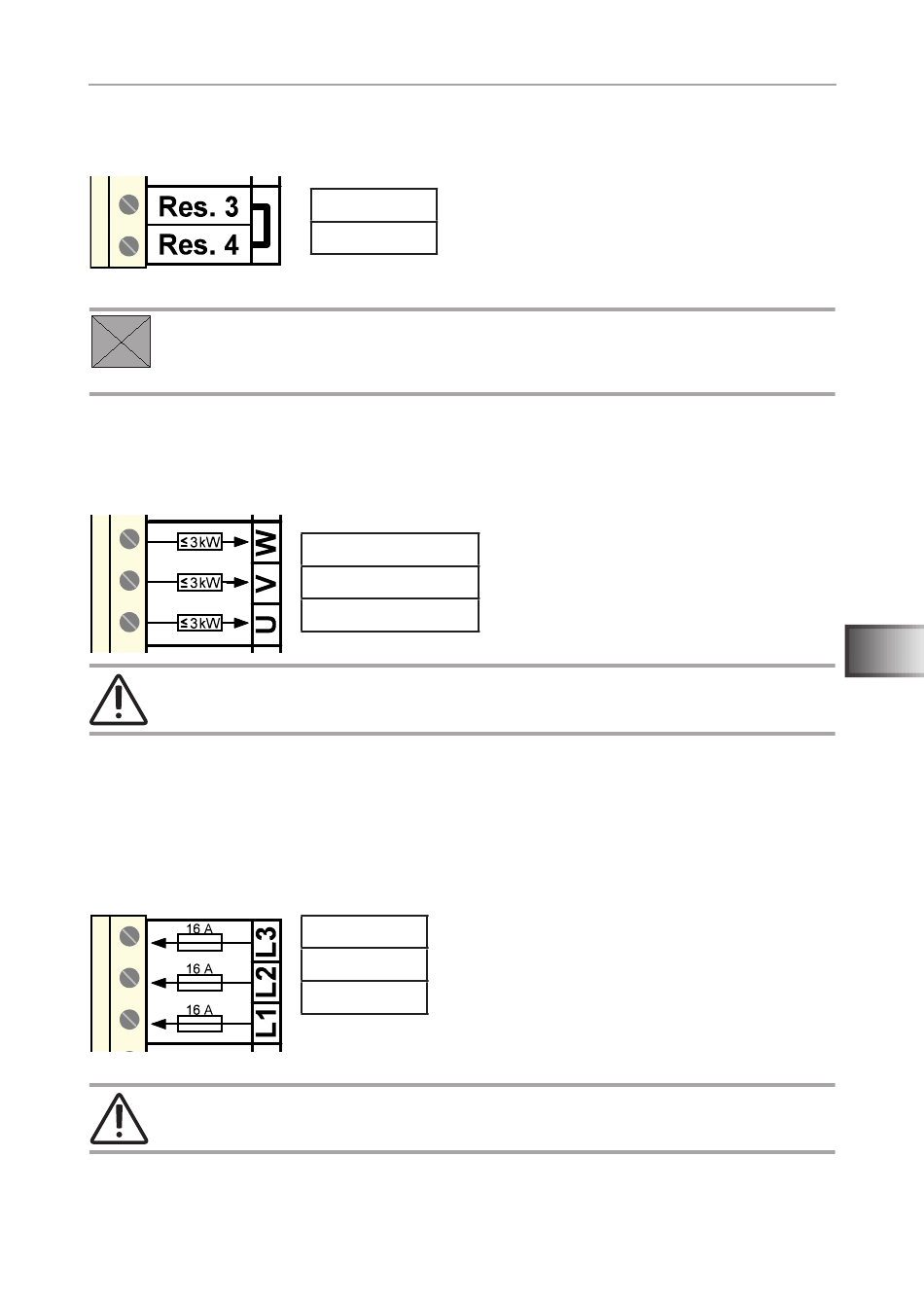

3. Res.3 und Res.4
CAUTION!
The mains phase L1 is looped through here. A clamp must be placed
between the terminals for this purpose
4. Connect sauna heating device
These connections must be used for the 5-pole heater cable. Contact the earth
wire and the neutral wire with the collective terminals.
CAUTION!
Feed the cable through the construction screw joint provided for.
5. Network connection control device; heater supply cable
These connections must be used for the 5-pole mains connection. The supply
cable is directed from the building's electricity supply via an all-pole main switch.
Contact the earth wire and the neutral wire with the collective terminals.
CAUTION!
Feed the cable through the construction screw joint provided for.
Res. 3
Res. 4
L3 switched
L2 switched
L1 switched
L3
L2
L1
