tage of CO , the mass flow of smoke
2
at nominal load, the temperature of
the smoke, the roughness of the inter-
nal wall, and the effect of gravity on
the draught pressure, which must
take into account the external tempe-
rature and the altitude.
2.6

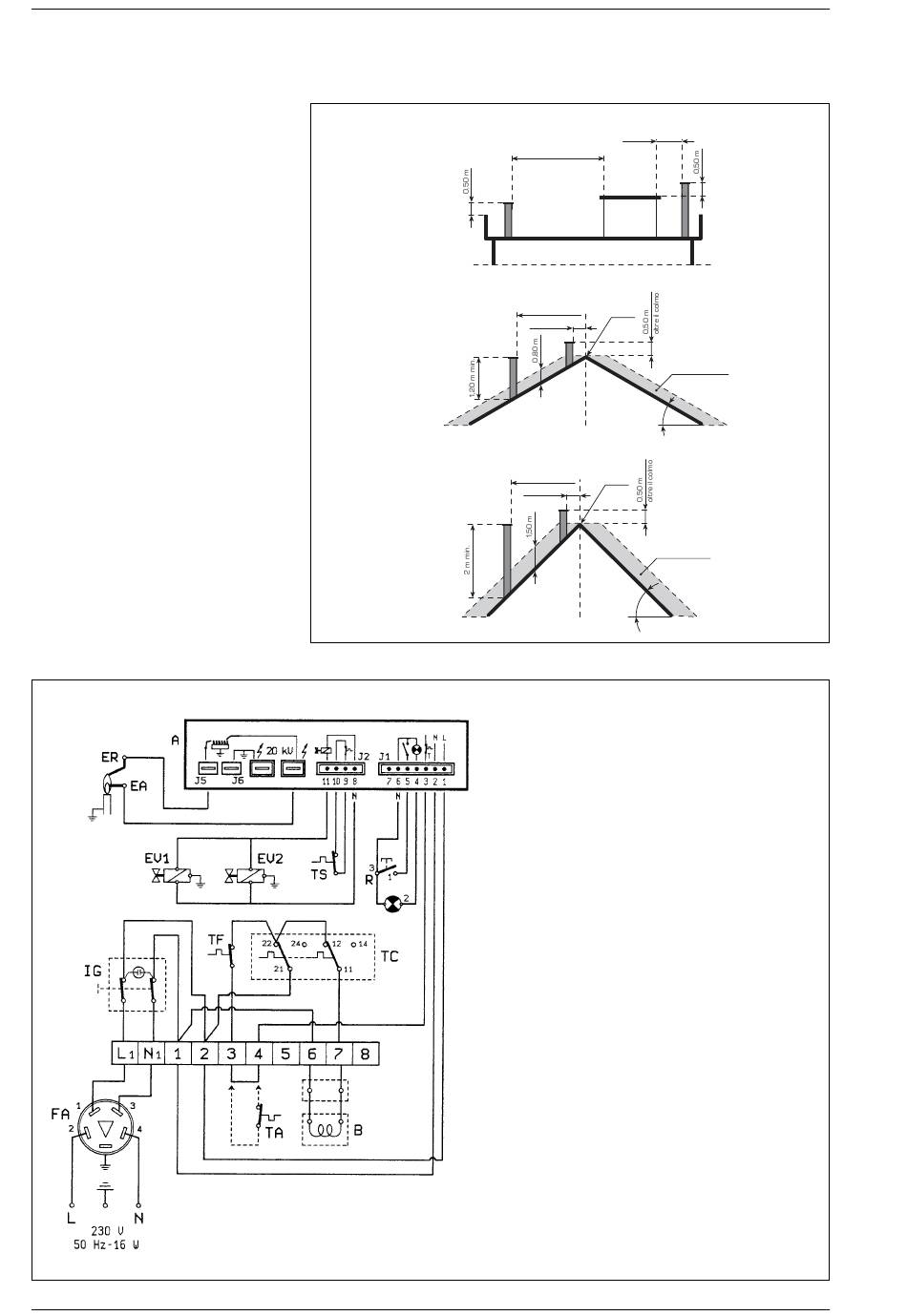

ELECTRICAL CONNECTION

The boiler is supplied with an electric
cable. Should this require replace-
ment, it must be purchased exclusi-
vely from SIME. The electric power
supply to the boiler must be 230V -
50Hz single-phase through a fused
main switch, with at least 3 mm spa-
cing between contacts. The room stat
must be class II as specified by stan-
dard EN 60730. 1 (clean contact).
NOTE: Device must be connected to an
efficient earthing system. SIME decli-
nes all responsibility for injury or dama-
ge to persons, animals or things, resul-
ting from the failure to provide for pro-
per earthing of the appliance. Always
turn off the power supply before doing
any work on the electrical panel.
Flat roof
Tetto piano
> 5 m
Tetto a 30 °
30° roof
> 1,30 m
≤ 1,30 m
45° roof
Tetto a 45°
> 1,50 m
Colmo
≤ 1,50 m
KEY
IG Main switch
TC Regulation stat with double contact
EA Ignition electrode
EV2 Gas valve coil
EV1 Gas valve coil
TA Room stat
R Lock out reset button
B Coil assembly
ER Sensing electrode
TS Safety stat
A FM 11 control box
TF Smoke stat
FA EMC filter
NOTA: The room stat must be connec-
ted to the terminals 3-4.
≤ 5 m
Volume
tecnico
Colmo
Zona di reflusso
30°
Zona di reflusso
45°
Fig. 4
Fig. 5
