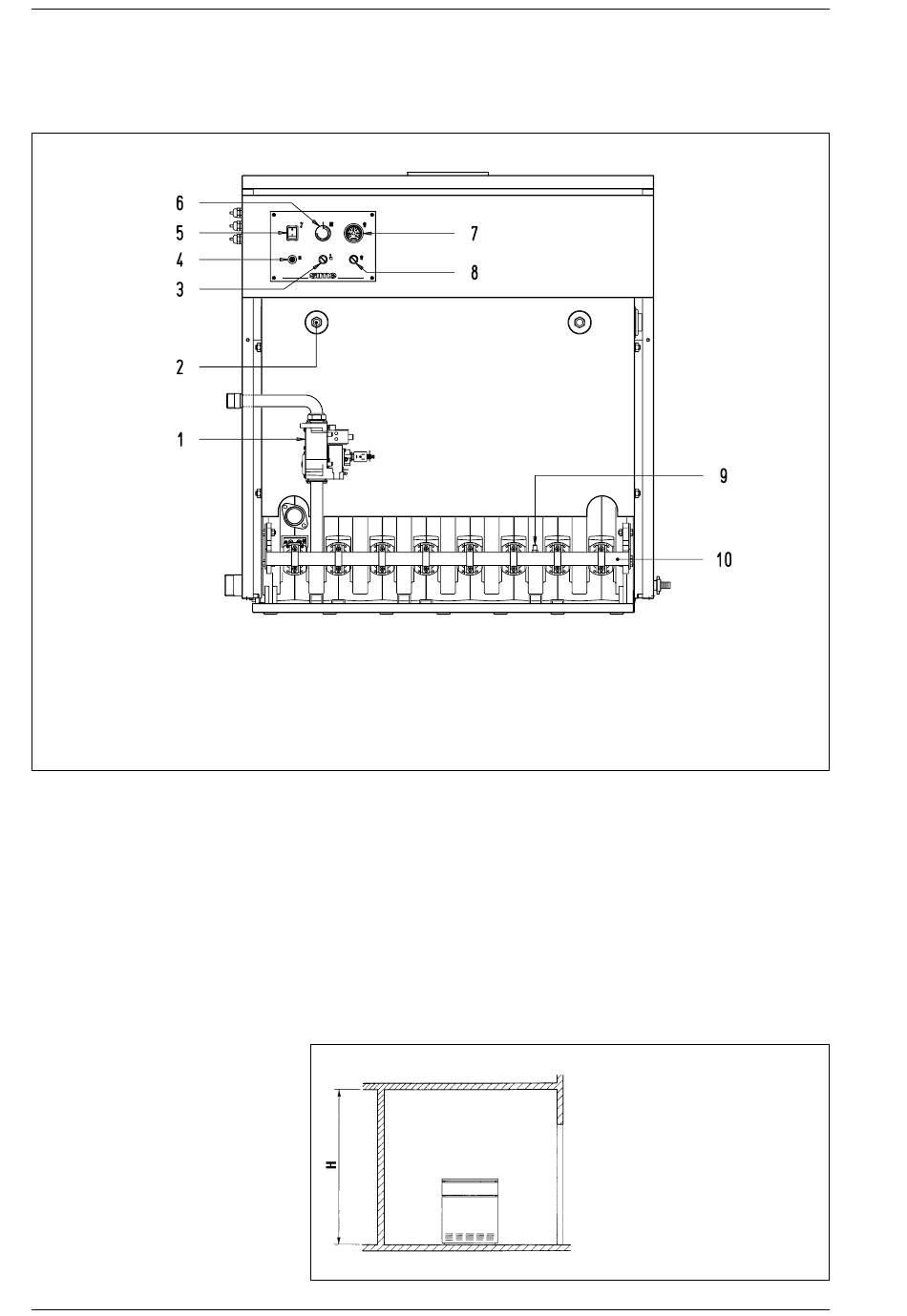

1.4 MAIN COMPONENTS
KEY
1 Gas valve with coil assembly
2 1/2" bulb holder
3 Safety stat
4 Lock out reset button
5 Main switch
2

INSTALLATION

The boiler must be installed in a fixed
location and only by specialized and
qualified firms in compliance with all
instructions contained in this manual.
Furthermore, the installation must be
in accordance with current standards
and regulations.
2. 1 BOILER ROOM
The "RMG" boilers with a rating of
more than 35 kW must be equipped
with a technical room whose dimen-
sions and requirements correspond to
the current safety standards.
The minimum height of the boiler room
must comply with what is indicated in
6 Regulation sta with double contact
7 Thermometer
8 Smoke stat
9 1/8" pressure test point
10 Burner manifold
fig. 3 in relation to the overall thermal
capacity.
The minimum distance between the
walls of the room and the external
points of the boiler (right, left side,
rear) must not be less than 0.60 m. In
H in relation to the overall thermal
capacity:
– not greater than 116 kW: 2.00 m
– greater than 116 kW and less
than 350 kW: 2.30 m
– greater than 350 kW and less
580 kW: 2.60 m
– greater than 580 kW: 2.90 m
