Example:
In order to reach a flashing frequency of
250 Hz (period of oscillation 4 ms) and flash
duration of 30 % of the flashing period, the
following conditions must be fulfilled:
The frequency of the PWM signal
must be set to 250 Hz.
A 0 signal must be active at pin no.
2 during 30 % of the PWM signal's
oscillation period and a 1 signal must
be active at pin no. 2 during 70 % of
the PWM signal's oscillation period,
see Tab. 1. This corresponds to a duty
cycle of 70 %.

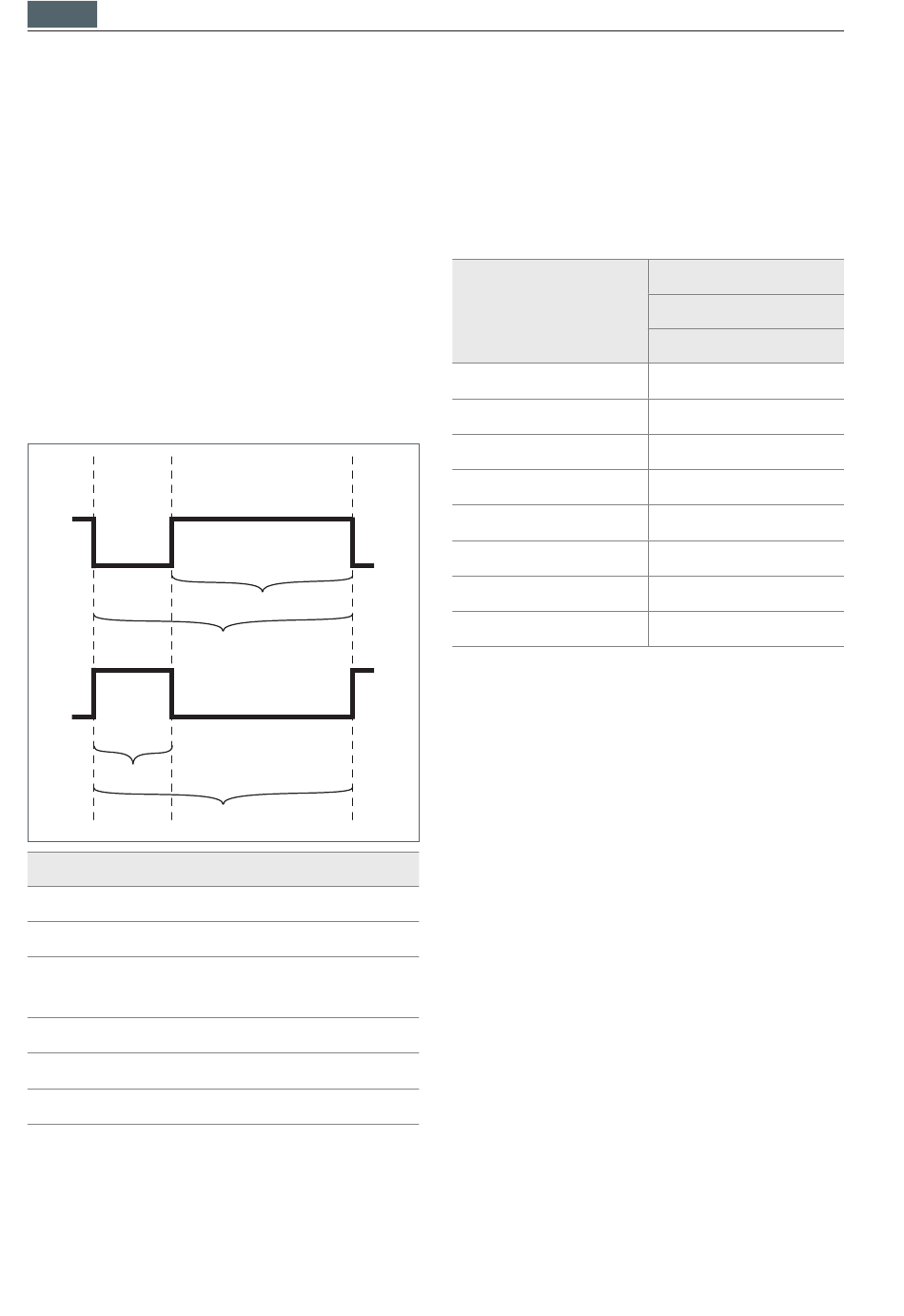

30 %
A
B
E
No. Designation
A
PWM signal
B
Luminaire
C
Period of oscillation of the PWM
signal
D
Duty cycle
E
Flash duration
F
Flashing period
Tab. 8: Flashing, example.
26
70 %
D
C
F
6.5
Adjusting the RGB+W
Precondition: The luminaire is equipped
with a plug with the pin assignment Type E.
Luminaires provided with the function
RGB+W can adopt different light colours
depending on the digital switching signal on
the pins no. 2, no. 4 and no. 5, see Tab. 9.
Light colour
White
Red
Yellow
Green
Blue
Violet
Turquoise
Off
Tab. 9: Adjustable light colours.
X To adjust the desired light colour, apply
the corresponding signal to the respec-
tive pins, see Tab. 9.
Control
Signal
Bit: 0
1
2
Pin: 2
4
5
0
0
0
1
0
0
0
1
0
1
1
0
0
0
1
1
0
1
0
1
1
1
1
1
