Technical data

12. Technical data
NOTE: The data given on the rating plate
attached to the rear side of the luminaire
is applicable.

12.1 Electrical values

Designation
Voltage range
SELV version
Power consumption The power con-
Tab. 11: Electrical values.

12.2 Classifications

Designation
Protection class
SELV version
Protection class
Operating mode
Maximum permis-
sible ambient tem-
perature
Tab. 12: Classifications.
Value
M12-A-4 Type A
M12-A-5 Type B
M12-A-4 Type C
20 – 28 V DC
M12-A-5 Type E
22 – 26 V DC
sumption is spec-
ified on the rating
plate of the lumi-
naire.
Value
III
IP 67
Continuous oper-
ation
The maximum per-
missible ambi-
ent temperature
is specified on the
rating plate of the
luminaire.

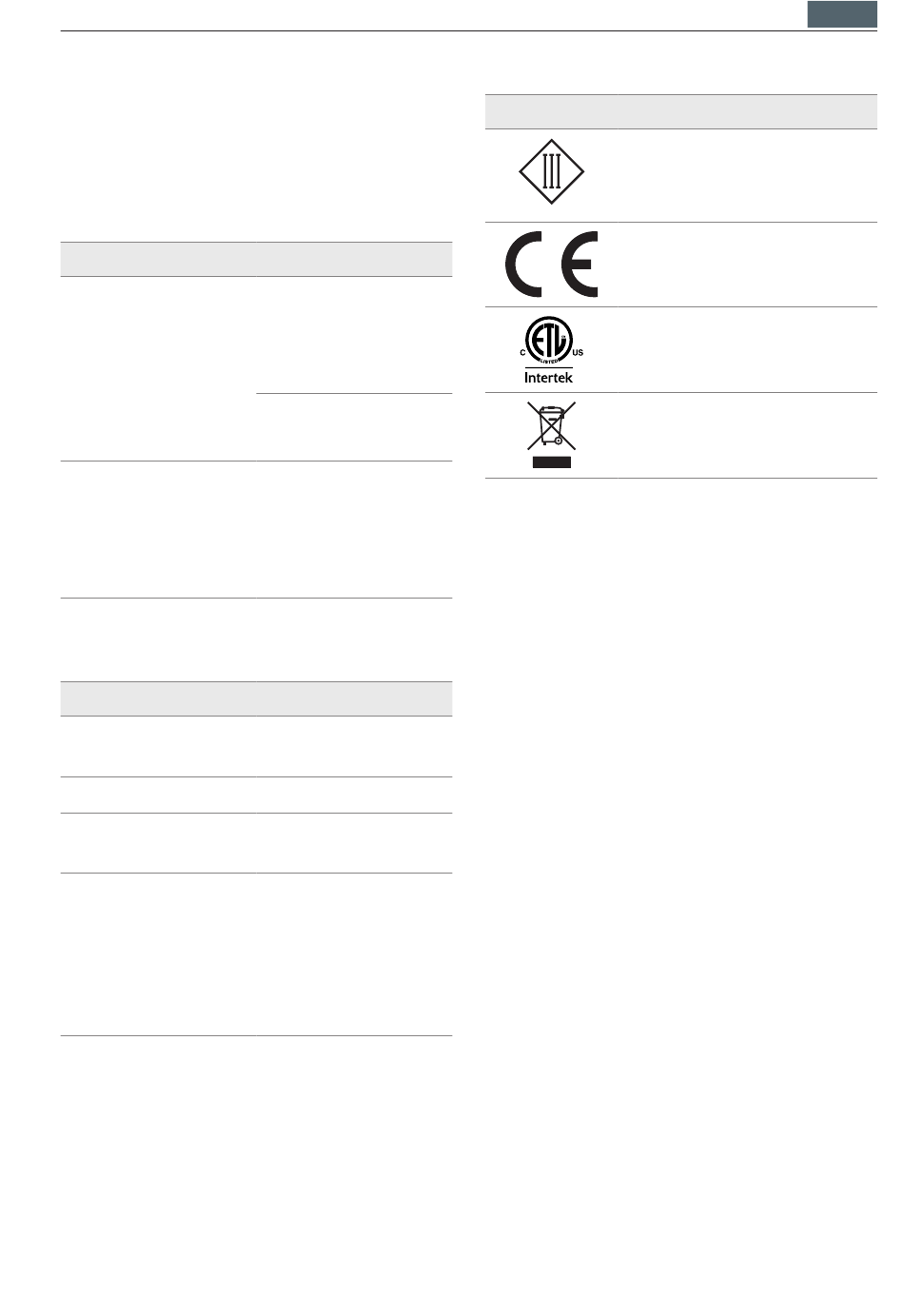

12.3 Symbols

Symbol
Designation
Protection class III
Operation with safety
extra low voltage (SELV)
CE conformity mark
ETL Approval
Disposal in accordance
with the European WEEE
Directive
Tab. 13: Symbols.
ENG
29
