Cart Assembly - WAGNER LineCoat SP Serie Manuel D'utilisateur

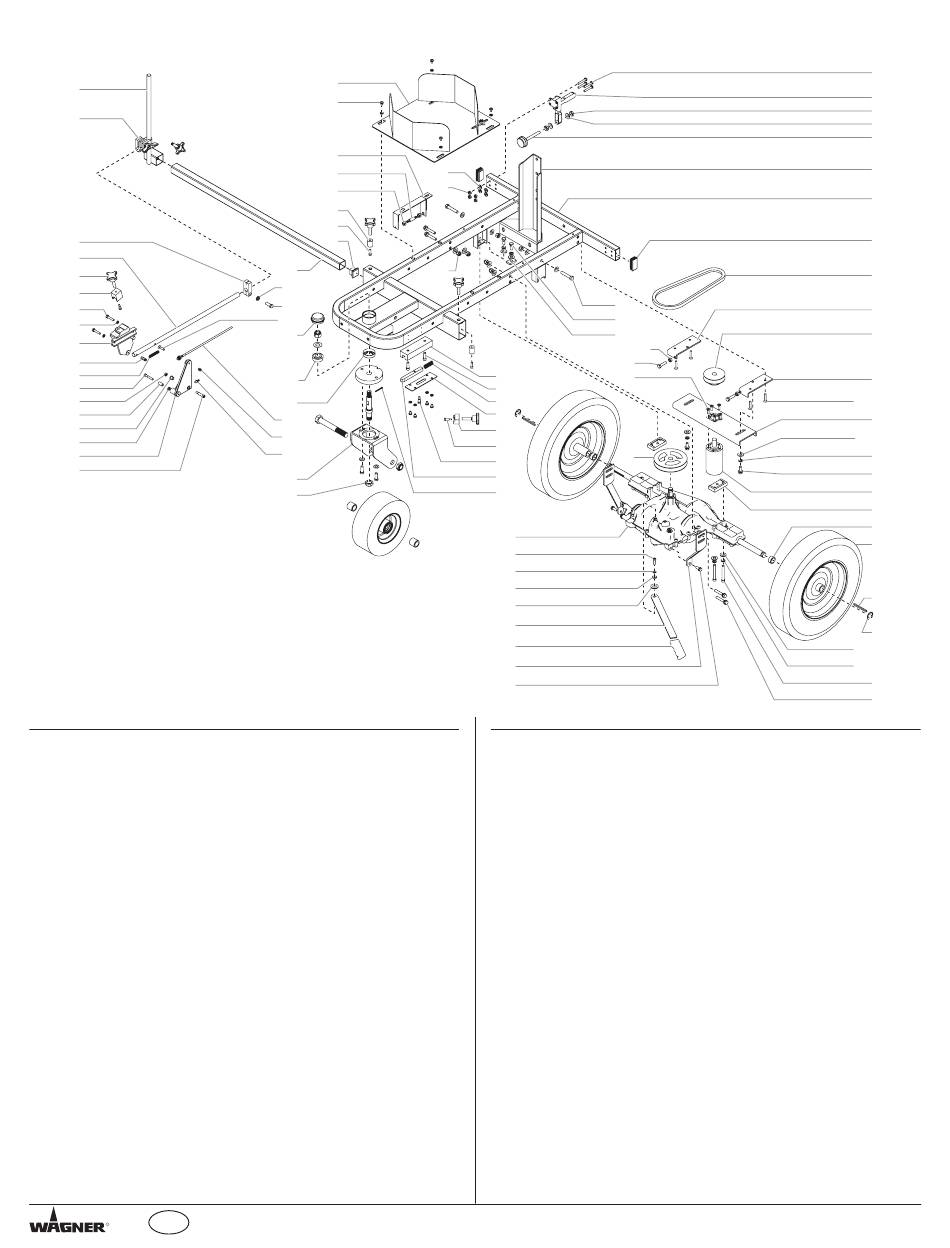

Cart Assembly (P/N 0555694)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Item Part # Description
1 0509232 Slide tube weldment .................................1
2 0509261 Clamp assembly .......................................1
3 0509208 Cable mounting clamp ..............................1
4 0509207 Support arm ..............................................1
5 0555317 Clamping knob..........................................5
6 0555324 Clamp block ..............................................1
7 0509775 Screw ........................................................2
8 0509772 Lock washer, 1/4" ...................................10
9 0555737 Gun holder ................................................1
10 0509242 Spring holder (long) ..................................1
11 0555781 Return spring ............................................1
12 0509776 Shoulder screw .........................................1
13 0509773 Jam nut .....................................................1
14 0509214 Sleeve bearing..........................................1
15 0509213 Flange bearing..........................................2
16 0509774 Jam nut .....................................................1
17 0509202 Lever .........................................................1
18 0509778 Shoulder screw .........................................1
19 0509229 Gun support bar........................................1
20 0509292 Lock washer .............................................1
21 0509286 Screw ........................................................1
22 0509220 Screw ........................................................1
23 0509263 Dust cap ...................................................1
24 0509260 Taper bearing ...........................................2
25 0509262 Taper bearing seal....................................1
26 0509275 Gun cable .................................................1
27 0509241 Spring holder (short) .................................1
28 0509210 Grease fitting ............................................1
29 0509250 Caster assembly .......................................1
30 0509251 Lock nut, 3/4" ............................................1
31 0555738 Bucket holder............................................1
R
GB
31
32
33
39
34
40
35
36
37
38
19 41
20
21
22
23
24
25
26
27
28
29
30
Quantity
60
61
62
35
63
42
64
43
44
45
46
47
65
48
49
50
51
52
53
54
55
56
57
58
59
Item Part # Description
32 0509219 Screw ........................................................8
33 0555695 Cable bracket ...........................................1
34 0555696 Brake cable connector ..............................1
35 0555697 Jam nut .....................................................4
36 0509230 Clamp rod .................................................2
37 0509243 Screw ........................................................2
38 0509231 Plastic end cap .........................................1
39 0509246 Flat washer ...............................................4
40 0509245 Lock nut, 1/4" ............................................7
41 0509551 Lock nut, 5/16" ..........................................4
42 0509268 Guide block...............................................1
43 0509222 Socket screw ............................................2
44 0509228 Lock spring ...............................................1
45 0509234 Block cover ...............................................1
46 0509254 Block .........................................................1
47 0555326 Shoulder screw .........................................2
48 0509236 Shoulder screw .........................................1
49 0509272 Caster lock pin ..........................................1
50 0509226 Cotter pin ..................................................1
51 0555607 Transaxle ..................................................1
52 0509638 Screw ........................................................1
53 0509772 Lock washer .............................................1
54 0509246 Flat washer ...............................................1
55 0509958 Flat washer ...............................................1
56 0555698 Shift lever ..................................................1
57 0555699 Lever grip ..................................................1
58 0555701 Transaxle support bracket ........................2
59 0555702 Screw ........................................................2
60 0509845 Screw ........................................................2
61 0509615 Screw ........................................................2
62 0555710 Mounting plate spacer ..............................1
20
66
67
68
69
70
71
72
73
74
75
76
77
22
78
69
79
80
81
82
83
84
85
86
71
81
87
88
Quantity
